Backup Lamp: Service and Repair

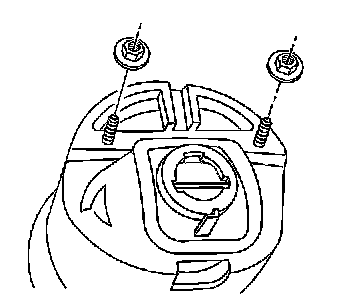

BACKUP LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the backup lamp socket.

2. Remove the 2 nuts that retain the backup lamp to the fascia.
3. Remove the back up lamp from the fascia.

INSTALLATION PROCEDURE

1. Install the back up lamp to the fascia.
2. Install the 2 backup lamp retaining nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 10.0 N.m (88 lb in).

3. Install the backup lamp socket.
