Brake Light Switch: Service and Repair



STOP LAMP SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left sound insulator.

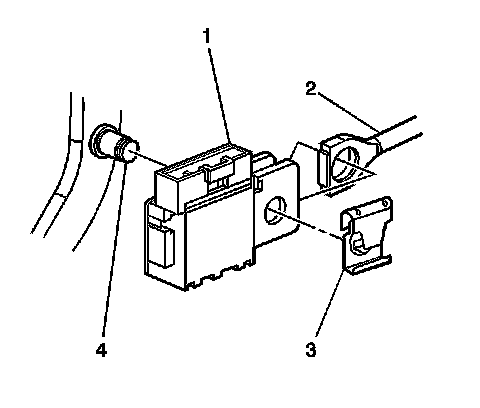

2. Remove the pushrod retainer (3) from the brake pedal pin (4).
3. Remove the stop lamp switch (1) and the pushrod (2) from the brake pedal pin (4).
4. Disconnect the stop lamp switch (1) electrical connector.
5. Remove the stop lamp switch from the vehicle.

INSTALLATION PROCEDURE




1. Install the electrical connector to the stop lamp switch (1).
2. Position the stop lamp switch (1) on the pushrod (2) and install the assembly on the brake pedal pin.
3. Install the pushrod retainer (3) to the brake pedal pin (4). The retainer will snap into place.
4. Install the left sound insulator.
