Fog/Driving Lamp: Service and Repair



FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the fog lamp bulb and socket.




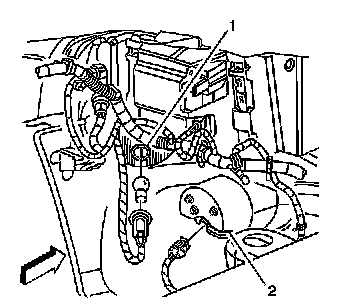

2. Remove the 3 nuts that retain the fog lamp to the fascia (2).
3. Remove the fog lamp from the fascia.

INSTALLATION PROCEDURE




1. Install the fog lamp to the fascia (2).
2. Install the 3 fog lamp retaining nuts.

NOTE: Refer to Fastener Notice .

Tighten the nuts to 10.0 N.m (88 lb in).

3. Install the fog lamp bulb and socket.
4. Aim the fog lamp(s). Refer to Fog Lamp Aiming Procedure .
