Multifunction Turn Signal Switch Housing Replacement



Multifunction Turn Signal Switch Housing Replacement
Removal Procedure





1. Disable the SIR system. Refer to SIR Disabling and Enabling in Restraint Systems.

Caution: Refer to SIR Caution in Service Precautions.

2. Remove the steering wheel from the column.
3. Remove the ignition lock cylinder case assembly.
4. Remove the turn signal and multifunction switch assembly.

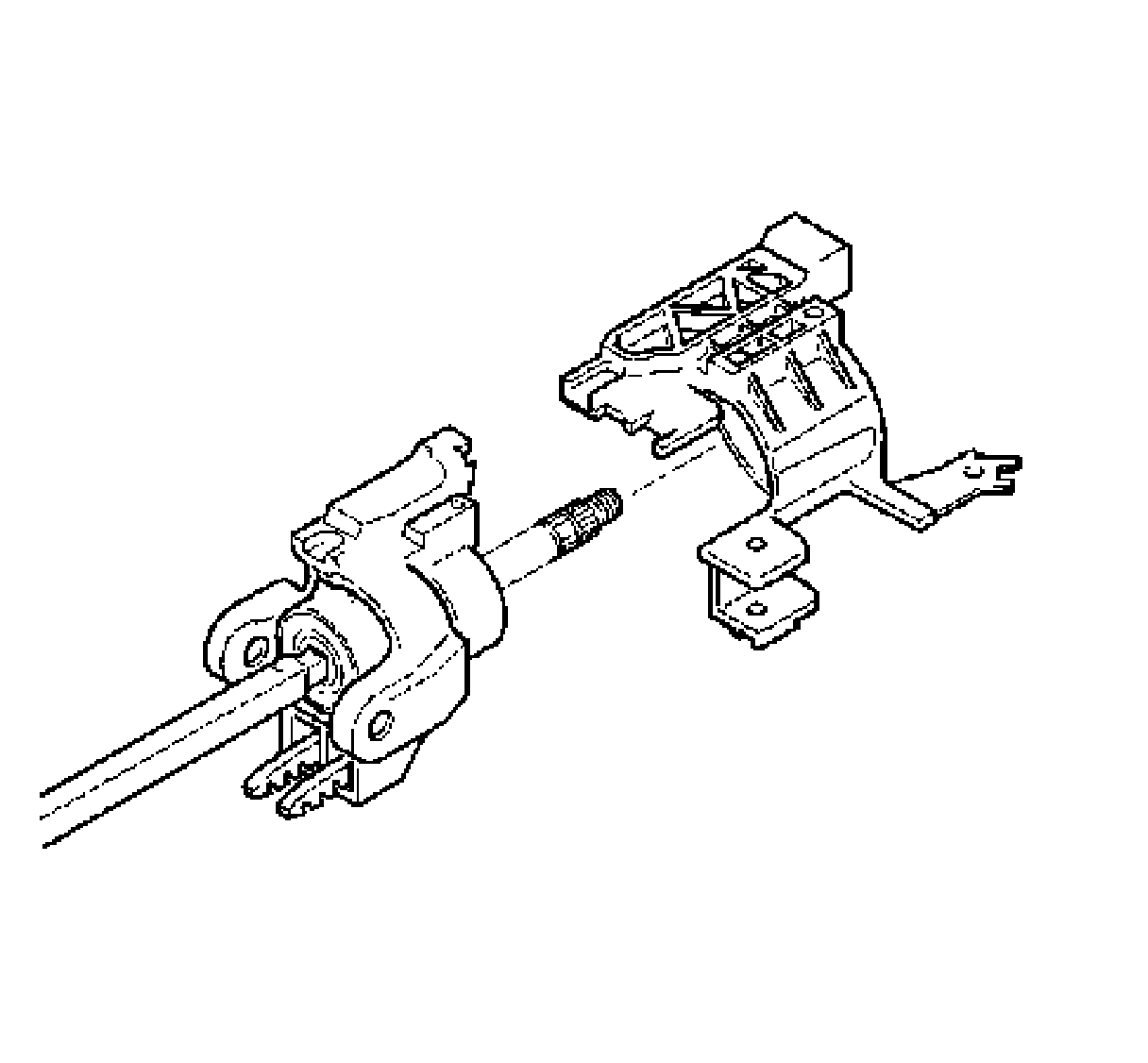

5. Slide the turn signal switch housing off of the steering column shaft assembly.

Installation Procedure





1. Slide the turn signal switch housing onto the steering column shaft assembly.

Important: The turn signal switch housing must be pressed firmly against the steering column tilt head in order for the screws from the turn signal and multifunction switch assembly screws to line up.

2. Install the turn signal and multifunction switch assembly.
3. Install the ignition lock cylinder case.
4. Install the steering wheel onto the column.
5. Enable the SIR system. Refer to SIR Disabling and Enabling in Restraint Systems.
