Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR REPLACEMENT

REMOVAL PROCEDURE

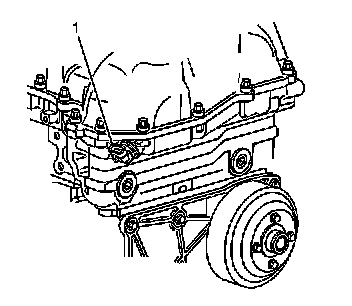

1. Remove the camshaft position (CMP) sensor electrical connector (1).
2. Remove the CMP sensor retaining bolt.

INSTALLATION PROCEDURE

1. Install the camshaft position (CMP) sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the CMP sensor bolt to 10 N.m (89 lb in).

2. Install the CMP sensor electrical connector (1).
