Fuel Tank Pressure Sensor: Service and Repair

FUEL TANK PRESSURE SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the fuel tank.
2. Disconnect the fuel tank pressure harness connector.

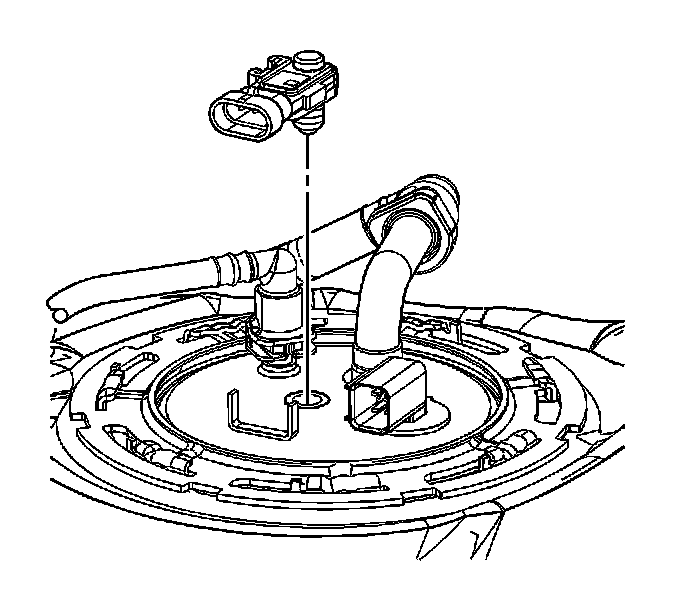

3. Remove the fuel tank pressure sensor.

INSTALLATION PROCEDURE
1. Install the new fuel tank pressure sensor seal.

2. Install the fuel tank pressure sensor.
3. Connect the fuel tank sensor harness connector.
4. Install the fuel tank.
