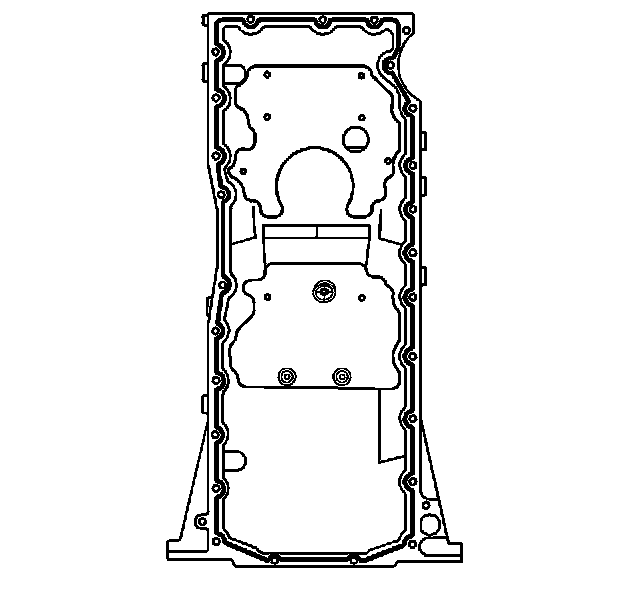

Oil Pan, Engine





Oil Pan Bolt
Ends 10 N.m (89 lb in)
Sides 25 N.m (18 lb ft)
Oil Pan Drain Plug 26 N.m (19 lb ft)
Oil Pan Nut 25 N.m (18 lb ft)
Oil Pan Stud 11 N.m (97 lb in)
