Battery Tray Replacement

BATTERY TRAY REPLACEMENT

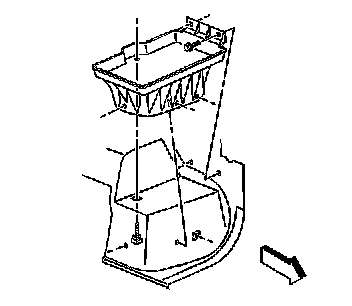

REMOVAL PROCEDURE
1. Remove the battery.

2. Loosen and remove the 5 bolts that secure the battery tray to the wheelhouse.
3. Remove the battery tray.

INSTALLATION PROCEDURE
1. Install the battery tray.

2. Install the 5 bolts to the battery tray.

Tighten the bolts to 20 N.m (15 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the battery.
