Generator Bracket Replacement

GENERATOR BRACKET REPLACEMENT

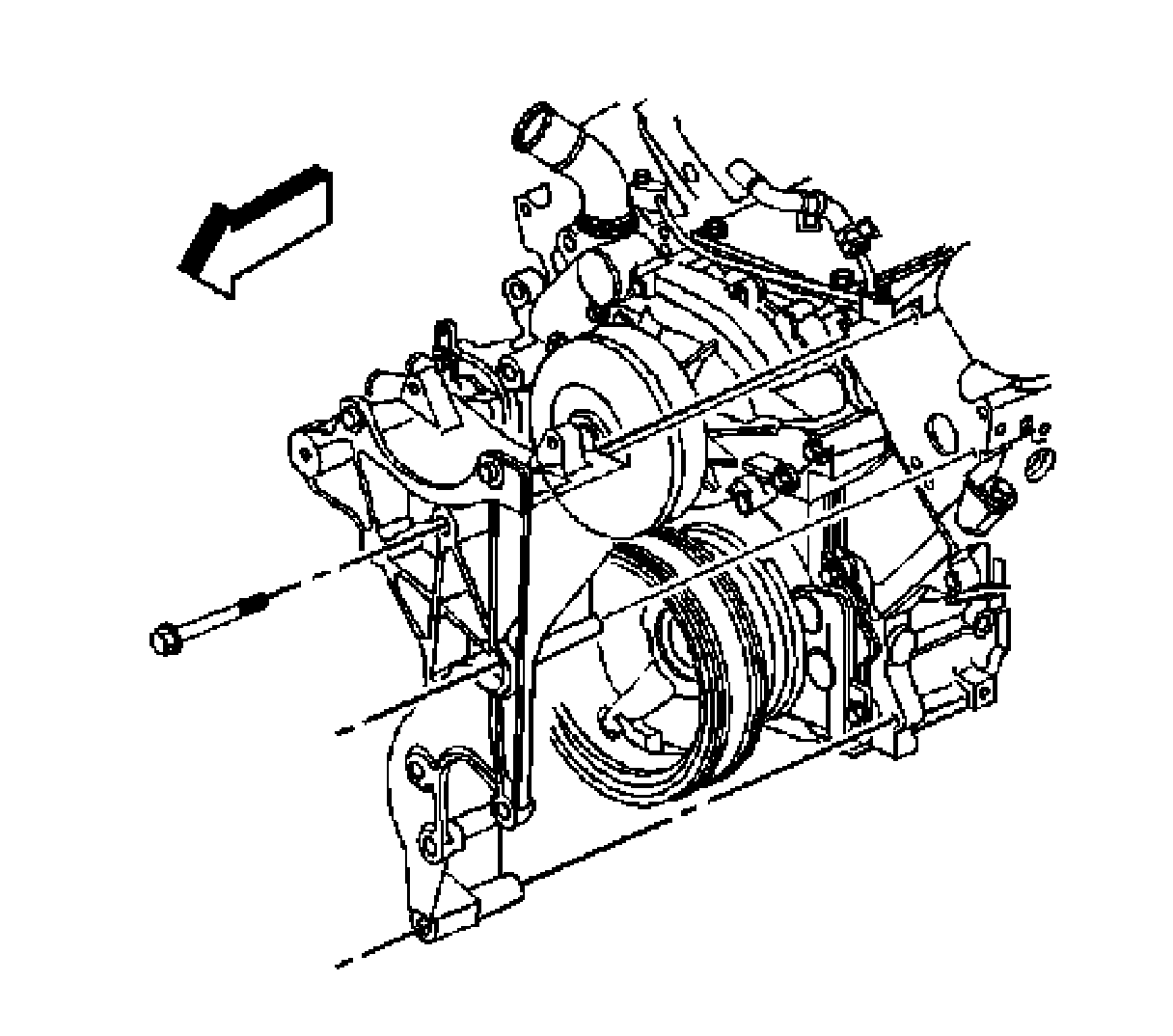

REMOVAL PROCEDURE

1. Remove the generator.
2. Remove the power steering pump.
3. Remove the generator bracket bolts.
4. Remove the generator bracket.

INSTALLATION PROCEDURE

1. Install the generator bracket.

NOTE: Refer to Fastener Notice.

2. Install the generator bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).

3. Install the power steering pump.
4. Install the generator.
