Multifunction, Turn Signal Switch Replacement

Multifunction, Turn Signal Switch Replacement

Removal Procedure





1. Disable the SIR system. Refer to SIR Disabling and Enabling in Restraint Systems.

Caution: Refer to SIR Caution in Service Precautions.

2. Remove the upper and lower trim covers.
3. Tilt the column to the CENTER position.
4. Disconnect the connectors from the turn signal and multifunction switch assembly.

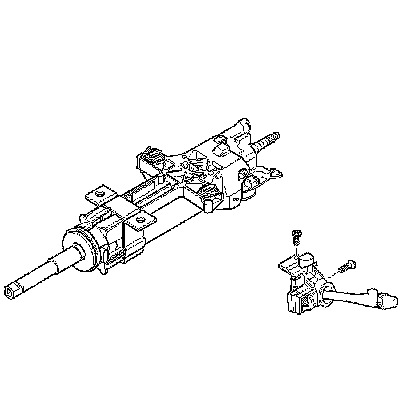

5. Remove the turn signal and multifunction switch assembly.
6. Remove 2 pan head tapping screws from the turn signal and multifunction switch assembly.

Installation Procedure





1. Install the turn signal and multifunction switch assembly.

Important: The electrical contact on the turn signal and multifunction switch assembly must rest on the turn signal cancel cam assembly.


2. Secure by using 2 pan head tapping screws.
^ Tighten the screw on the top of the column to 3 Nm (27 inch lbs.).
^ Tighten the screw on the side to 7 Nm (62 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.


3. Connect the connectors to the turn signal and multifunction switch assembly.
4. Install the upper and lower trim covers.
5. Enable the SIR system. Refer to SIR Disabling and Enabling in Restraint Systems.
