Vent Hose Replacement



Vent Hose Replacement
Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.

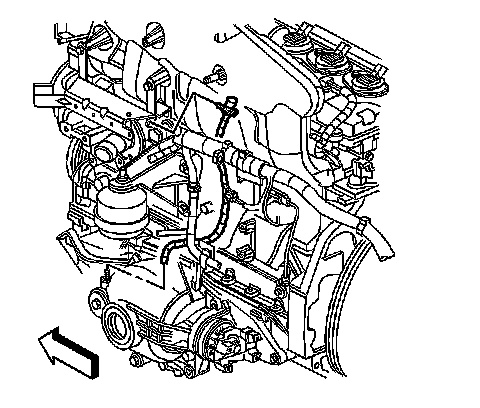

2. Remove the vent hose from the top of the differential carrier assembly.

Important: Make note of the routing in order to aid in reassembly.

3. Remove the vent hose from the clip on the engine wiring harness bracket.
4. Remove the vent hose.

Installation Procedure





1. Install the vent hose to the differential carrier assembly.
^ Route the same way as when removed.
^ Ensure that the hose is free of kinks and is routed clear of sharp objects.
^ Ensure that the vent is not plugged.

2. Install the vent hose in the clip on the engine wiring harness bracket.
3. Lower the vehicle.
