NVG 126-NP4 - Transfer Case

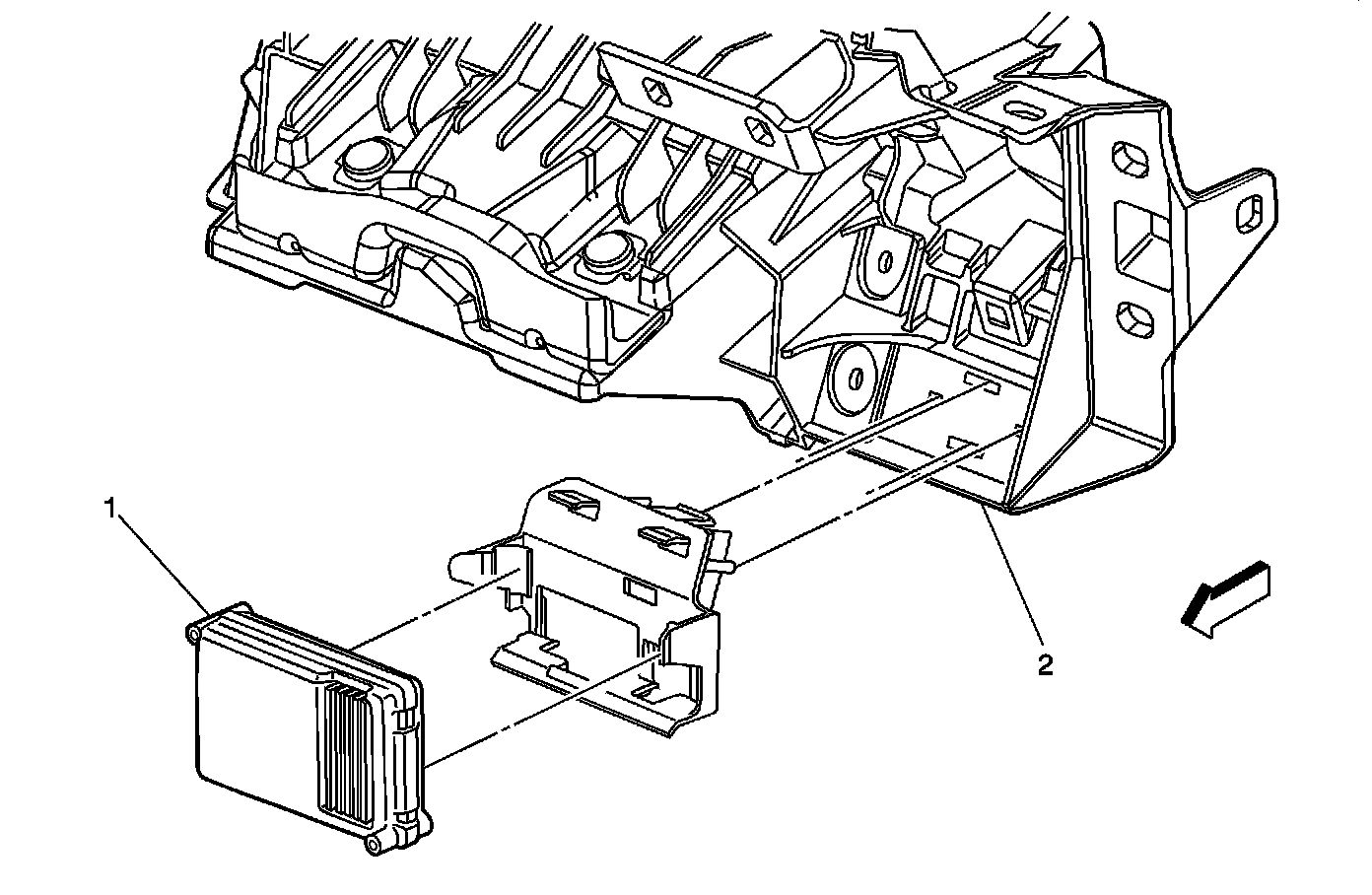

Transfer Case Control Component Views

Instrument Carrier Support, Lower Left:





1 - Transfer Case Shift Control Module
2 - Instrument Carrier Support, Left Side
