Hose Replacement

HOSE REPLACEMENT

REMOVAL PROCEDURE

1. Remove the washer solvent container.

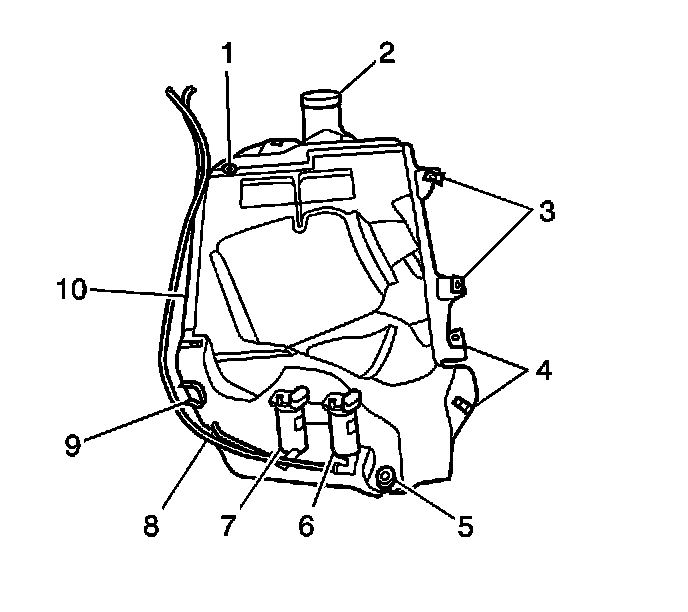

2. Remove either the front washer pump hose (8) or the rear washer pump hose from the washer pump and container.
3. Discard the hose.

INSTALLATION PROCEDURE

1. Install the new washer pump hose onto the front windshield washer pump (6) or the rear washer pump (7).
2. Secure the hose(s) to the container (10).
3. Install the washer solvent container.
