Wiper Arm Blade Replacement

WIPER ARM BLADE REPLACEMENT

REMOVAL PROCEDURE




1. Lift the wiper arm until it is in the vertical position.

IMPORTANT: Do not allow the wiper arm to fall back and strike the windshield.

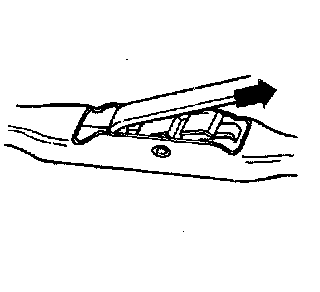

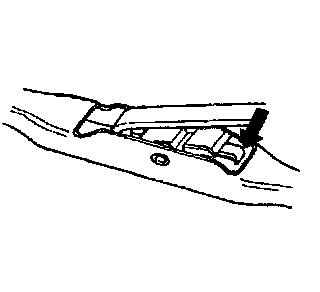

2. Push in the locking tab of the wiper blade clip and pull downward on the wiper arm blade.




3. Remove the wiper blade from the inside radius of the wiper arm.
4. Bring the wiper blade out through the opening in the wiper arm.

INSTALLATION PROCEDURE

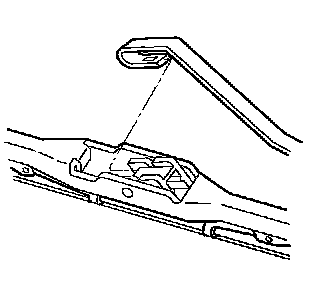

1. Insert the hook of the wiper arm through the opening in the wiper blade.
2. Position the wiper blade in the inside radius of the wiper arm hook.




3. Pull upward until the locking tab of the pivot engages the slot in the hook.
4. Carefully lower the wiper arm and blade onto the windshield.
