Wiper Motor Cover Replacement



WIPER MOTOR COVER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the wiper transmission assembly.

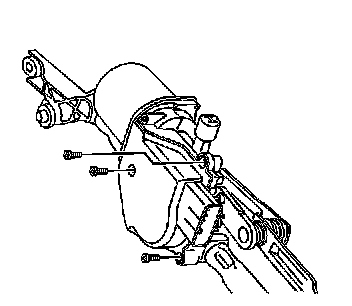

2. Remove the 3 screws retaining the wiper motor cover to the motor.
3. Remove the wiper cover and module from the motor.

INSTALLATION PROCEDURE




1. Install the wiper cover and module to the wiper motor.
2. Install the 3 screws retaining the wiper motor cover to the wiper motor.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the 3 wiper motor cover screws to 3 N.m (27 lb in).

3. Install the wiper transmission assembly to the vehicle.
