Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position (APP) Sensor Replacement

Removal Procedure





1. Turn off the ignition.

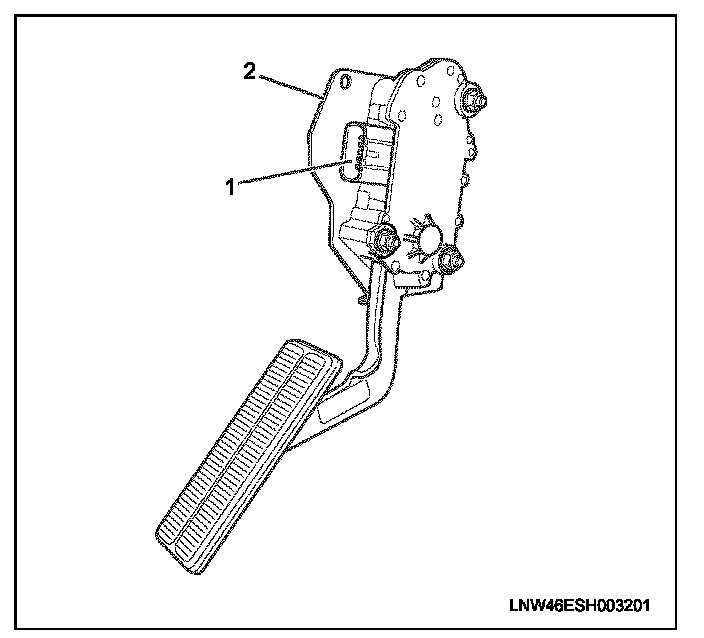

2. Disconnect the APP sensor connector (1).



3. Remove the accelerator pedal assembly with accelerator pedal bracket (2).
4. Remove the accelerator pedal assembly from accelerator pedal bracket (2).

Installation Procedure





1. Install the accelerator pedal assembly in accelerator pedal bracket (2).
2. Install the accelerator pedal assembly with accelerator pedal bracket (2).
3. Connect the APP sensor connector (1).
