Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor (VSS) 2 Replacement

Removal procedure

1. Turn off the ignition.

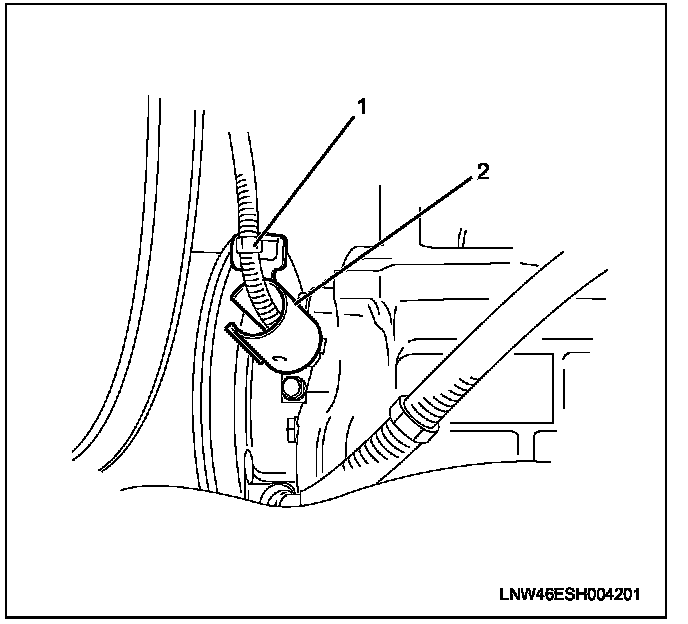

2. Remove the cover(2) and clip(1).
3. Disconnect the vehicle speed sensor 2 connector.
4. Remove the vehicle speed sensor 2.

Installation procedure

1. Tighten the vehicle speed sensor 2.

Tightening torque: 27 N-m (20 lb ft)

2. Connect the vehicle speed sensor 2 connector.
3. Install the cover (2) and clip (1).
