Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2006
>>
i-280 L4-2.8L
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

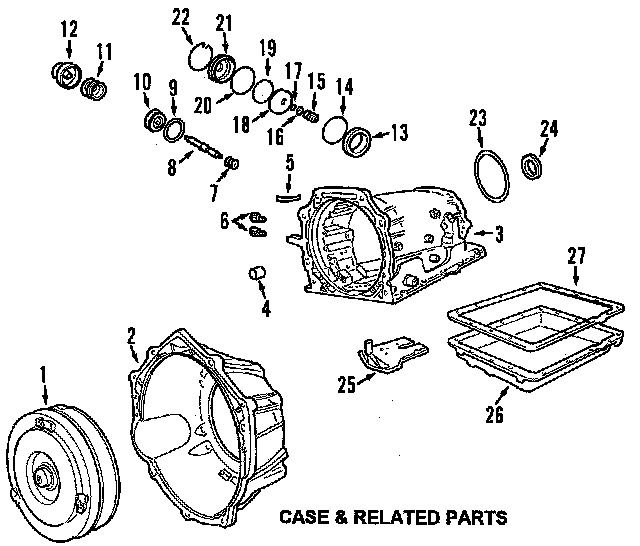

Case & Related Parts:

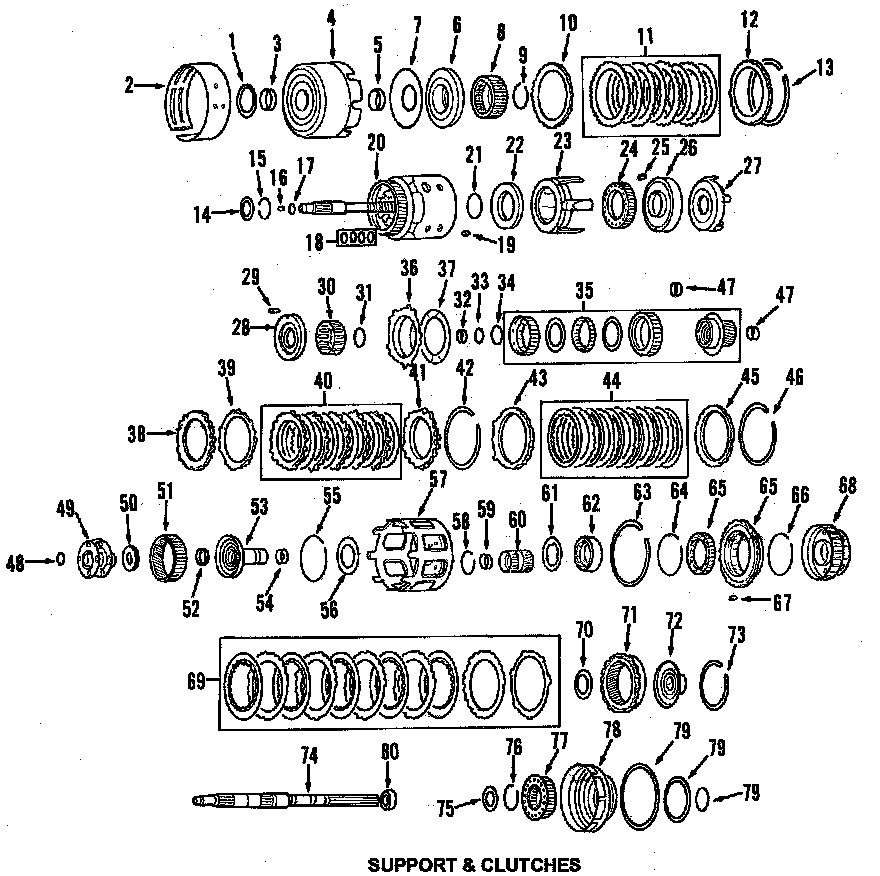

Gear Train:

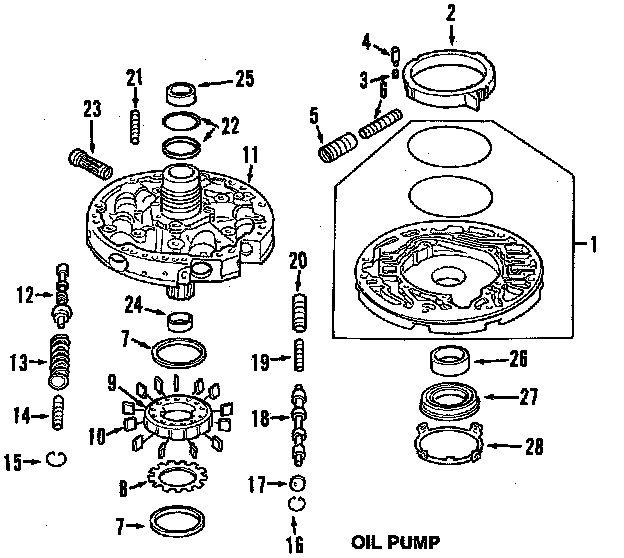

Oil Pump & Related Parts:

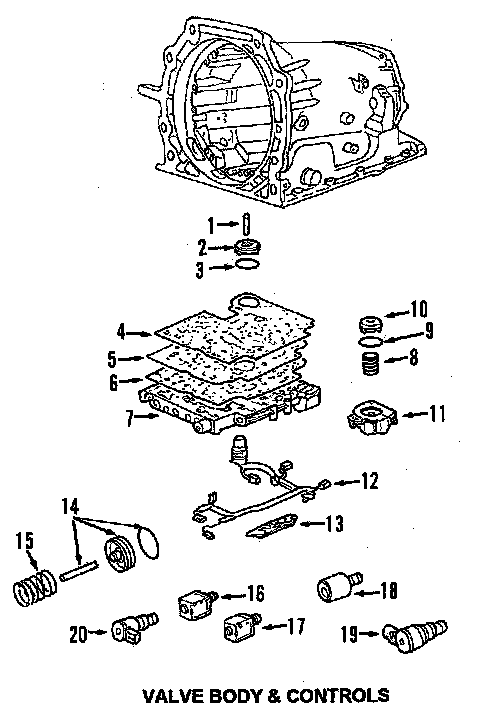

Valve Body & Related Parts:
