Front Fender Liner: Service and Repair

Wheelhouse Liner Replacement - Front

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the push-pins from the inner wheelhouse liner.
4. Remove the inner wheelhouse liner from the vehicle.
5. Remove the push-pins from the outer wheelhouse liner.

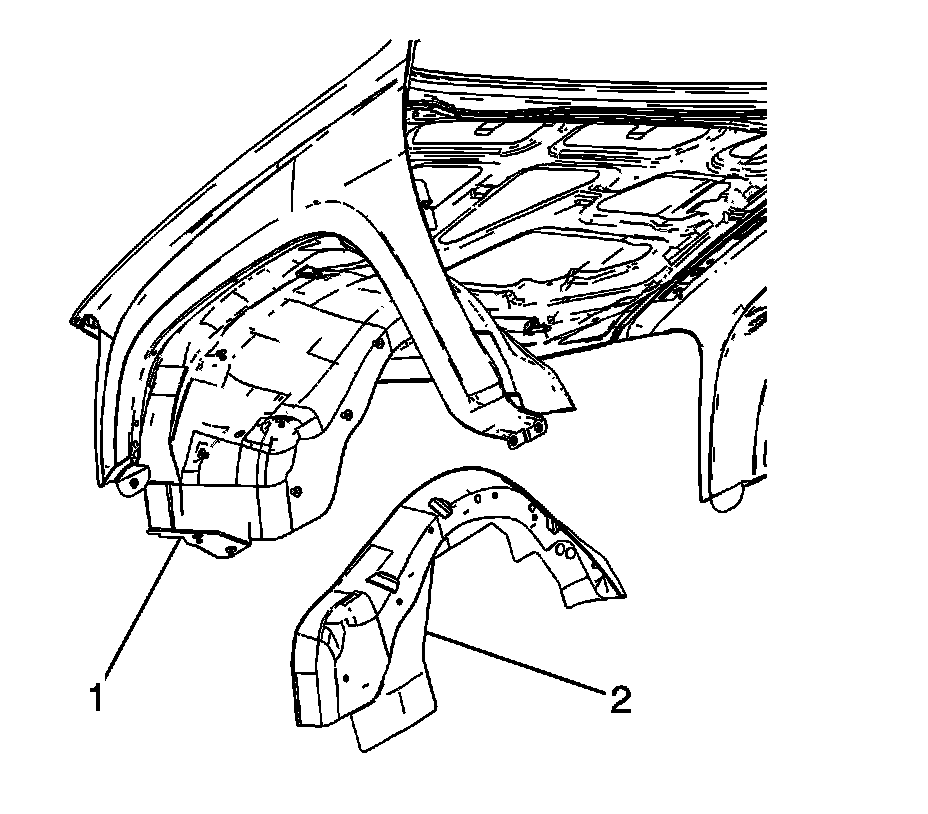

6. Remove the outer wheelhouse liner (2).

Installation Procedure




1. Install the outer wheelhouse liner (2) to the vehicle.
2. Install the rearward push-pin into the outer wheelhouse liner.
3. Install the remaining push-pins into the outer wheelhouse liner.
4. Install the inner wheelhouse liner to the vehicle.
5. Install the push-pins into the inner wheelhouse liner.
6. Install the tire and wheel assembly.
7. Lower the vehicle.
