Disc Brake System: Service and Repair

Disc Brake Splash Shield Replacement - Front

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the wheel hub and speed sensor.

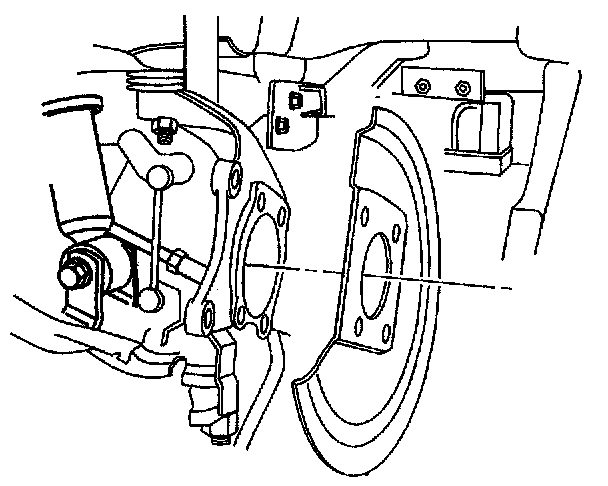

3. Remove the disc brake splash shield.

Installation Procedure

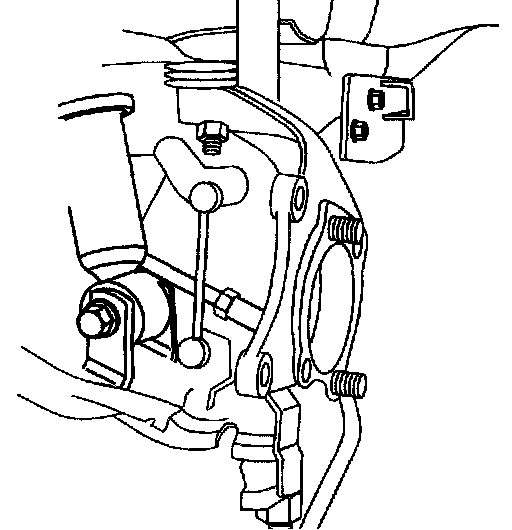

1. With the aid of an assistant, hold 2 of the 4 mounting bolts in the steering knuckle across from each other.

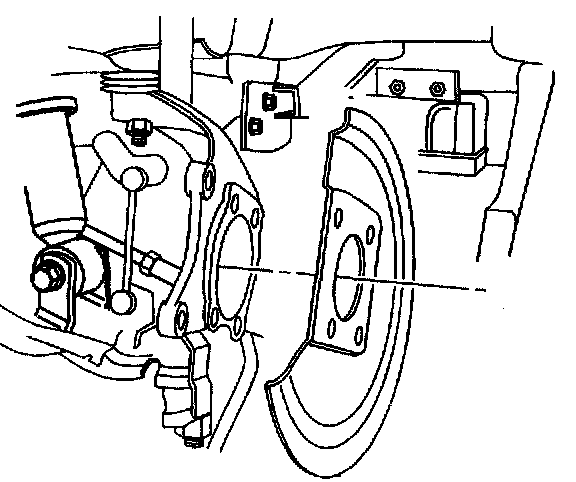

2. Position the splash shield on the steering knuckle.

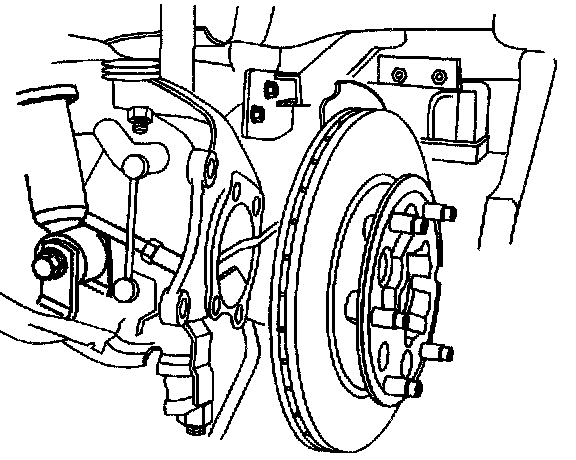

3. Install the wheel hub and speed sensor assembly.
4. Lower the vehicle.
