System Diagram

ABS Connector End Views

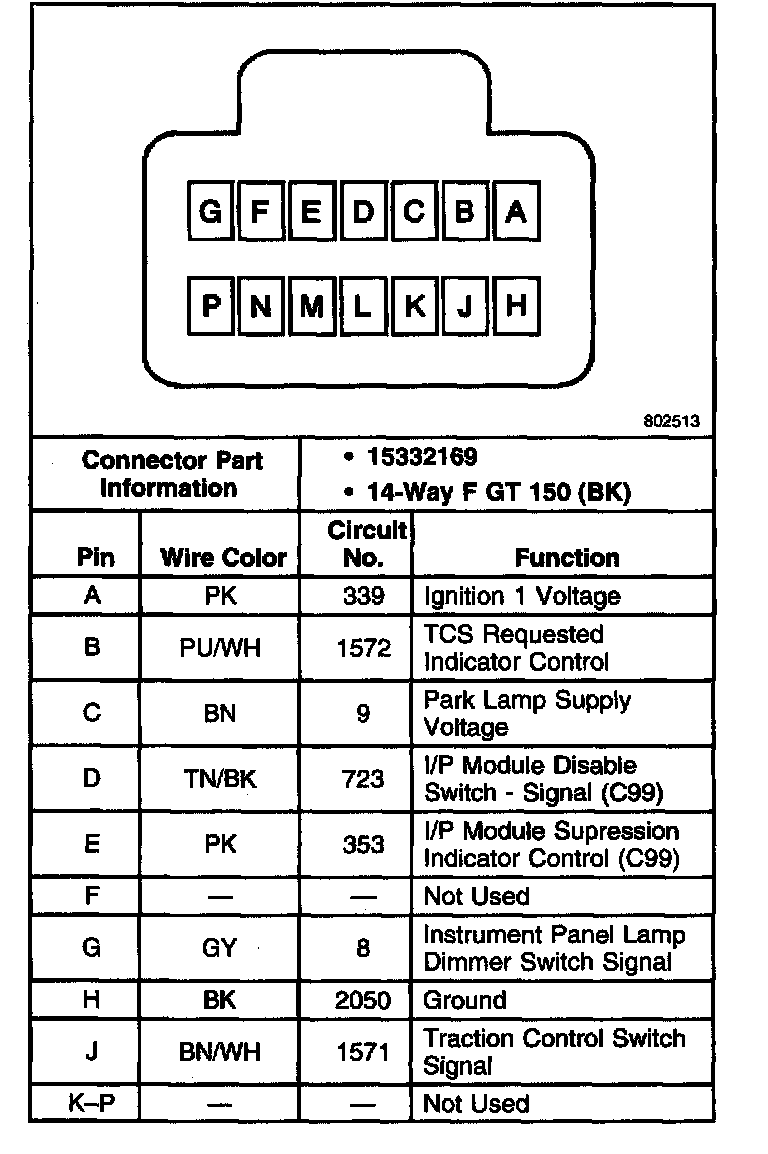

Accessory Switch C1 (C99)

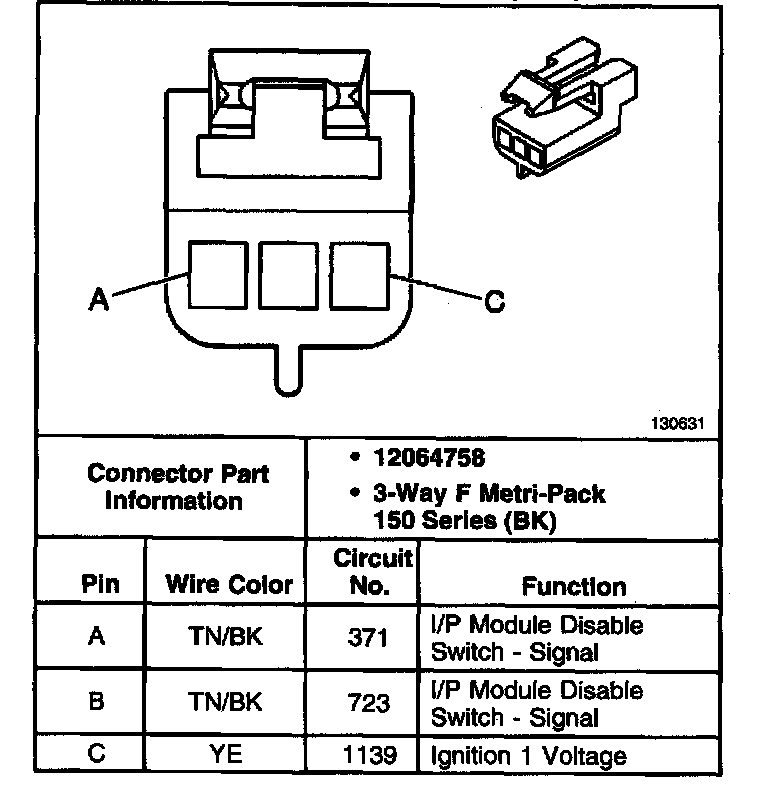

Accessory Switch C2 (2WD W/NW7)

Electronic Brake Control Module (EBCM)

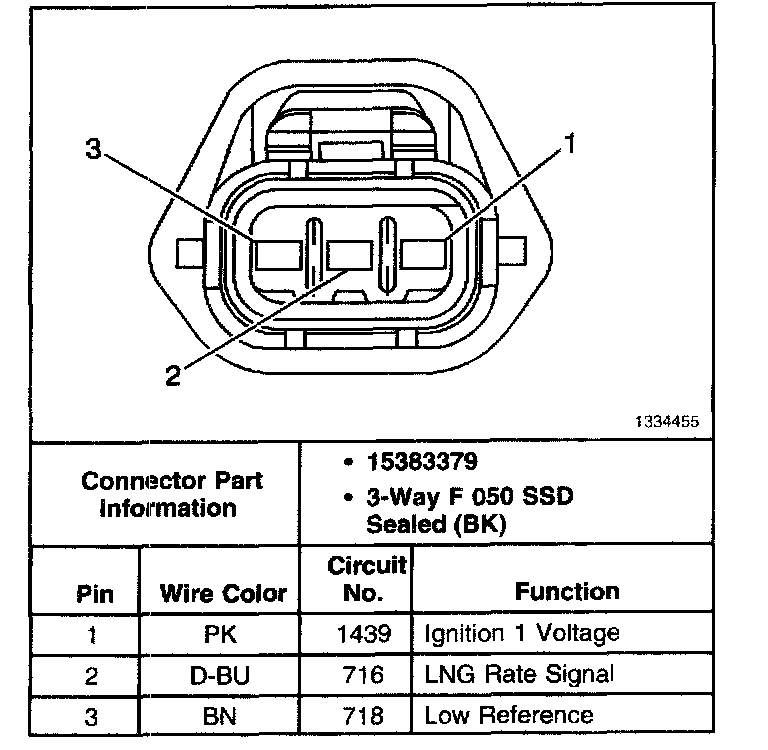

G Sensor (4WD)

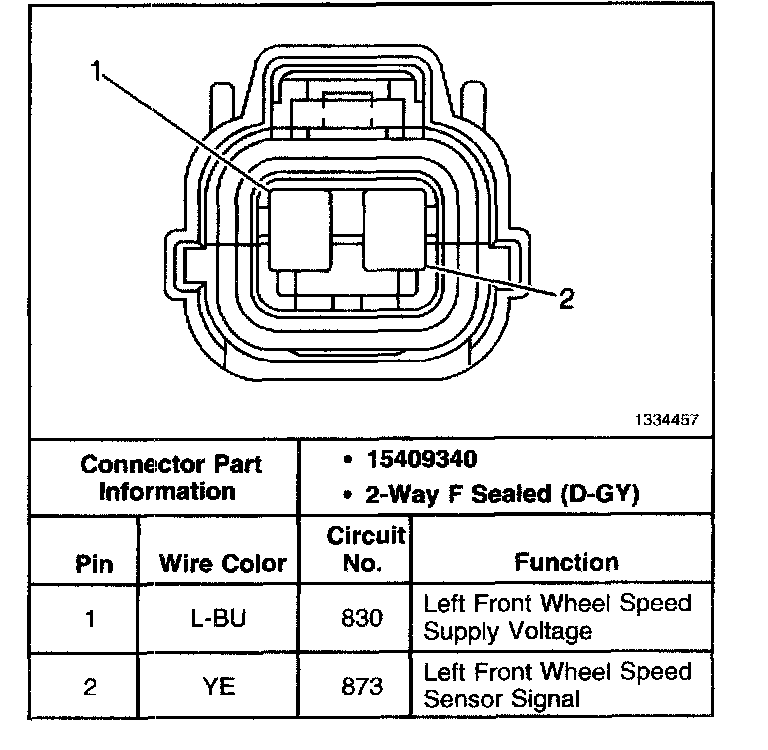

Wheel Speed Sensor (WSS) - LF

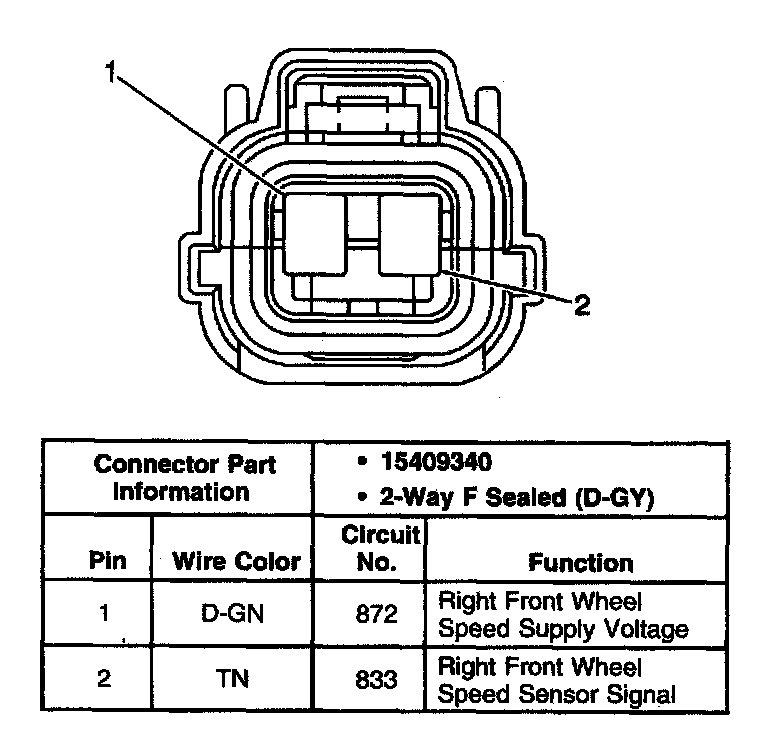

Wheel Speed Sensor (WSS) - RF
