Auxiliary Power Outlet
Auxiliary Power Outlet

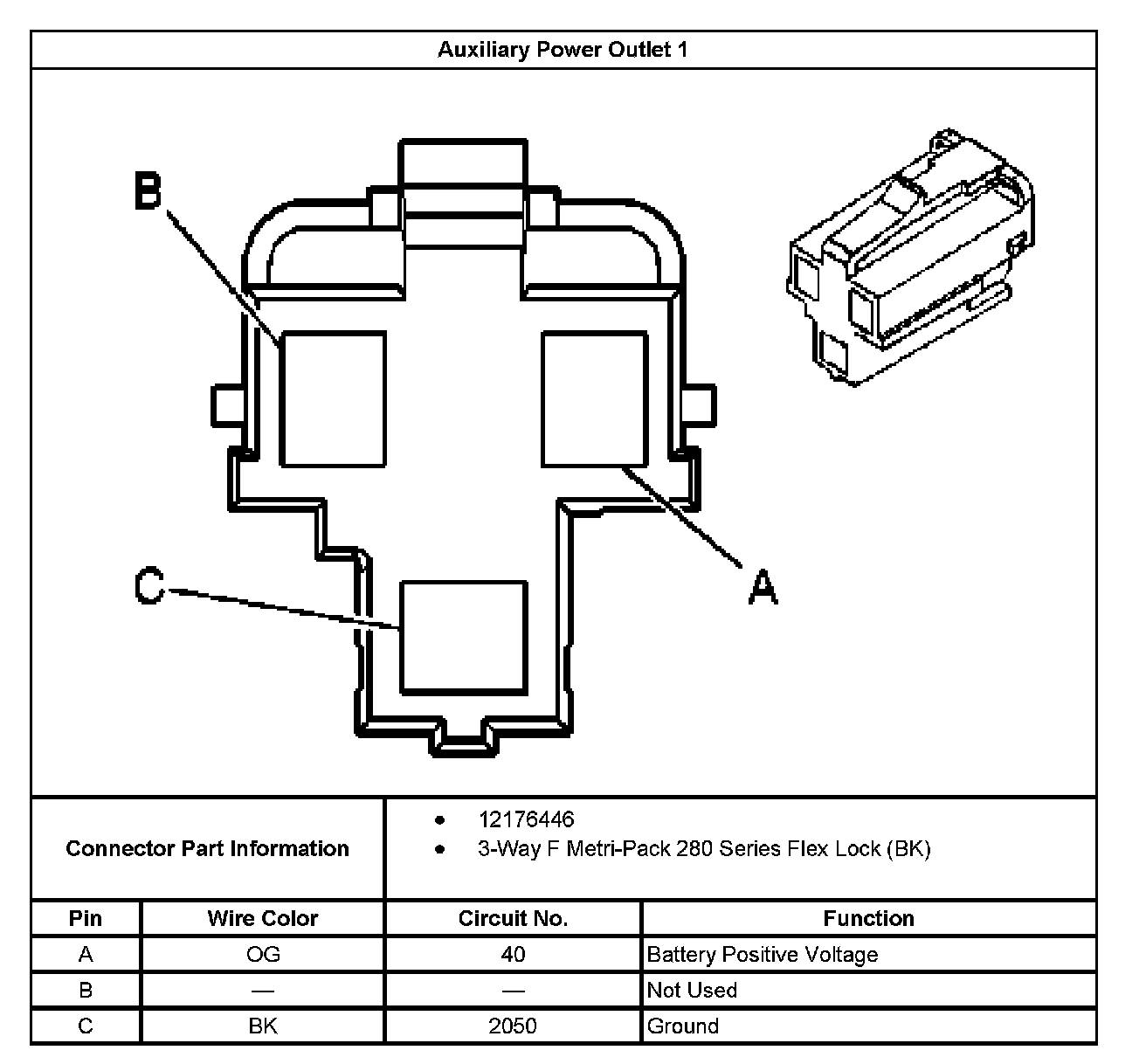

Auxiliary Power Outlet 1:

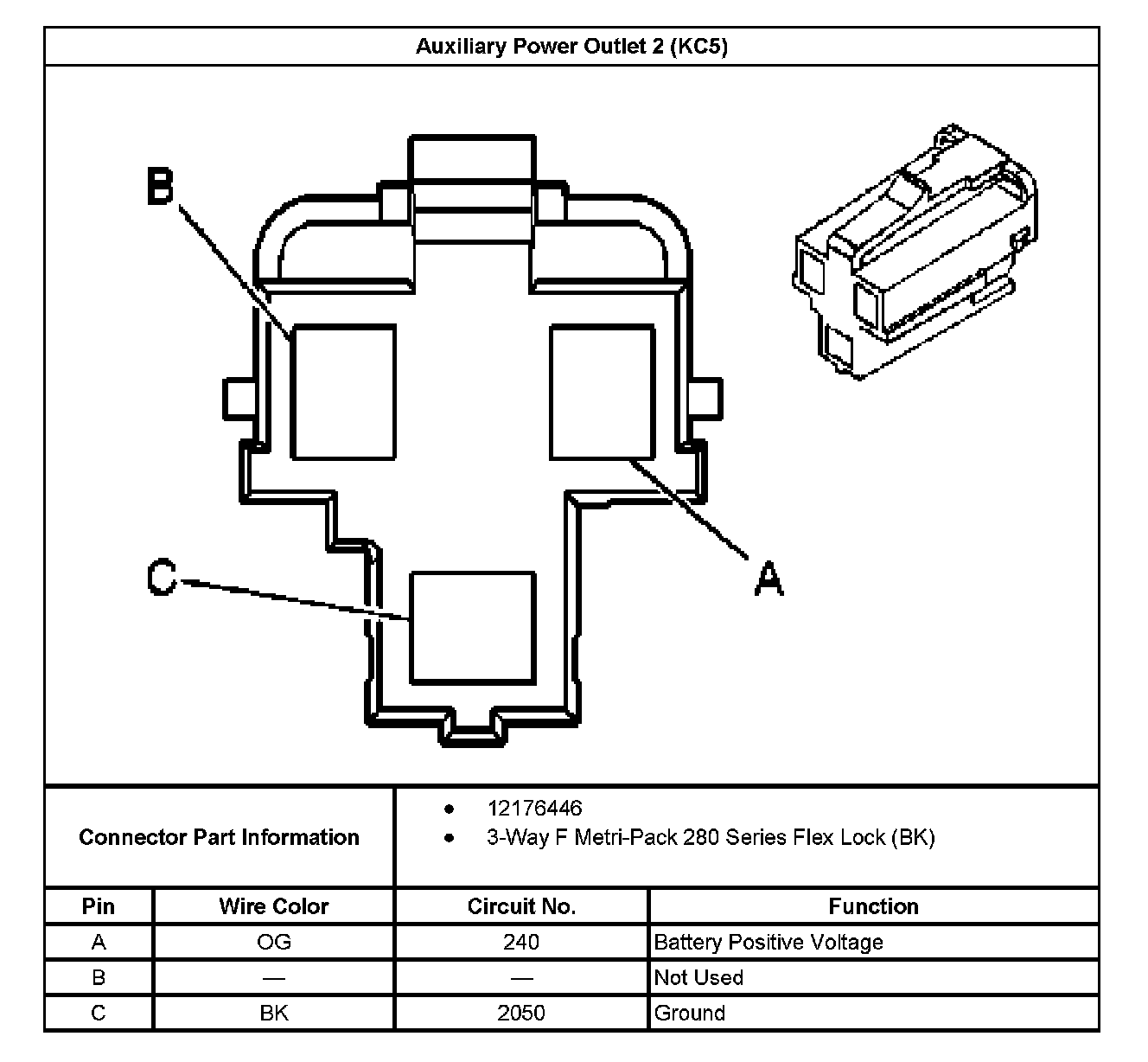

Auxiliary Power Outlet 2 (With RPO Code KC5):
