Center Mounted Brake Lamp

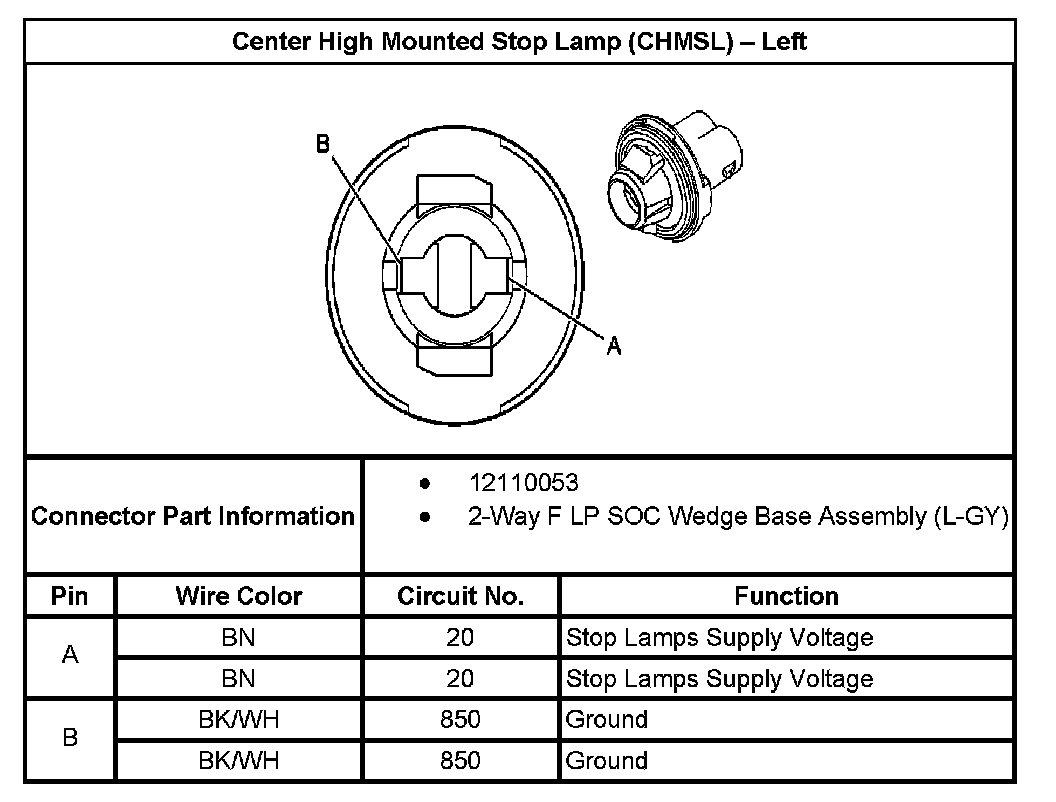

Center High Mounted Stop Lamp (CHMSL) - Left:

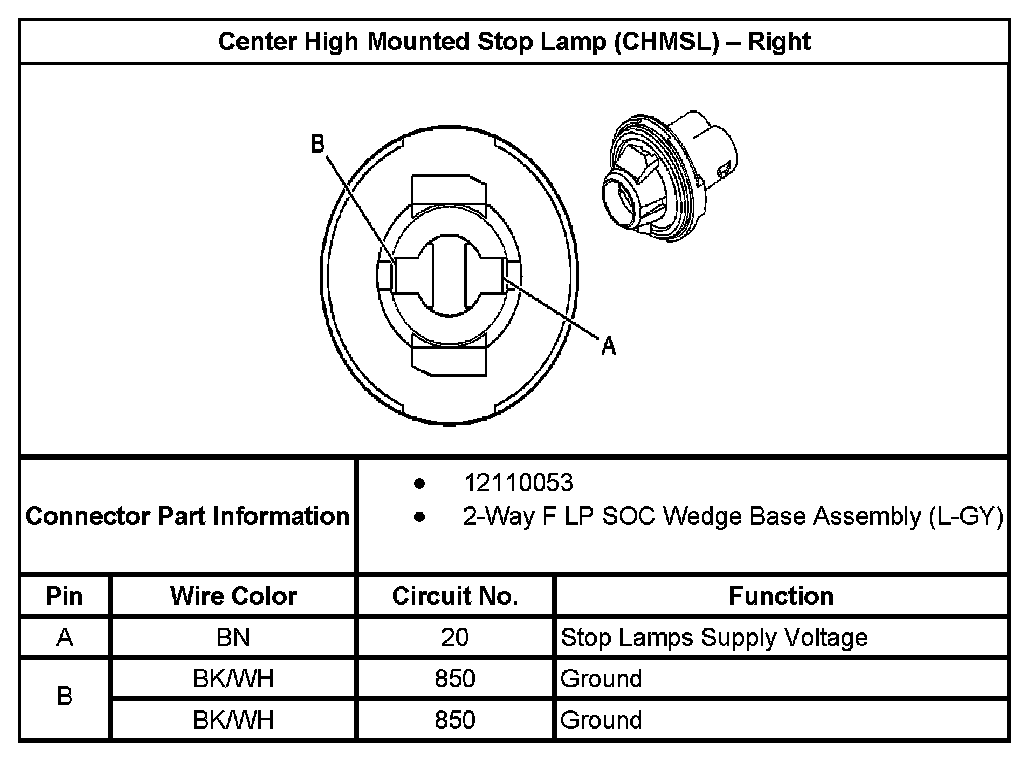

Center High Mounted Stop Lamp (CHMSL) - Right:
