Windows

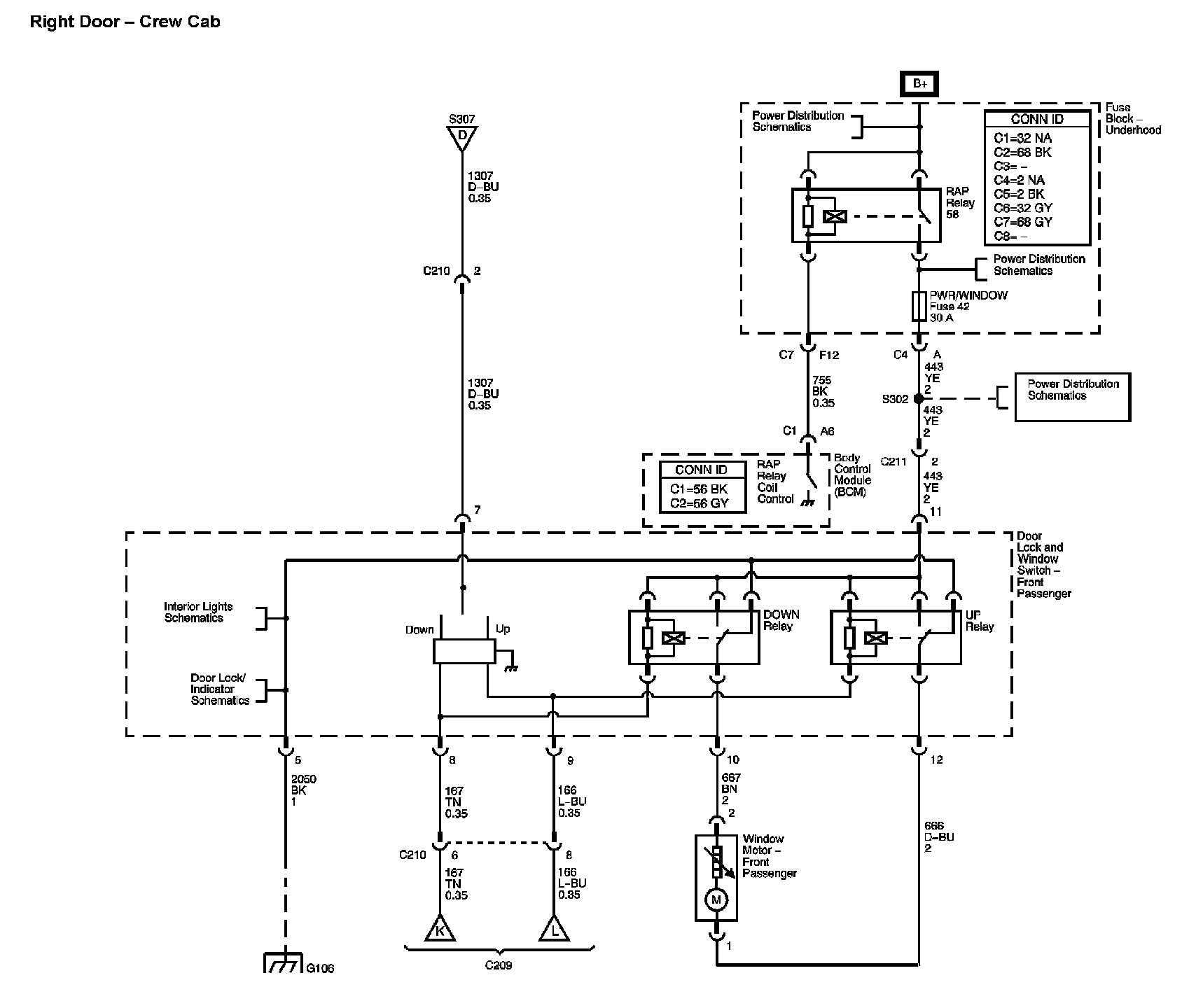

Power Window Diagram 1:

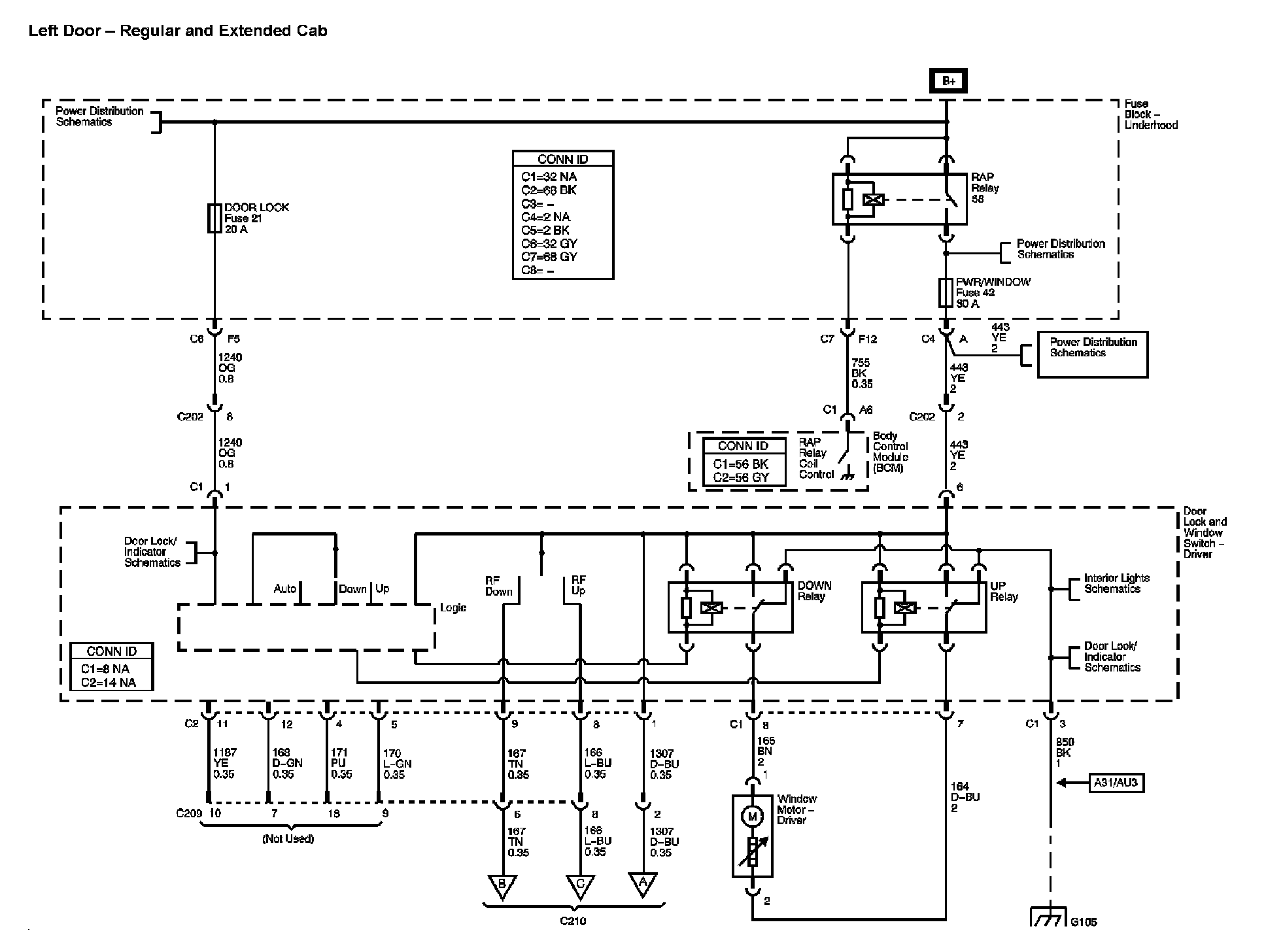

Power Window Diagram 2:

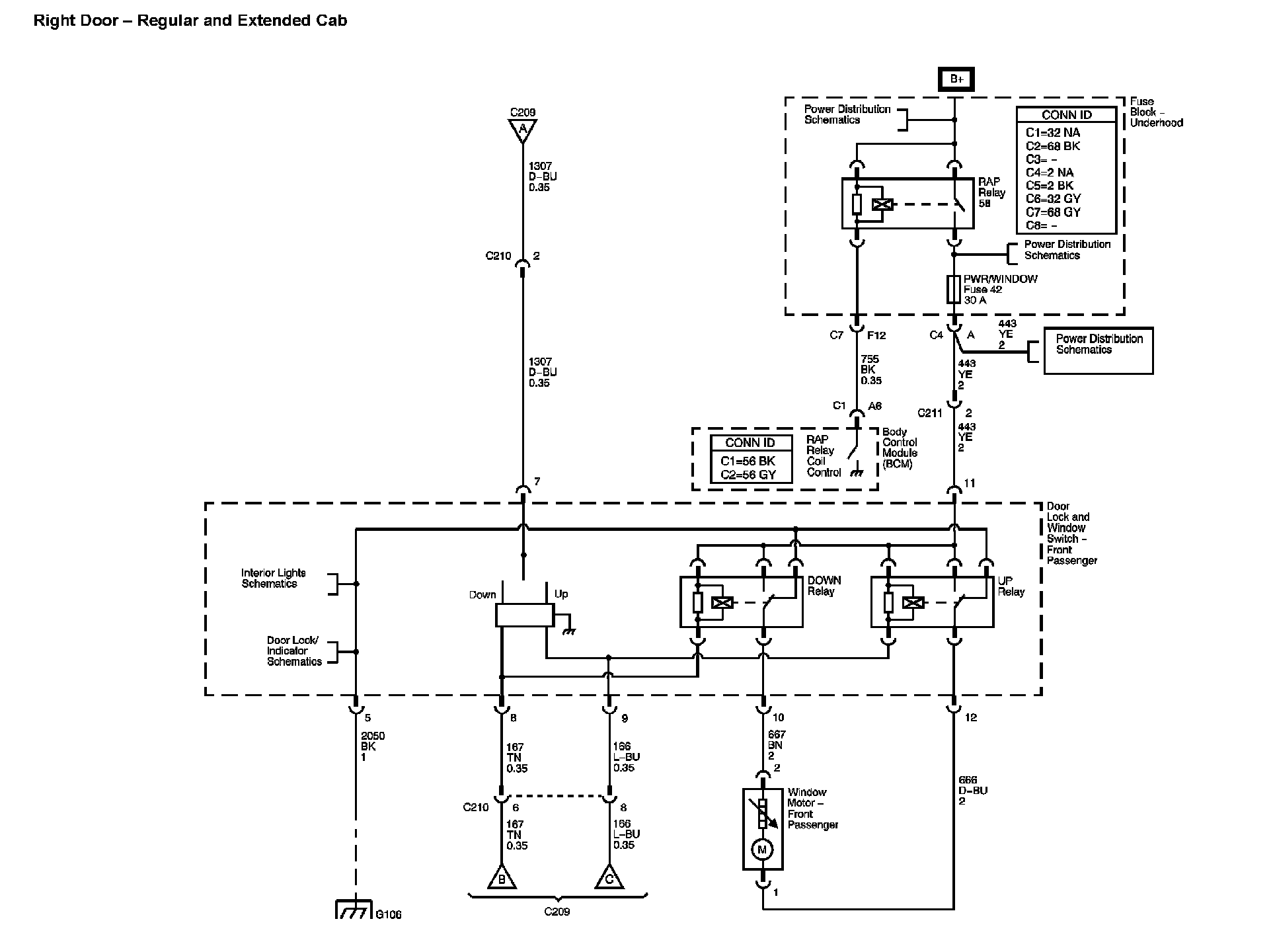

Power Window Diagram 3:

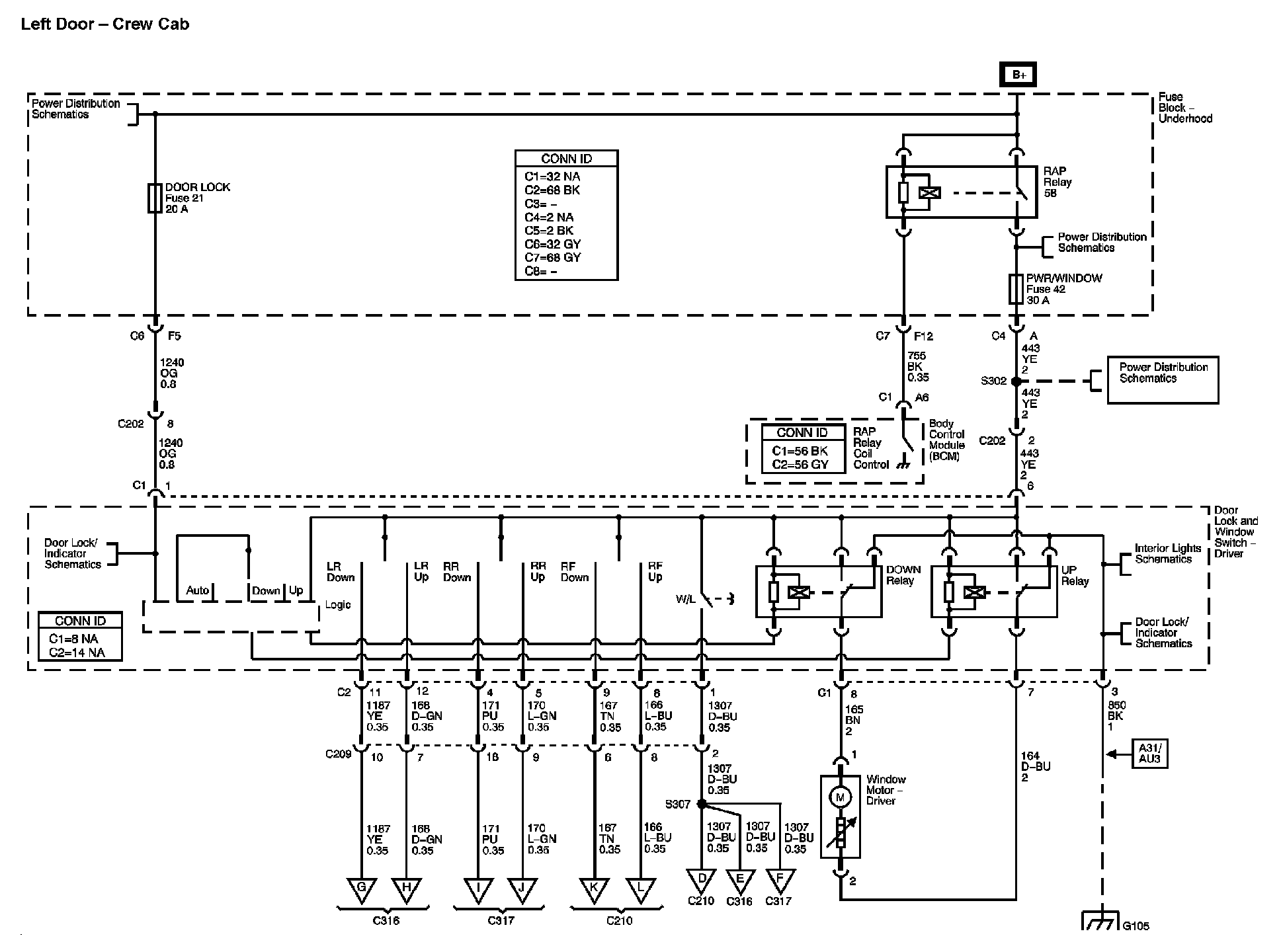

Power Window Diagram 4:

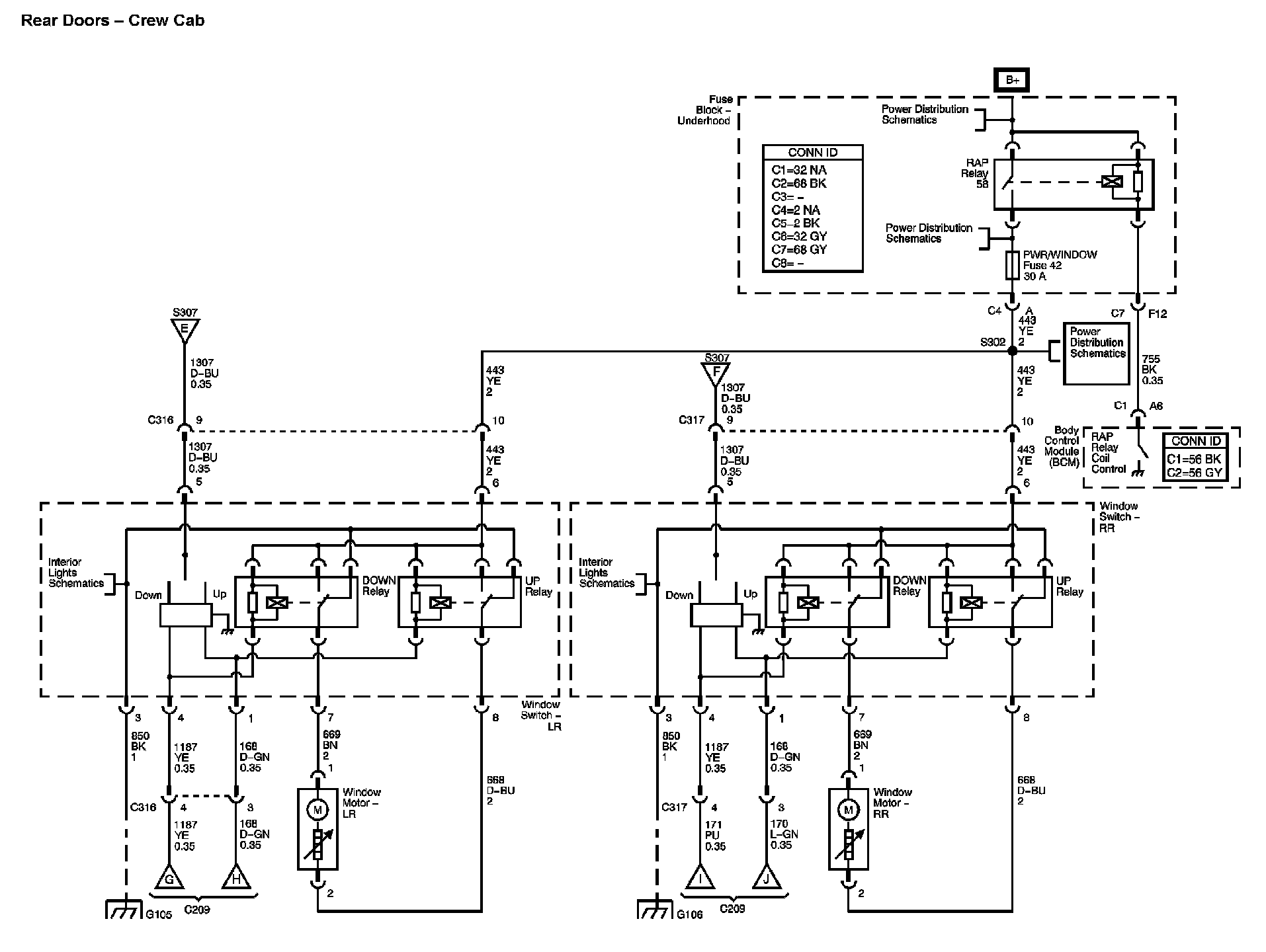

Power Window Diagram 5:
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations
