Internal Components

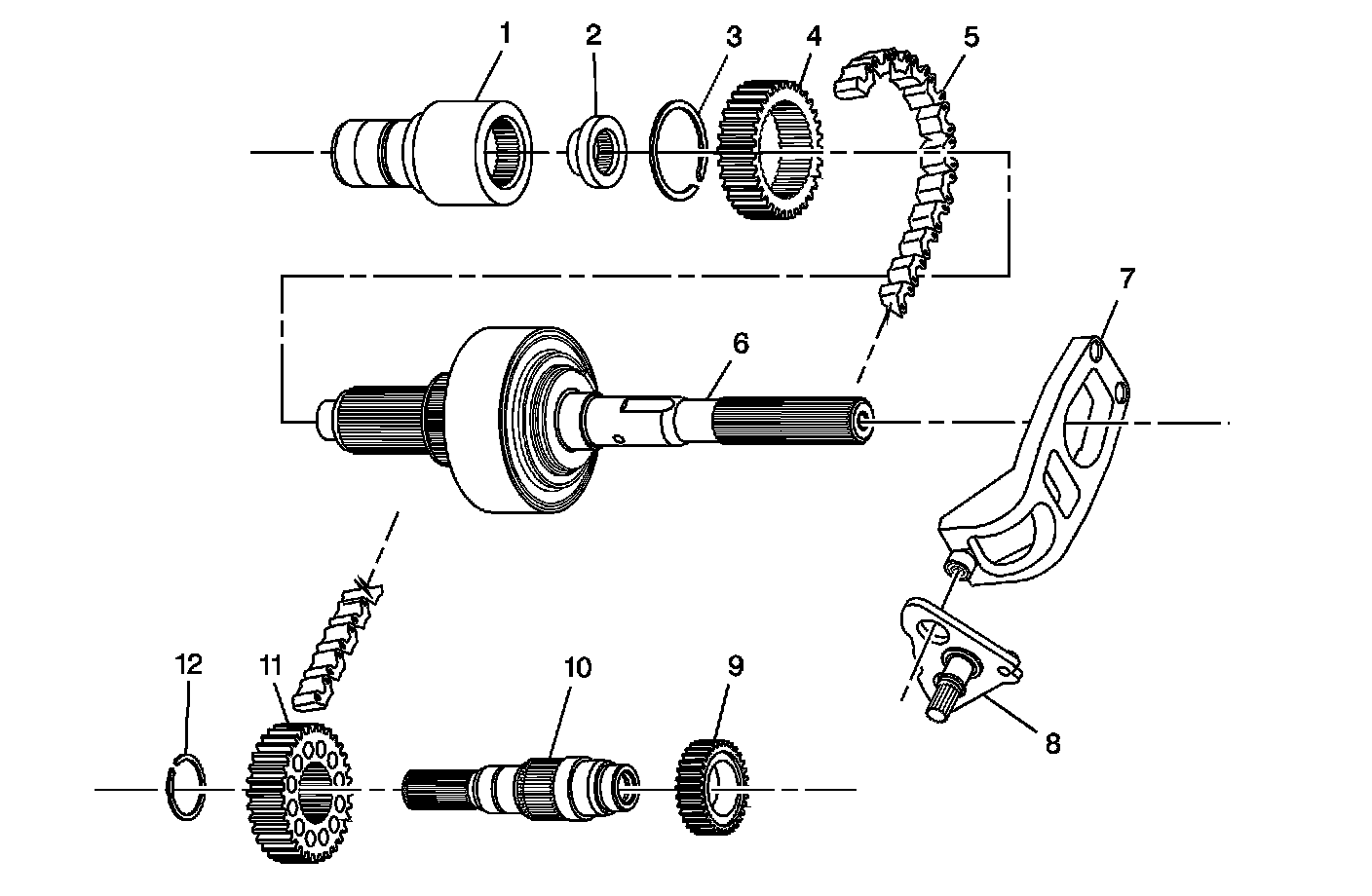

Transfer Case Disassembled View

Internal Components:

1 - Input Shaft Gear
2 - Input Gear Thrust Bearing
3 - Drive Sprocket Retaining Ring
4 - Drive Sprocket
5 - Drive Chain
6 - Rear Output Shaft
7 - Clutch Lever
8 - Control Actuator Lever Shaft
9 - Front Output Shaft Speed Reluctor Wheel
10 - Front Output Shaft
11 - Driven Sprocket
12 - Driven Sprocket Retaining Ring
