Camshaft Cover Installation

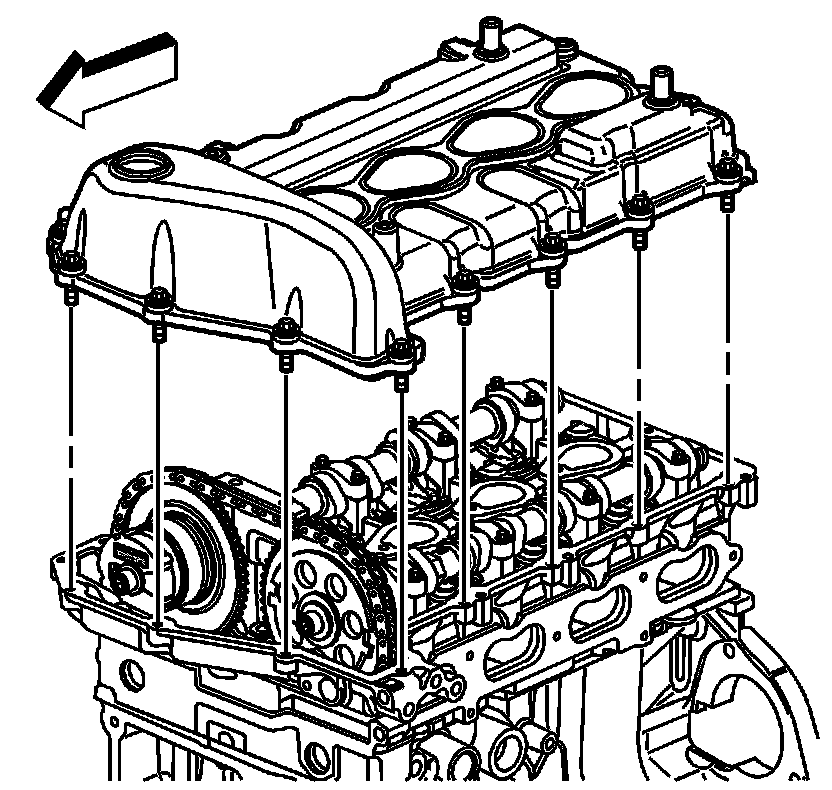

Camshaft Cover Installation 1.
Install a new camshaft cover seal.
2.
Notice: Refer to Fastener Notice in Service Precautions.
Install the camshaft cover and bolts.
Tighten the camshaft cover bolts to
10 Nm (89 inch lbs.). 3.
Install new ignition control module seals.
4.
Install the ignition control modules and bolts.
Tighten the ignition control module bolts to
10 Nm (89 inch lbs.).
