Timing Chain and Sprockets Removal

Timing Chain and Sprockets Removal

1. Remove the exhaust camshaft sensor bolt.
2. Remove the exhaust camshaft sensor.

3. Remove the top chain guide bolts.
4. Remove the top chain guide.

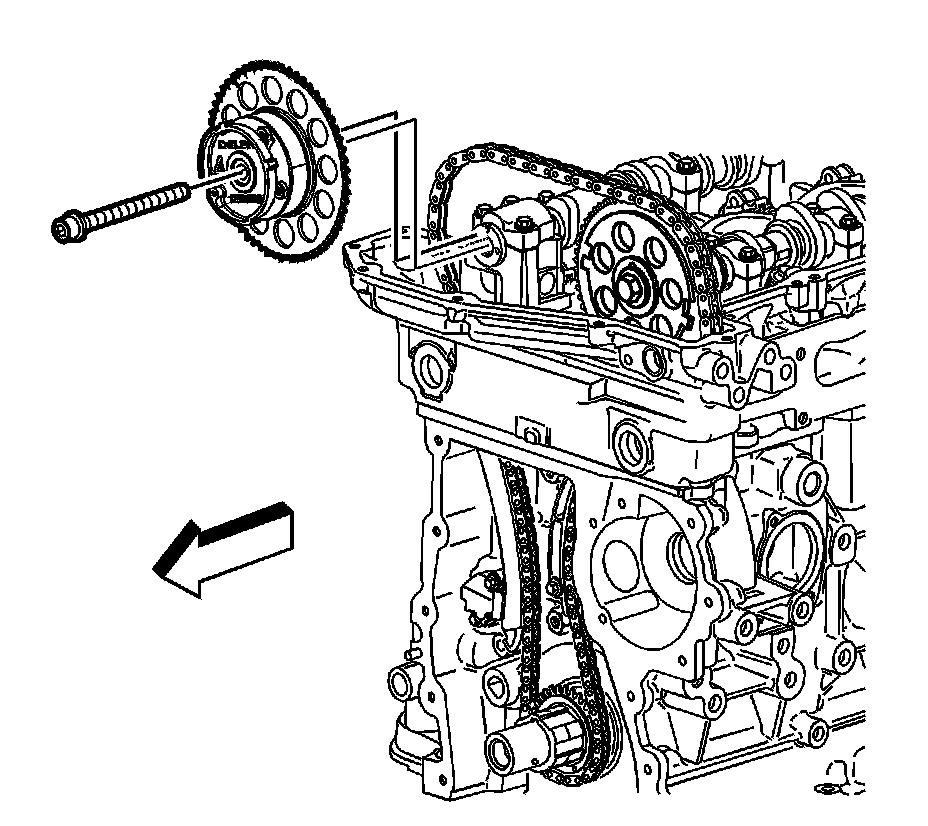

5. Remove the exhaust camshaft position actuator bolt and discard.
6. Remove the exhaust camshaft position actuator.

7. Remove the intake camshaft sprocket bolt.
8. Remove the intake camshaft sprocket.
9. Remove the timing chain.
10. Remove the crankshaft sprocket.
