Air Duct: Service and Repair

AIR DISTRIBUTOR DUCT REPLACEMENT

REMOVAL PROCEDURE




1. Remove the I/P assembly.
2. Remove the driver side air distributor duct screws.

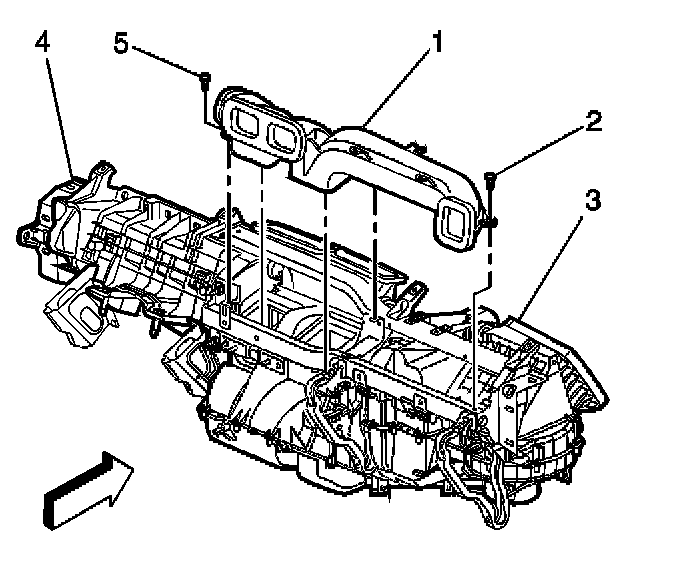

3. Remove the air distributor duct (1) from the instrument panel.

INSTALLATION PROCEDURE




1. Install the air distributor duct (1) to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the retaining screws to the air distributor duct.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Install the I/P assembly.
