Blower Motor Resistor: Service and Repair

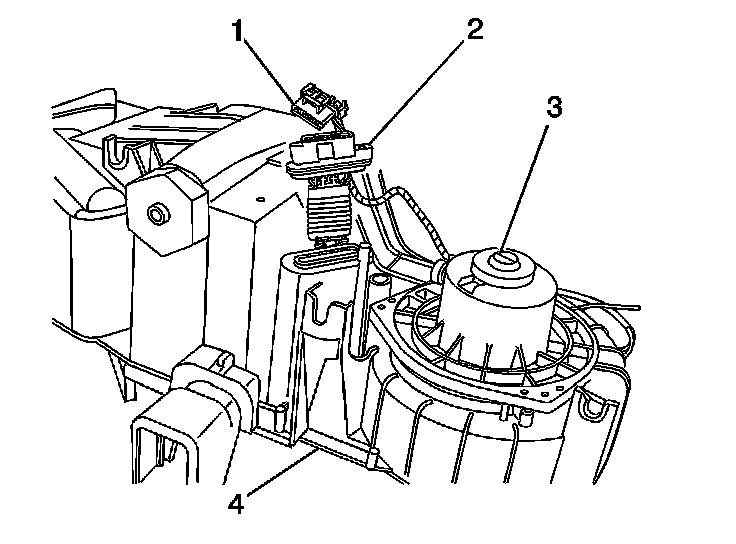

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the blower motor resistor electrical connector (1).
2. Remove the blower motor resistor mounting screws.
3. Remove the blower motor resistor (2).

INSTALLATION PROCEDURE




1. Install the blower motor resistor (2).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the blower motor resistor mounting screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Connect the blower motor resistor electrical connector (1).
