Compressor Clutch Hub: Service and Repair

COMPRESSOR CLUTCH PLATE/HUB ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE
1. Remove the compressor.

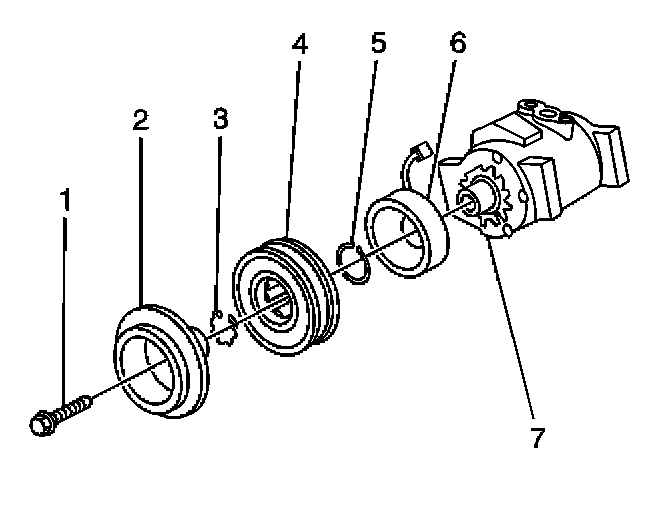

2. Remove the clutch plate retaining bolt (1).
3. Remove the clutch plate assembly (2).
4. Remove the clutch hub/bearing snap ring (3).
5. Remove the clutch hub/bearing assembly (4).

INSTALLATION PROCEDURE




1. Install the clutch hub/bearing assembly (4).
2. Install the clutch hub/bearing snap ring (3).
3. Install the clutch plate assembly (2).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the clutch plate retaining bolt (1).

Tighten
Tighten the bolt to 18 N.m (13 lb ft).

5. Install the compressor.
