Condenser HVAC: Service and Repair
CONDENSER REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE

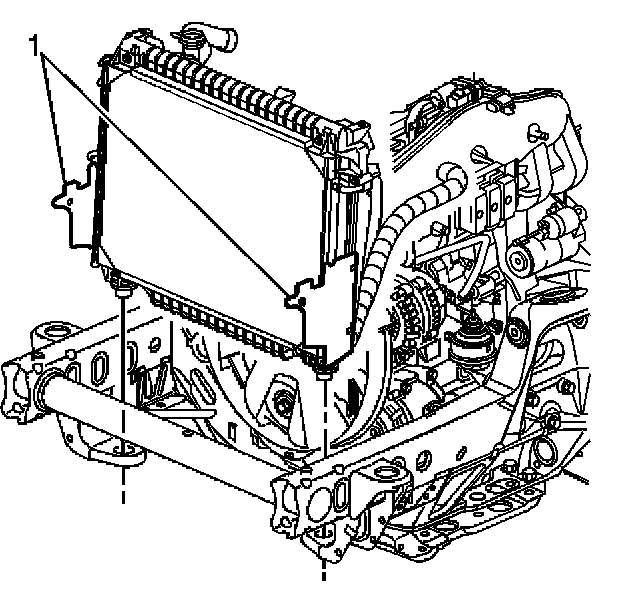

1. Remove the radiator.
2. Remove the condenser retaining bolts from the radiator.
3. Remove the condenser from mounts on the radiator.
INSTALLATION PROCEDURE
IMPORTANT: If replacing the condenser, add the refrigerant oil to the condenser. Refer to Refrigerant System Capacities for the capacity information.
1. Install the condenser to the radiator.
2. If replacing the condenser, transfer the components from the old condenser as necessary.
3. Install the condenser to the mounts on the radiator.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the condenser retaining bolts to the radiator.
Tighten
Tighten the bolts to 28 N.m (21 lb ft).
5. Install the radiator.
6. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
7. Leak test the fittings of the components using the J 39400-A.
