Air Recirculation Malfunction

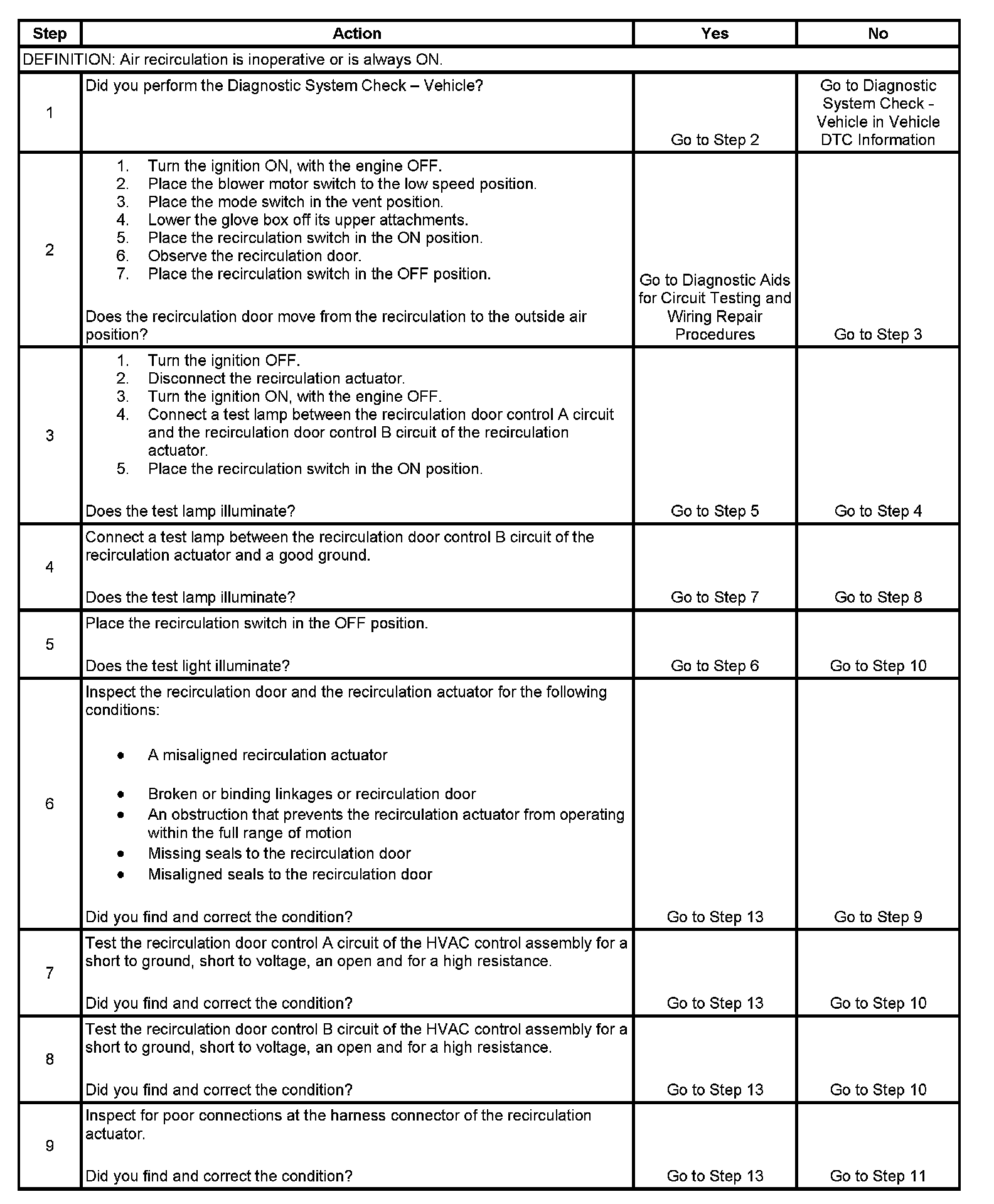

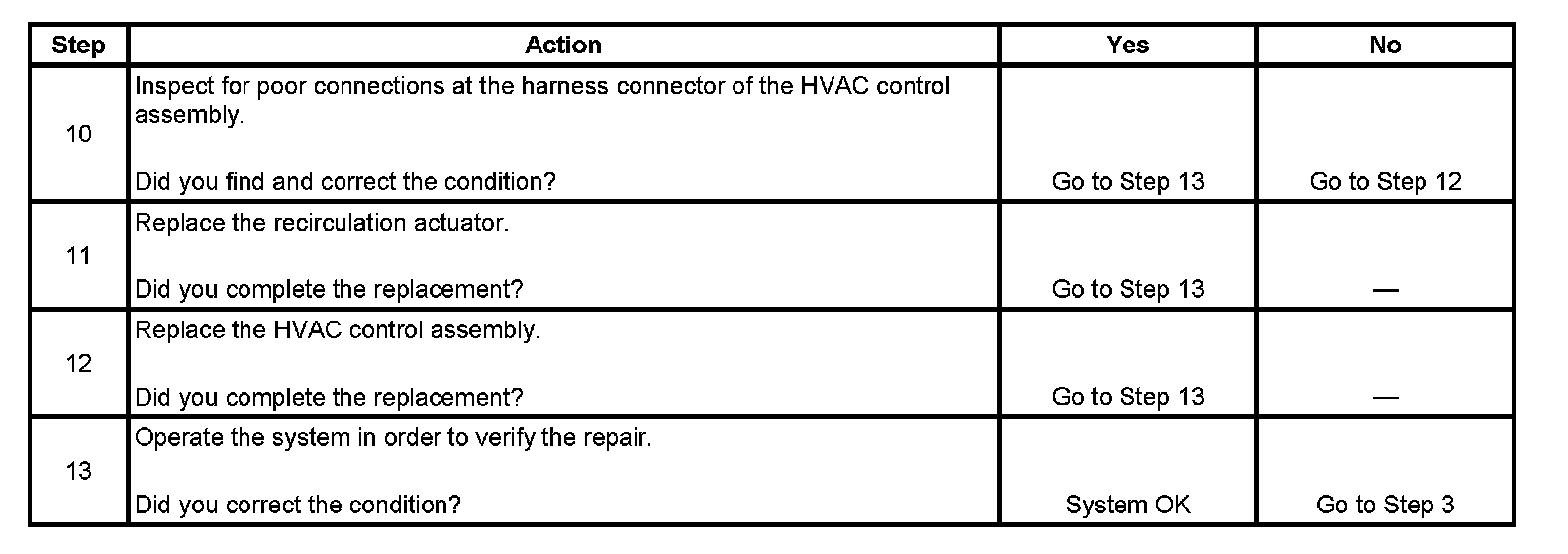

AIR RECIRCULATION MALFUNCTIONTEST DESCRIPTIONSteps 10 - 13:
The number below refers to the step number on the diagnostic table.
5.
This step tests the HVAC control assemblies ability to reverse the polarity of the door control A and door control B circuits. The test lamp should illuminate.
