Thread Repair Specifications

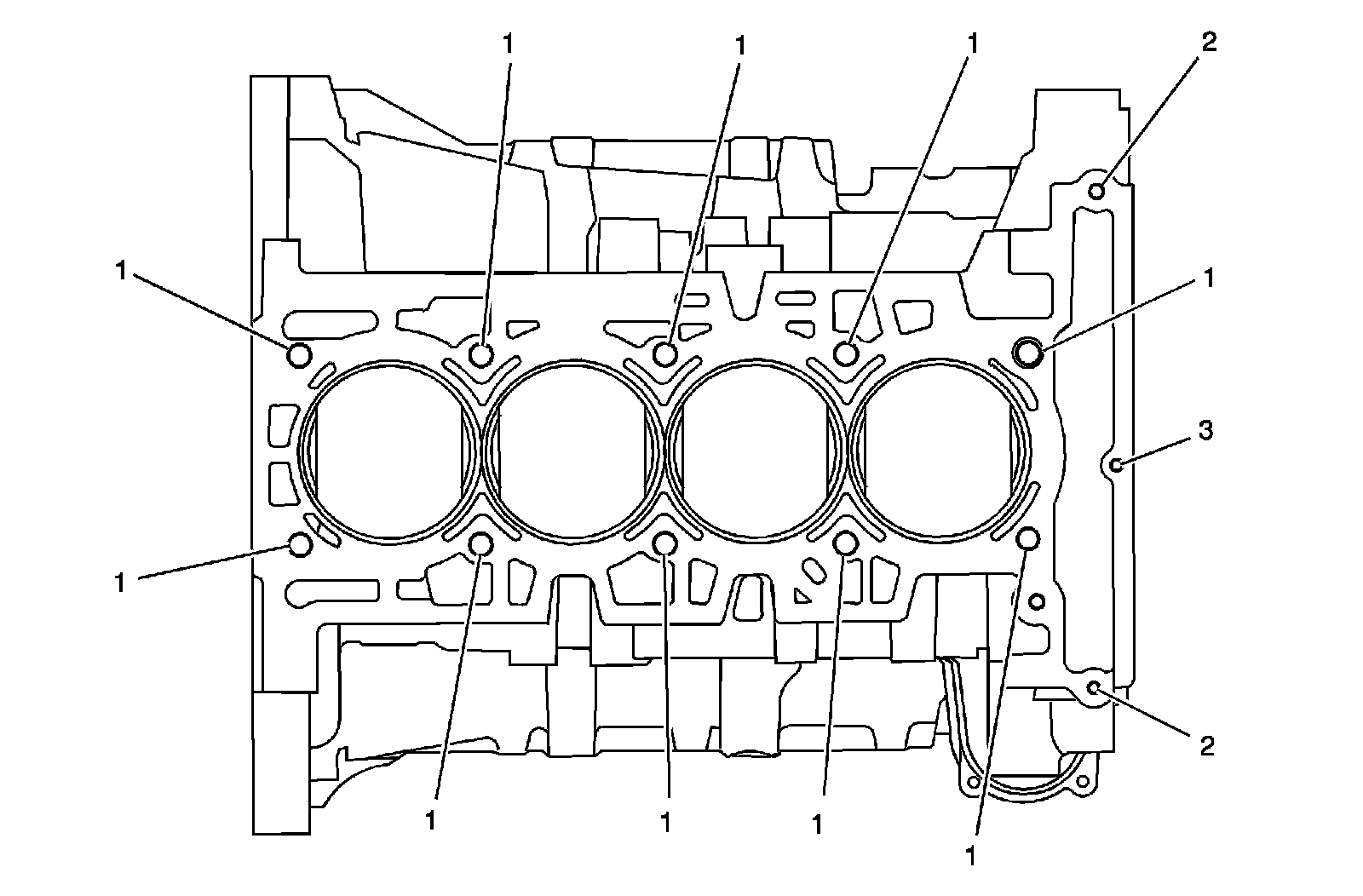

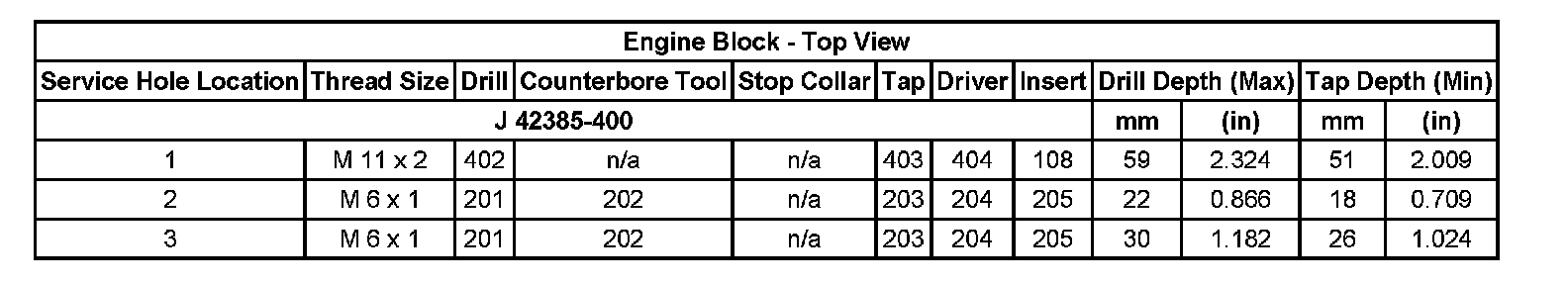

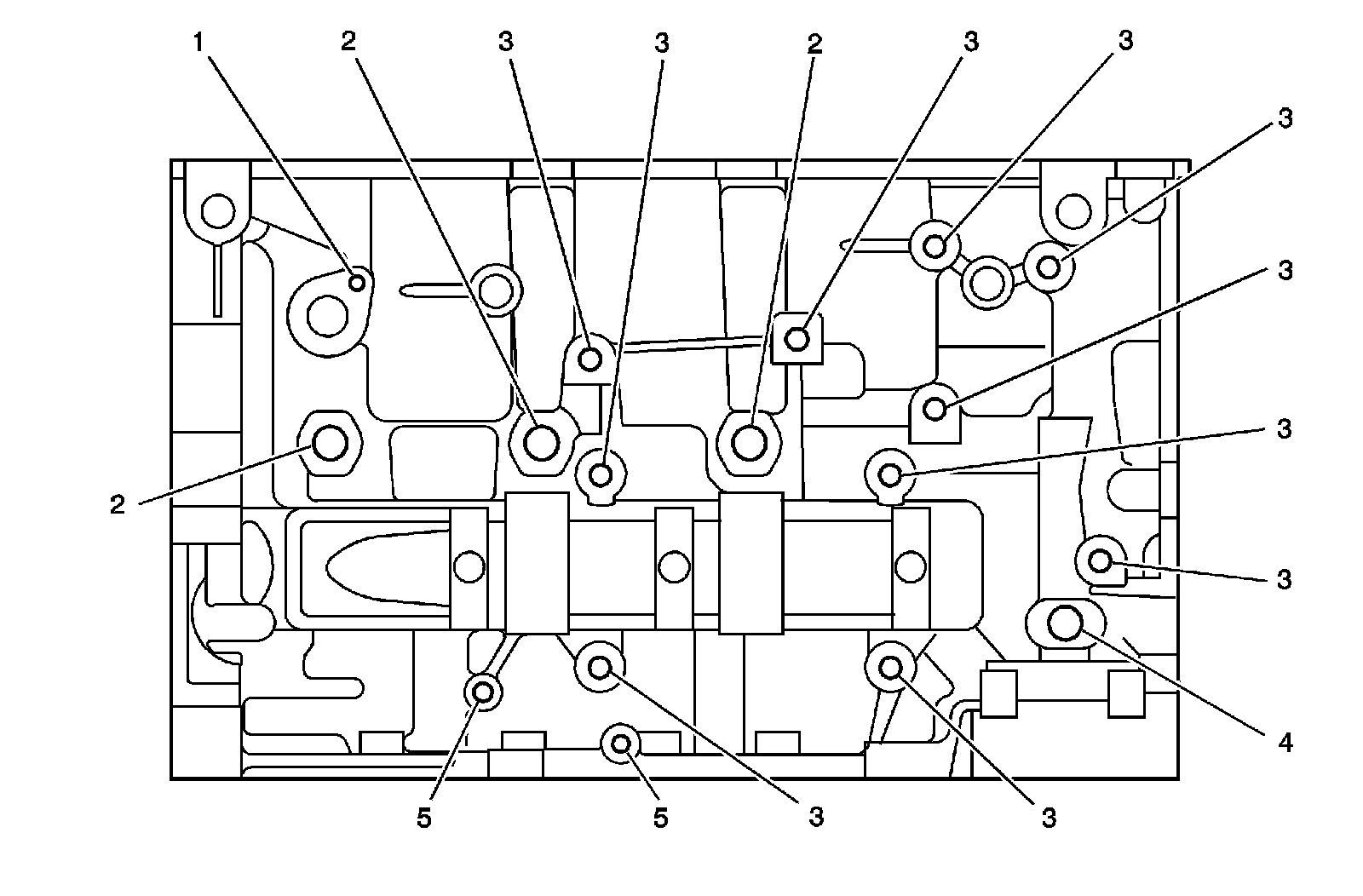

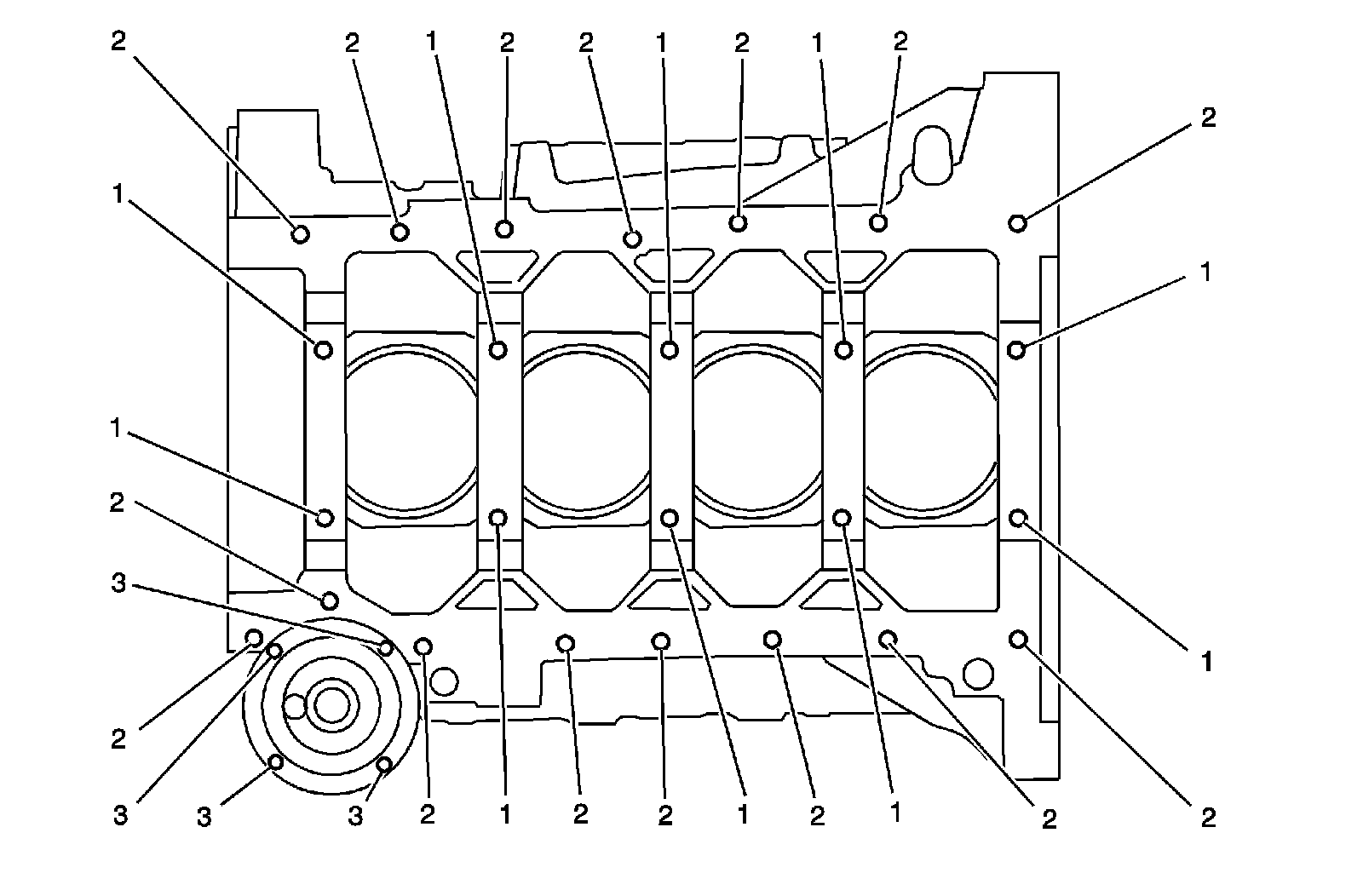

Engine Block - Top View:

Engine Block - Top View:

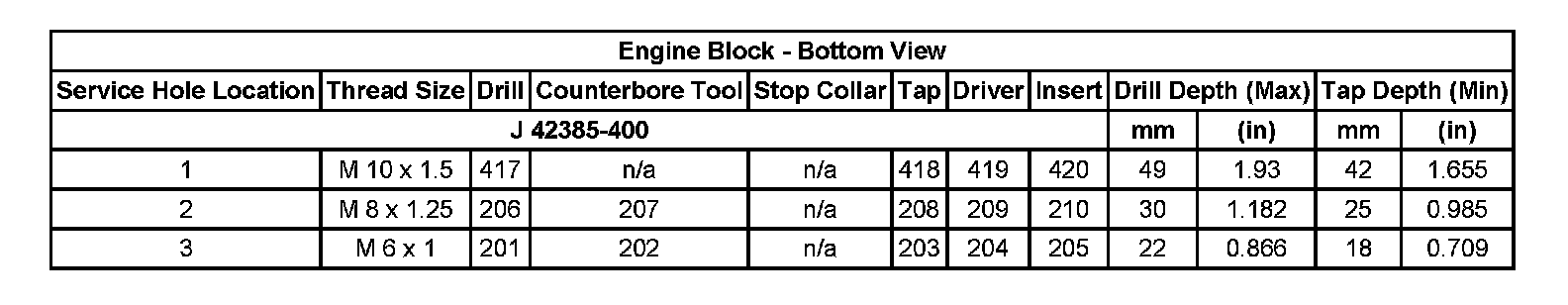

Engine Block - Bottom:

Engine Block - Bottom:

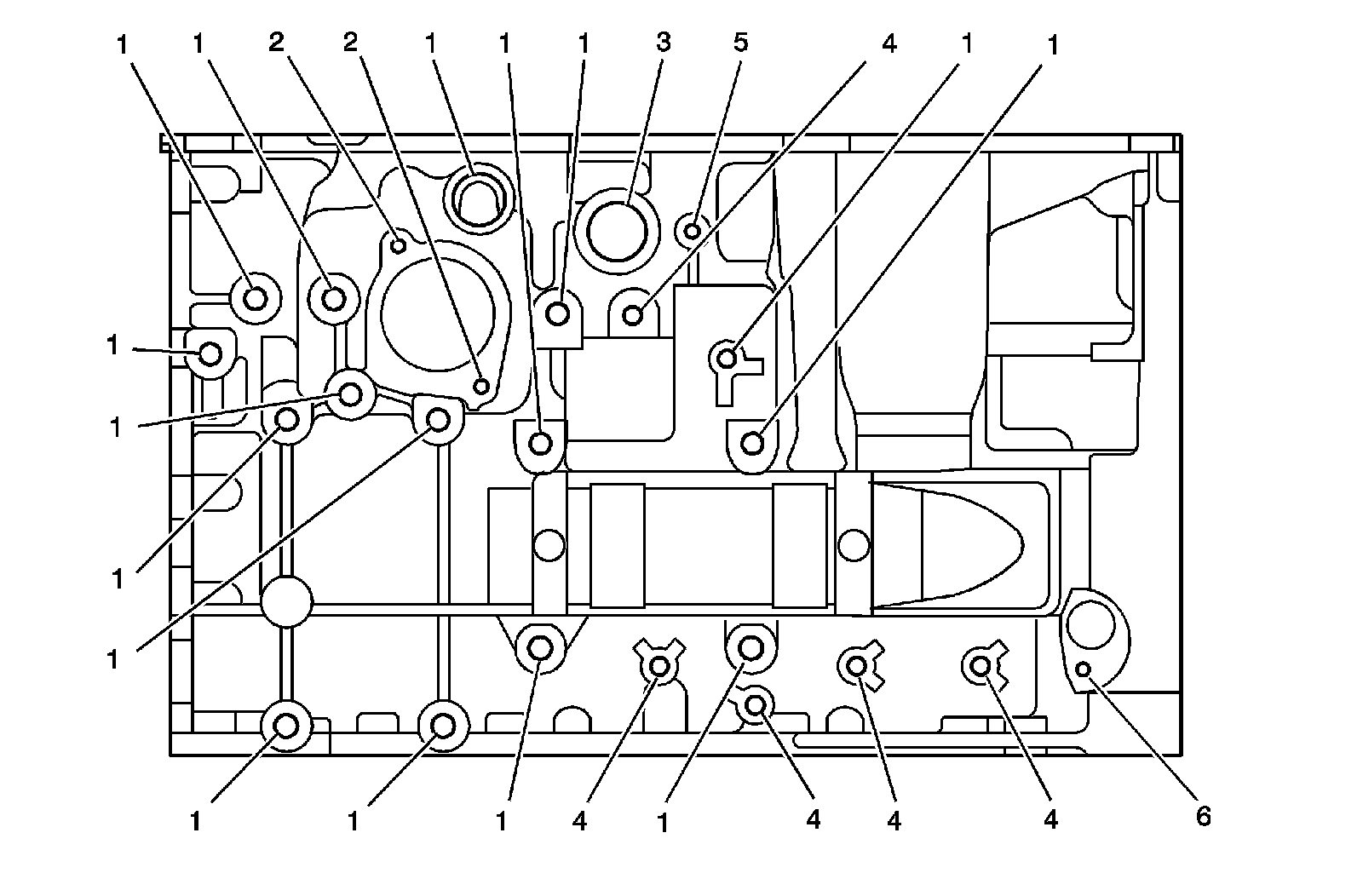

Engine Block - Left Side View:

Engine Block - Left Side View:

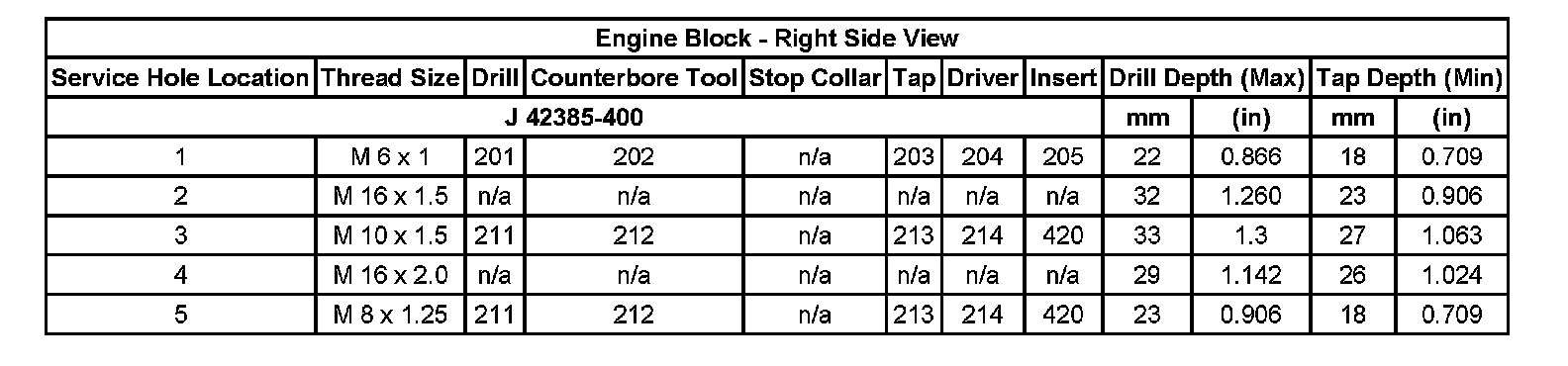

Engine Block - Right Side View:

Engine Block - Right Side View:

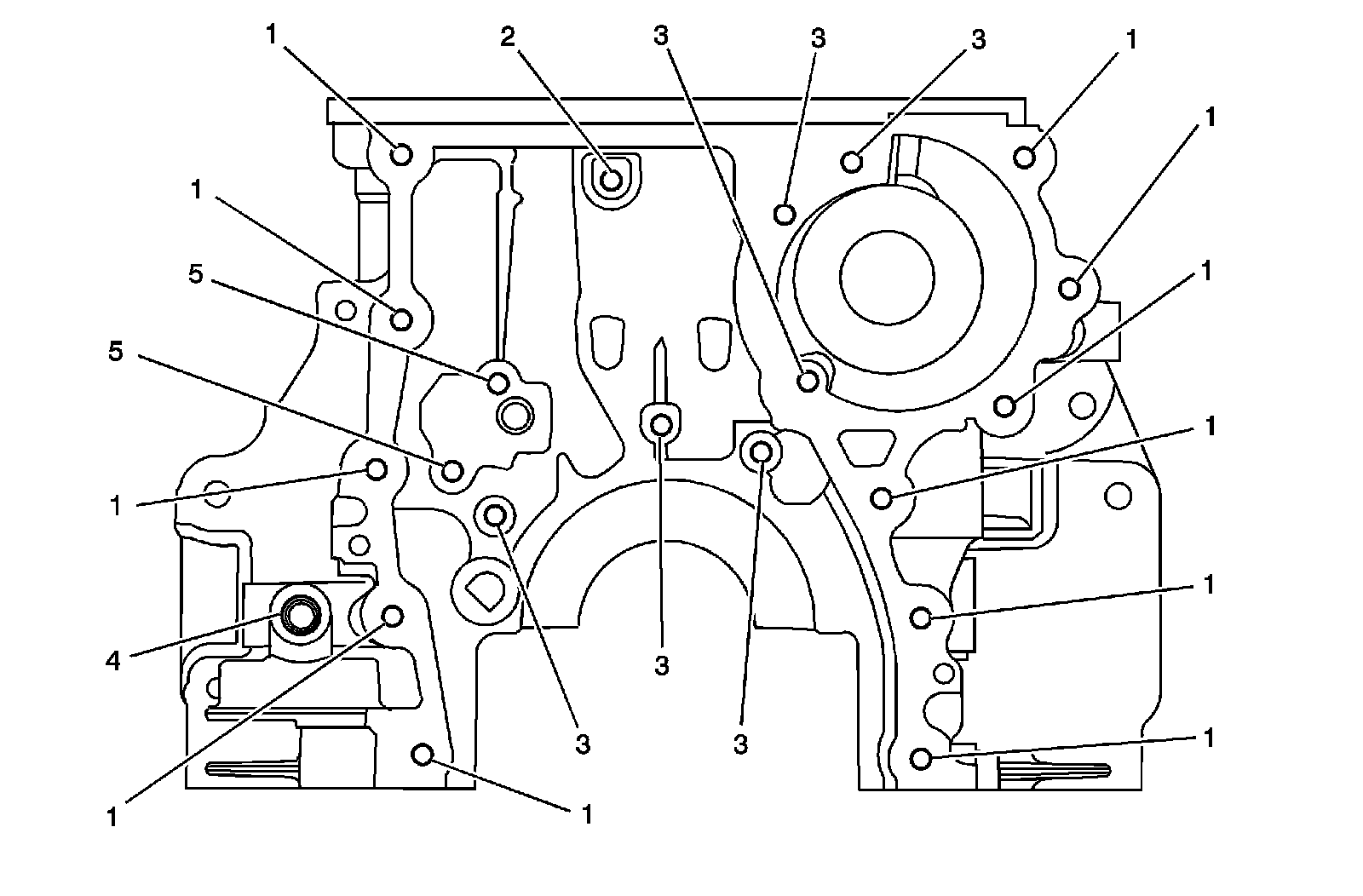

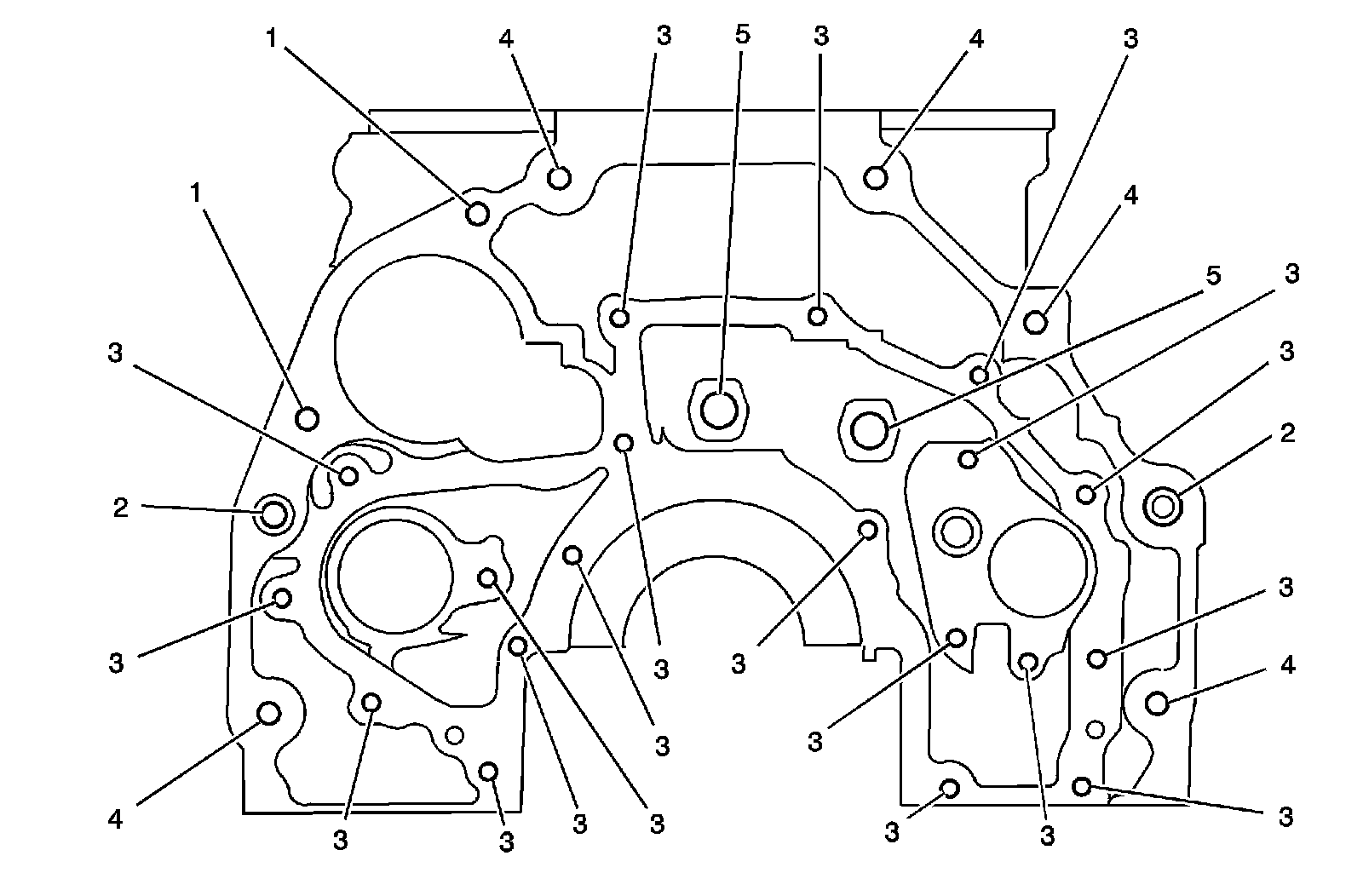

Engine Block - Front View:

Engine Block - Front View:

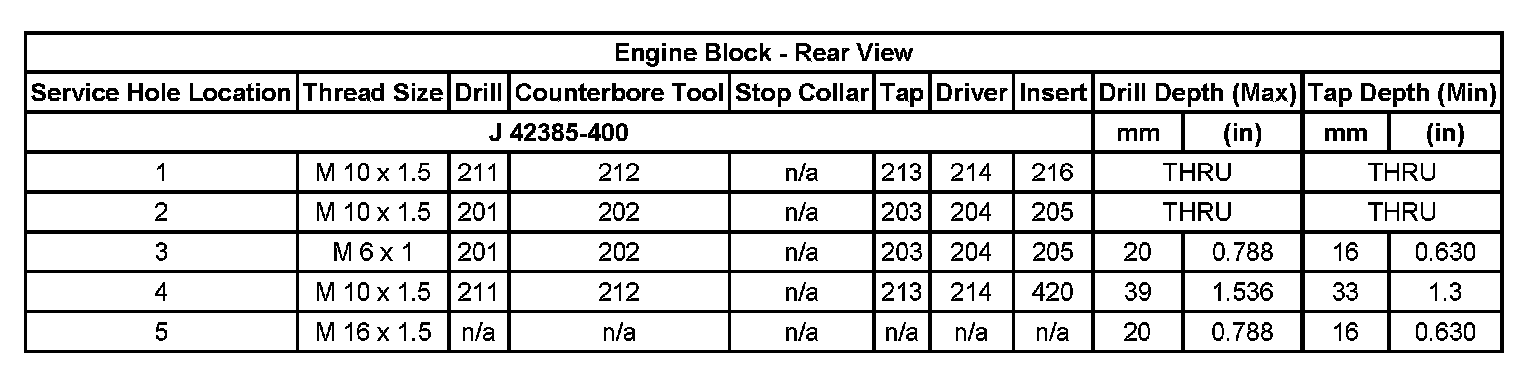

Engine Block - Rear View:

Engine Block - Rear View:

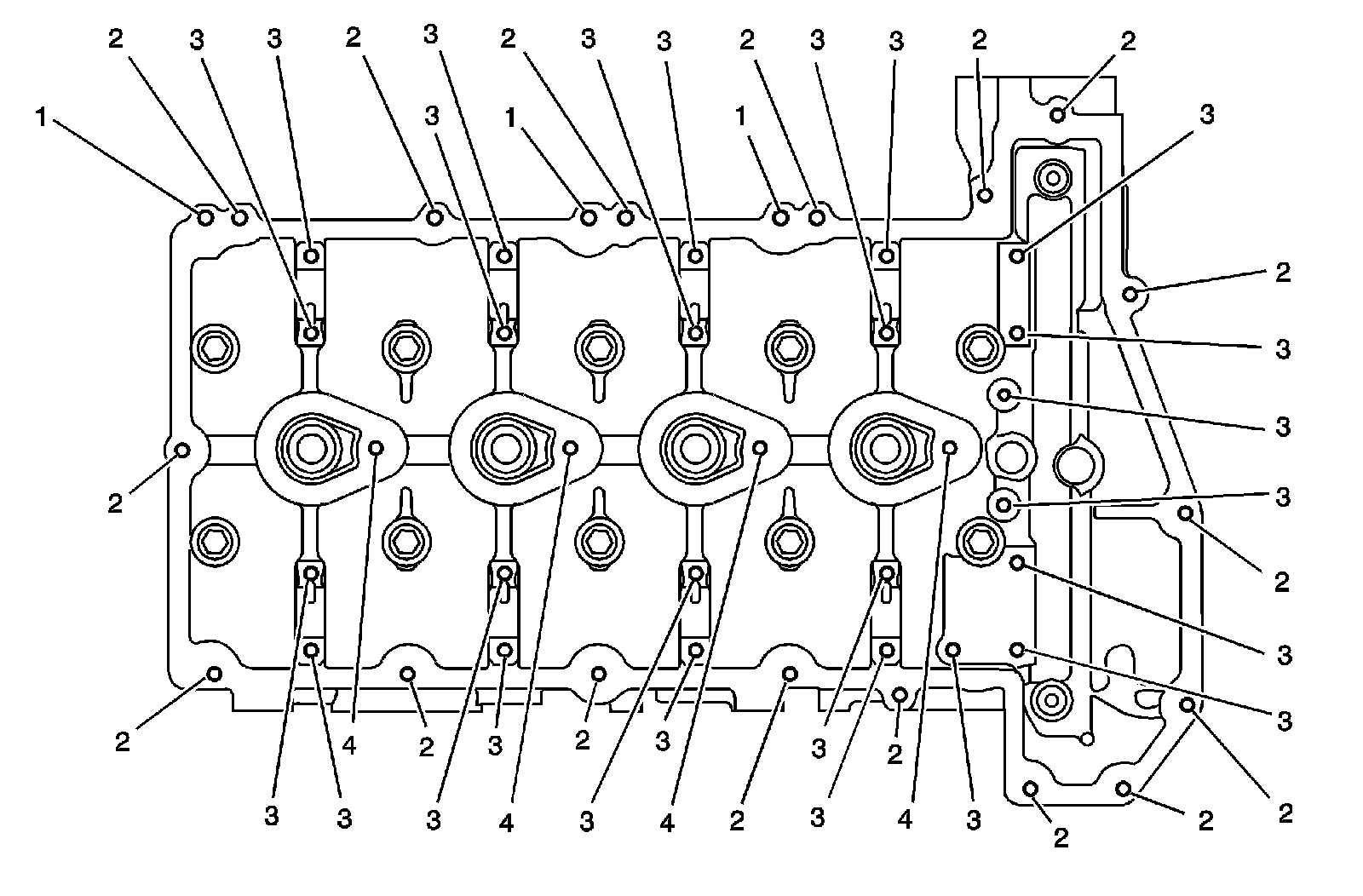

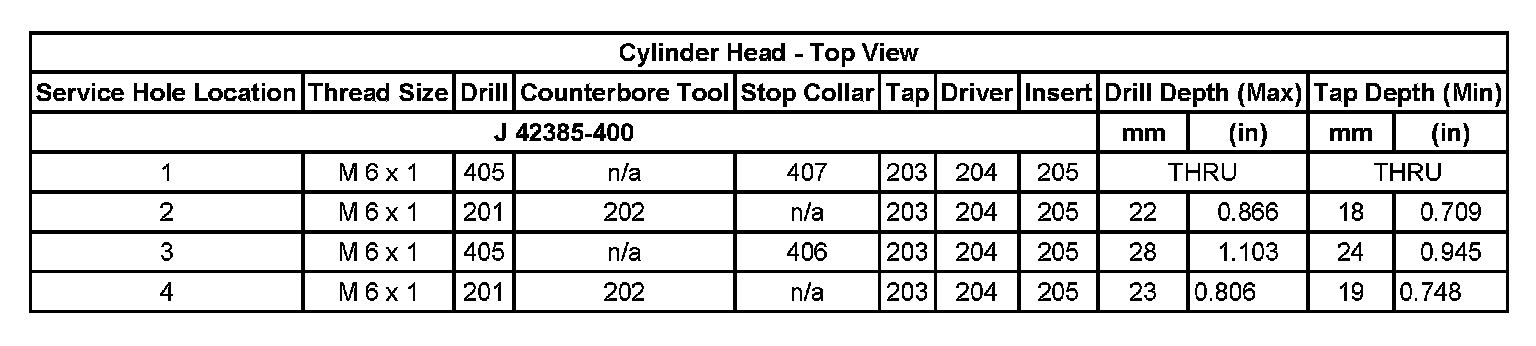

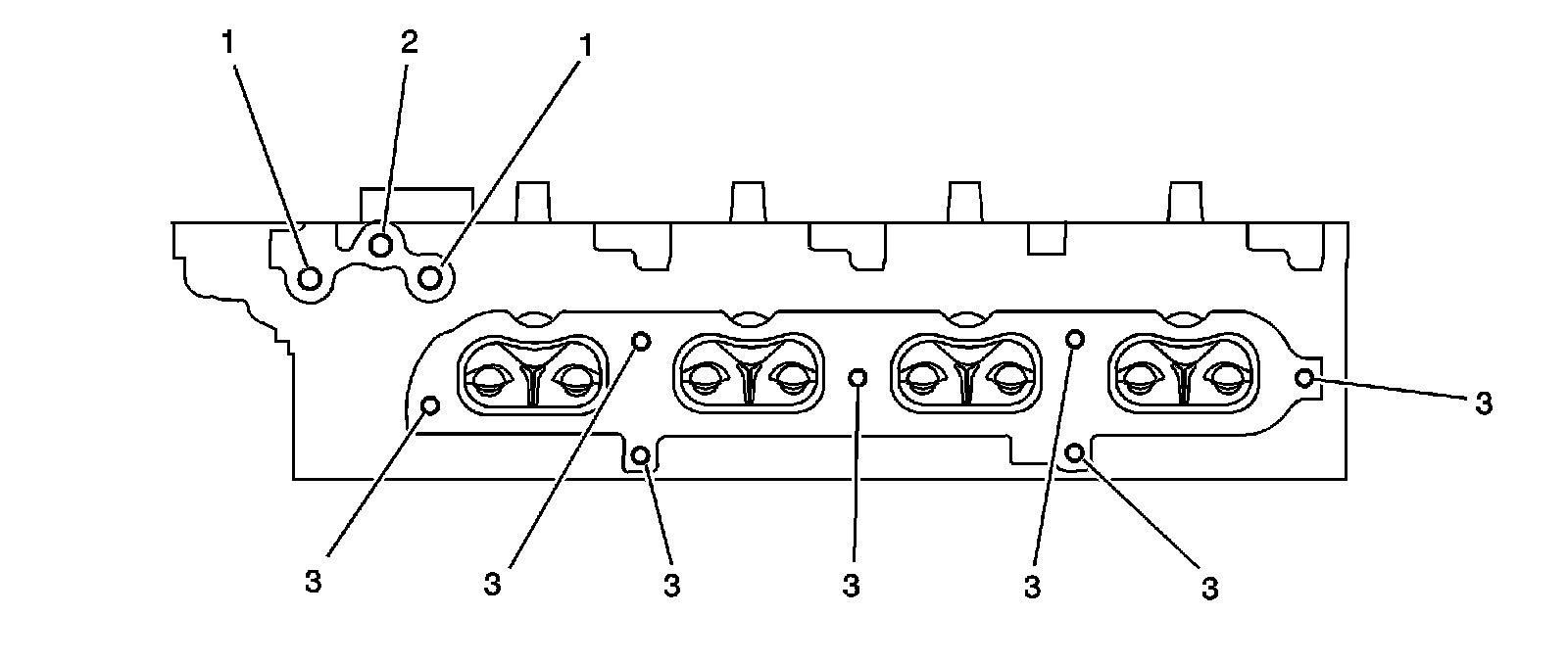

Cylinder Head - Top View:

Cylinder Head - Top View:

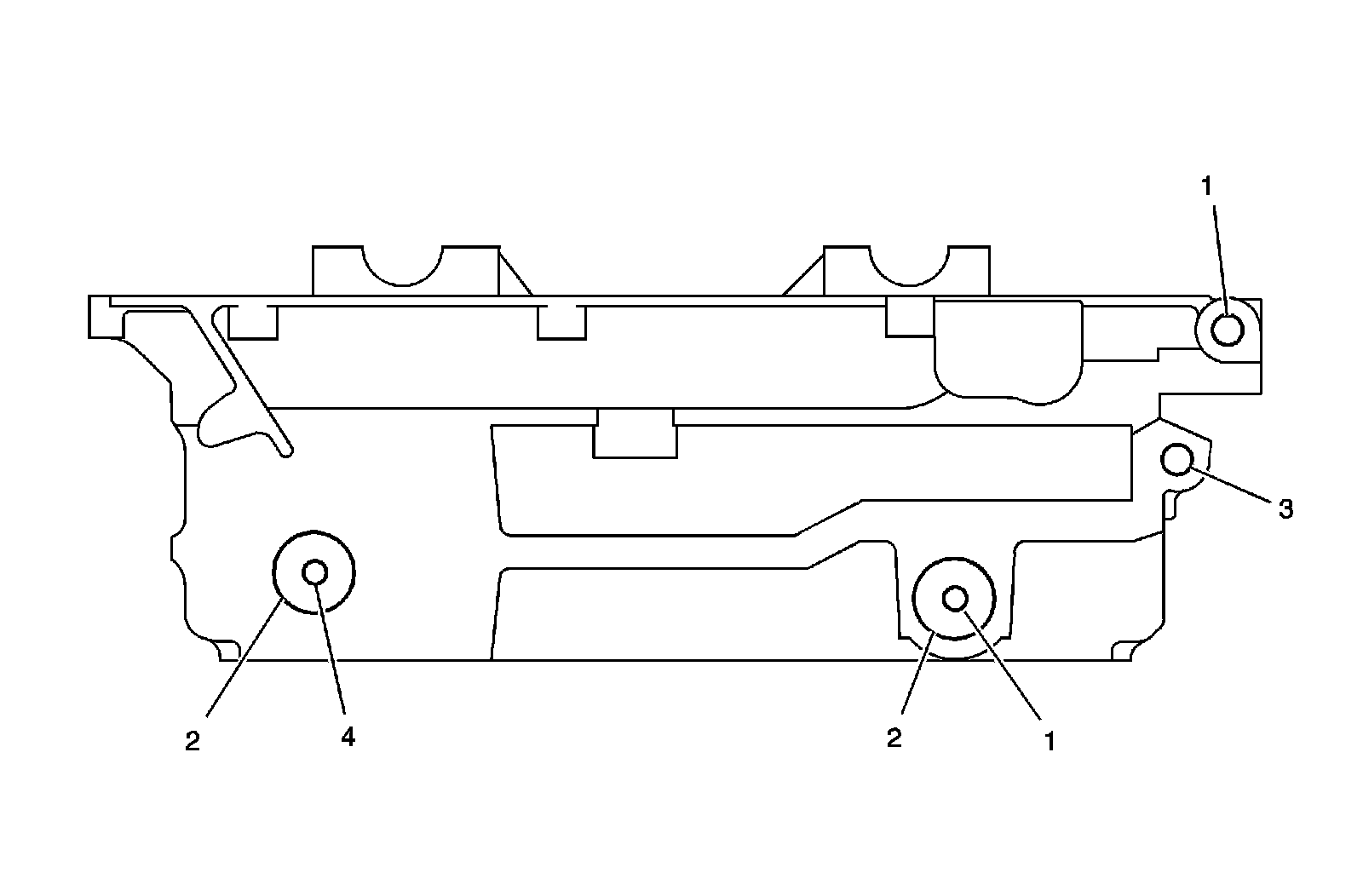

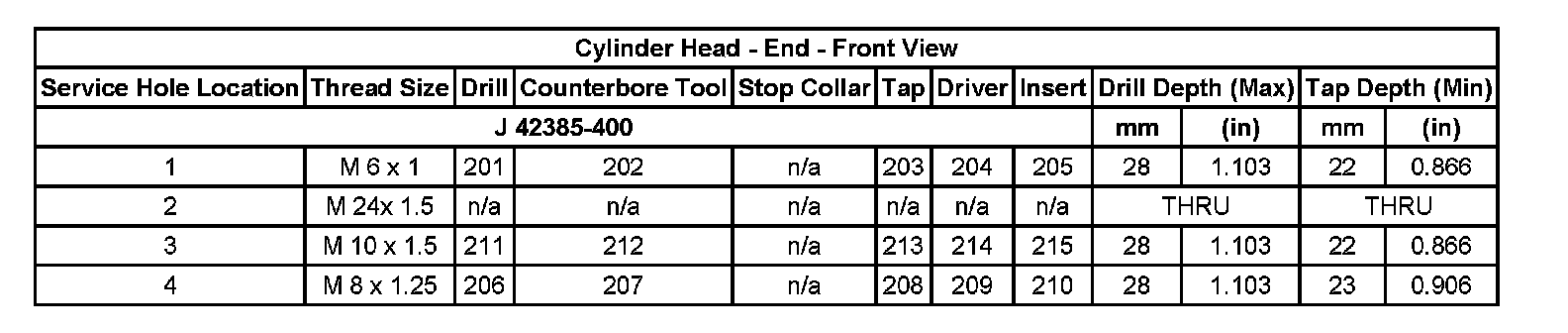

Cylinder Head - End - Front View:

Cylinder Head - End - Front View:

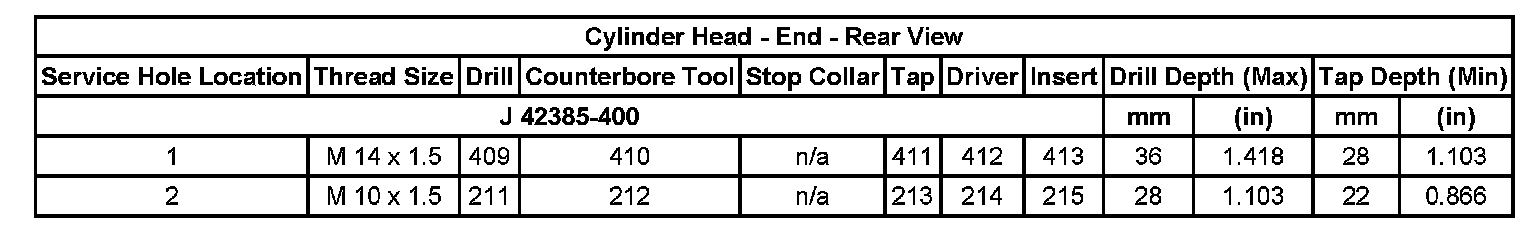

Cylinder Head - End - Rear View:

Cylinder Head - End - Rear View:

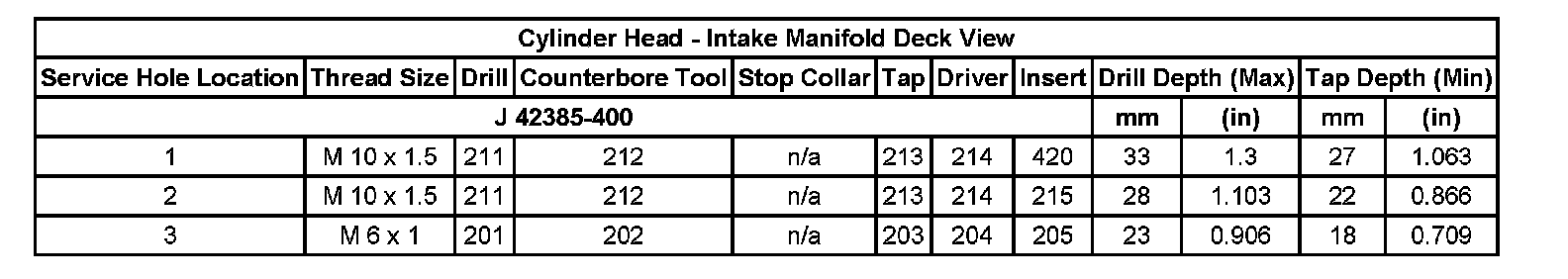

Cylinder Head - Intake Manifold Deck View:

Cylinder Head - Intake Manifold Deck View:
