Transmission Clearance Specifications



Transmission Clearance Specifications

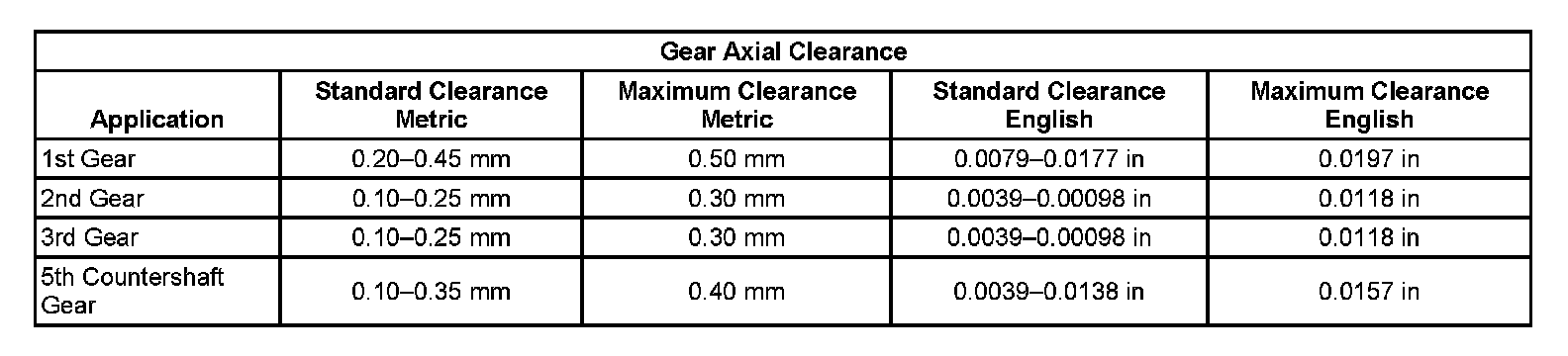

Gear Axial Clearance:




Gear Radial Clearance:

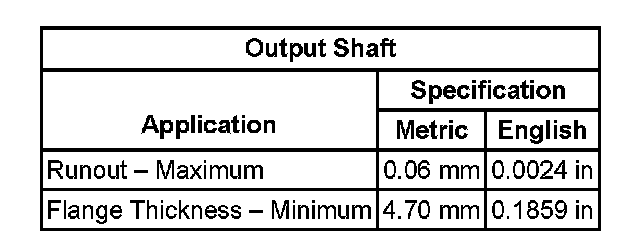

Output Shaft:

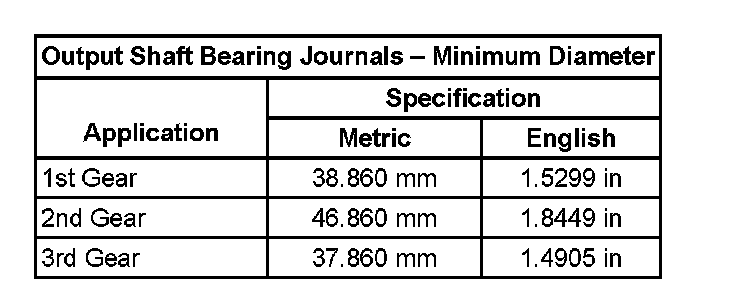

Output Shaft Bearing Journals - Minimum Diameter:

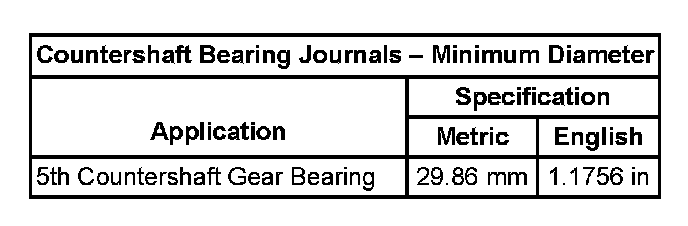

Countershaft Bearing Journals - Minimum Diameter:

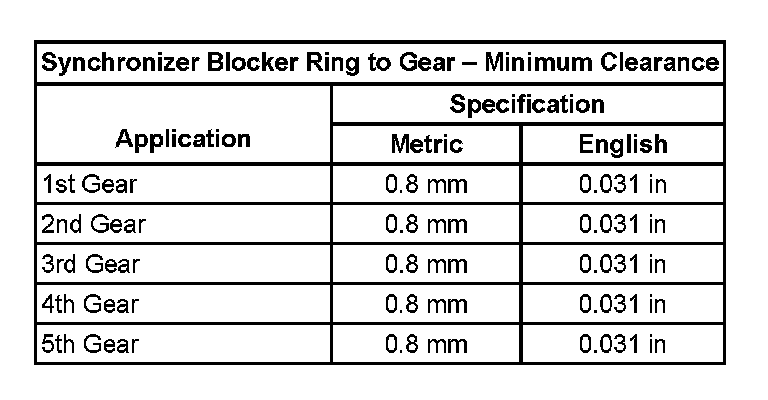

Synchronizer Blocker Ring To Gear - Minimum Clearance:




Synchronizer Sleeve To Shift Fork - Minimum Clearance:
