Control Arm Bushing: Service and Repair

Lower Control Arm Replacement (Rear Bushing)

^ Tools Required
- J 41805 Ball Joint Remover/Installer

Removal Procedure





1. Remove the front drive axle.
2. Remove the lower control arm.

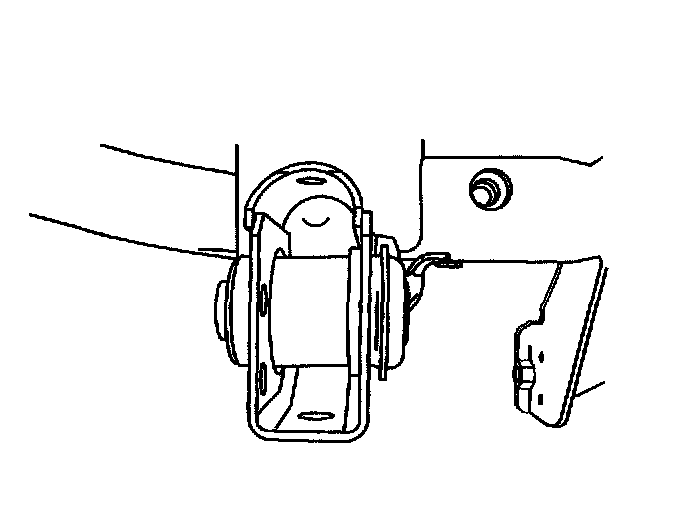

3. Before removing the bushing, measure and record the distance from the bushing flange to the bracket. This will be the distance that the new bushing will be installed to.

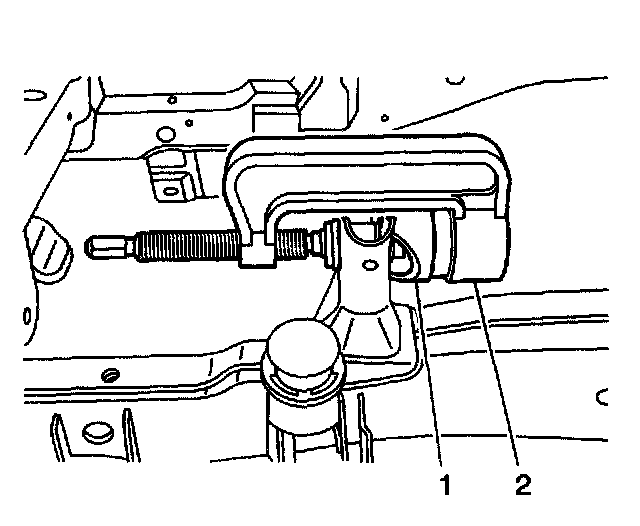

4. Remove the rear bushing. Use the J 41805.

Installation Procedure

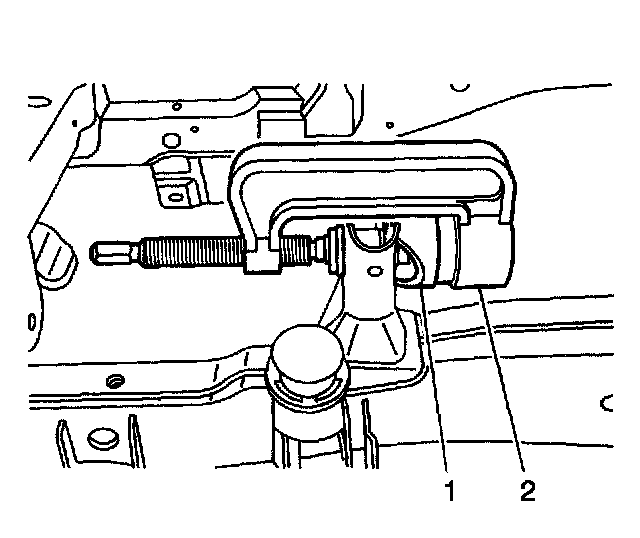

1. Install the rear bushing. Use the J 41805

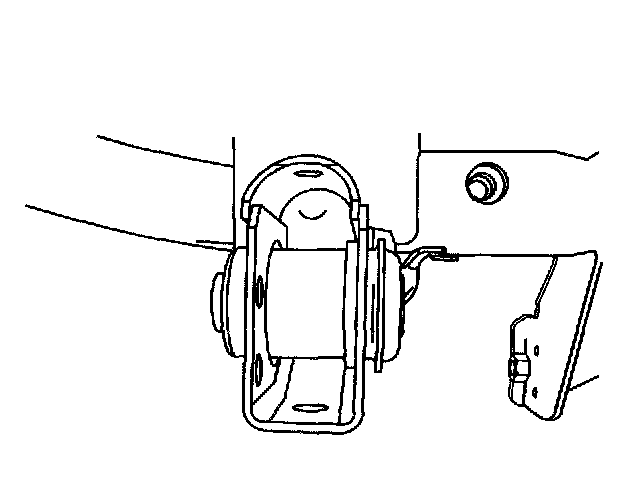

2. Install the rear bushing to the predetermined measurement taken earlier.
3. Install the lower control arm.
4. Install the front drive axle.
