4WD

Lower Control Arm Replacement (4WD)

^ Tools Required
- J 43631 Ball Joint Remover/installer

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the steering knuckle.
3. Remove the stabilizer shaft links from the lower control arm.
4. Remove the shock absorber nut and through bolt.
5. Remove the torsion bar as necessary.
6. Remove the lower control arm nuts and the washers.
7. Remove the lower control arm bolts.
8. Remove the lower control arm.

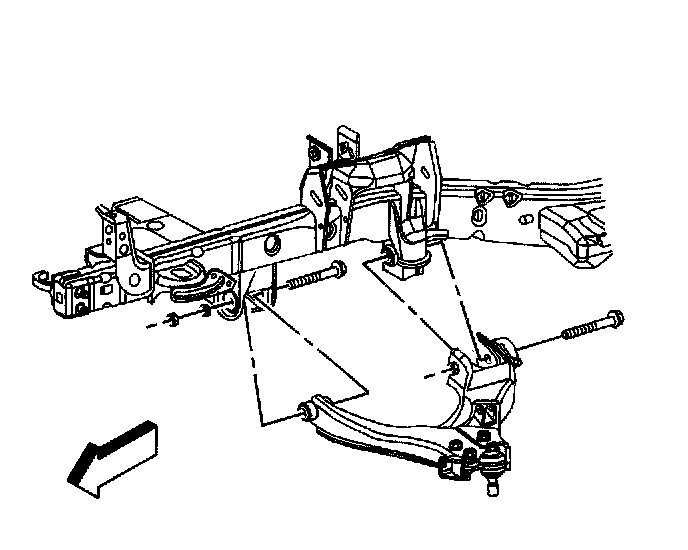

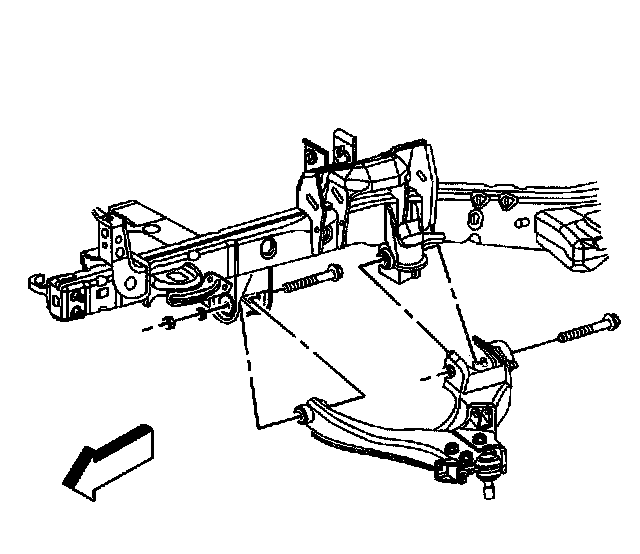

Installation Procedure





1. Install the lower control arm.
2. Install the lower control arm bolts.

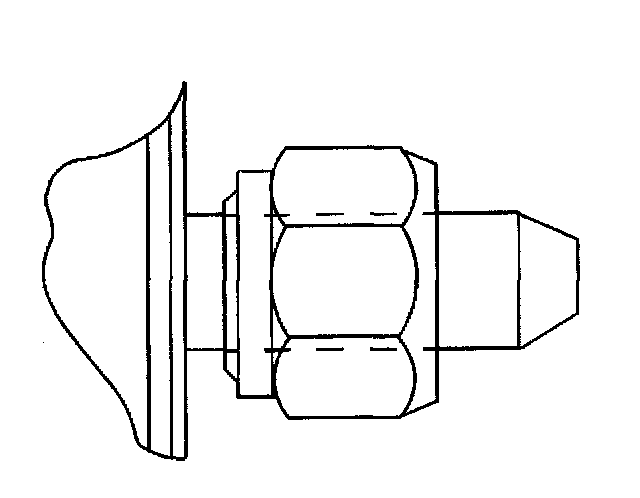

3. Install the washer (front bolt only) with the shoulder facing the control arm.

Notice: Refer to Fastener Notice in Service Precautions.

Important: The fasteners must be tightened in sequence. Tighten the rear nut first then the front nut.

4. Install the nuts.
^ Tighten the rear nut to 180 Nm (133 ft. lbs.).
^ Tighten the front nut to 165 Nm (122 ft. lbs.).
5. Install the steering knuckle.
7. Install the shock absorber through bolt and nut.
8. Install the stabilizer shaft links to the lower control arm.
9. Lower the vehicle.
