Instrument Panel Storage Compartment Replacement

Instrument Panel Storage Compartment Replacement

Removal Procedure

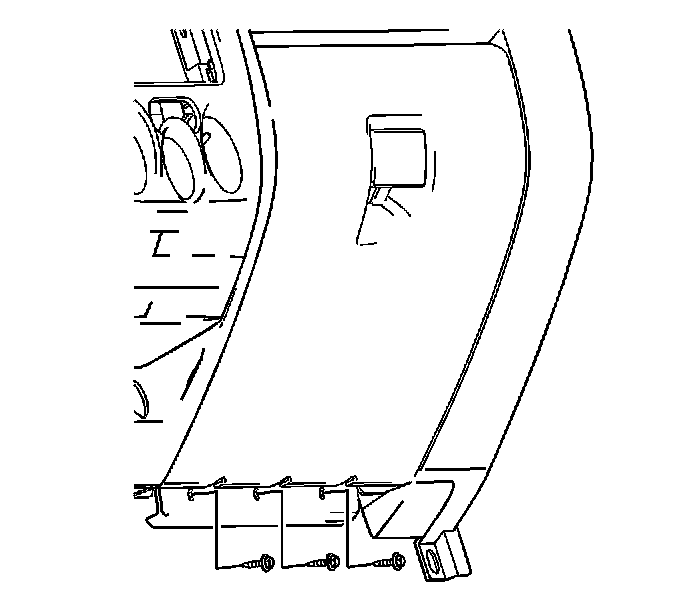

1. Remove the screws retaining the instrument panel (I/P) compartment assembly to the I/P.
2. Open the I/P compartment door.
3. Remove the I/P compartment assembly from the vehicle.

Installation Procedure




1. Position the I/P compartment assembly to the I/P.
2. Close and fully latch the I/P compartment door.

Notice: Refer to Fastener Notice.

3. Install the fasteners retaining the I/P compartment assembly to the I/P.

Tighten the fasteners to 3 N.m (27 lb in).

4. Ensure the alignment of the door allows for proper operation.
