Engine Controls Diagram 2



Engine Controls Schematics

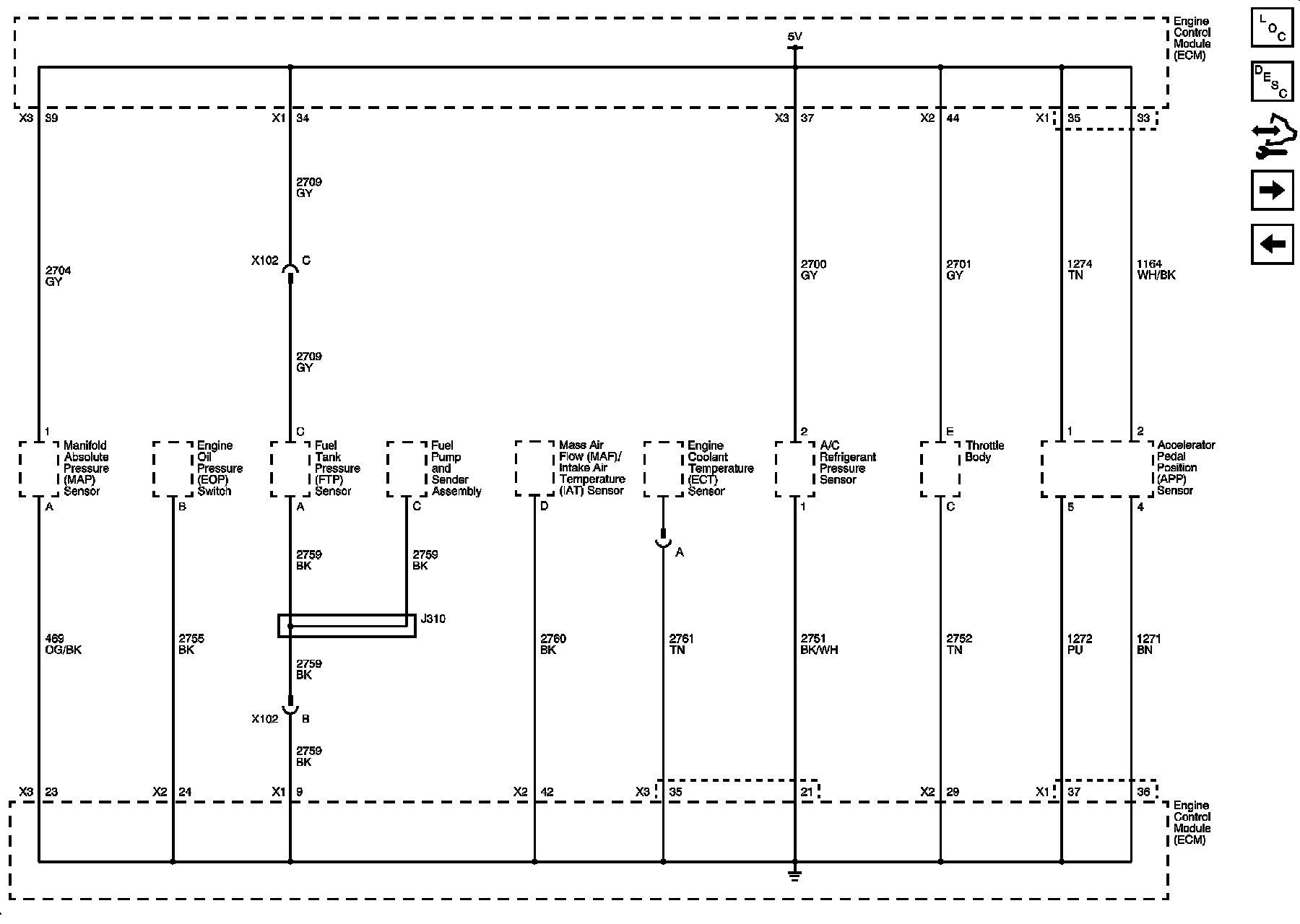

Engine Data Sensors - 5-Volt and Low Reference

Diagram 2:
