E-56

E-56 Glow Plug 1

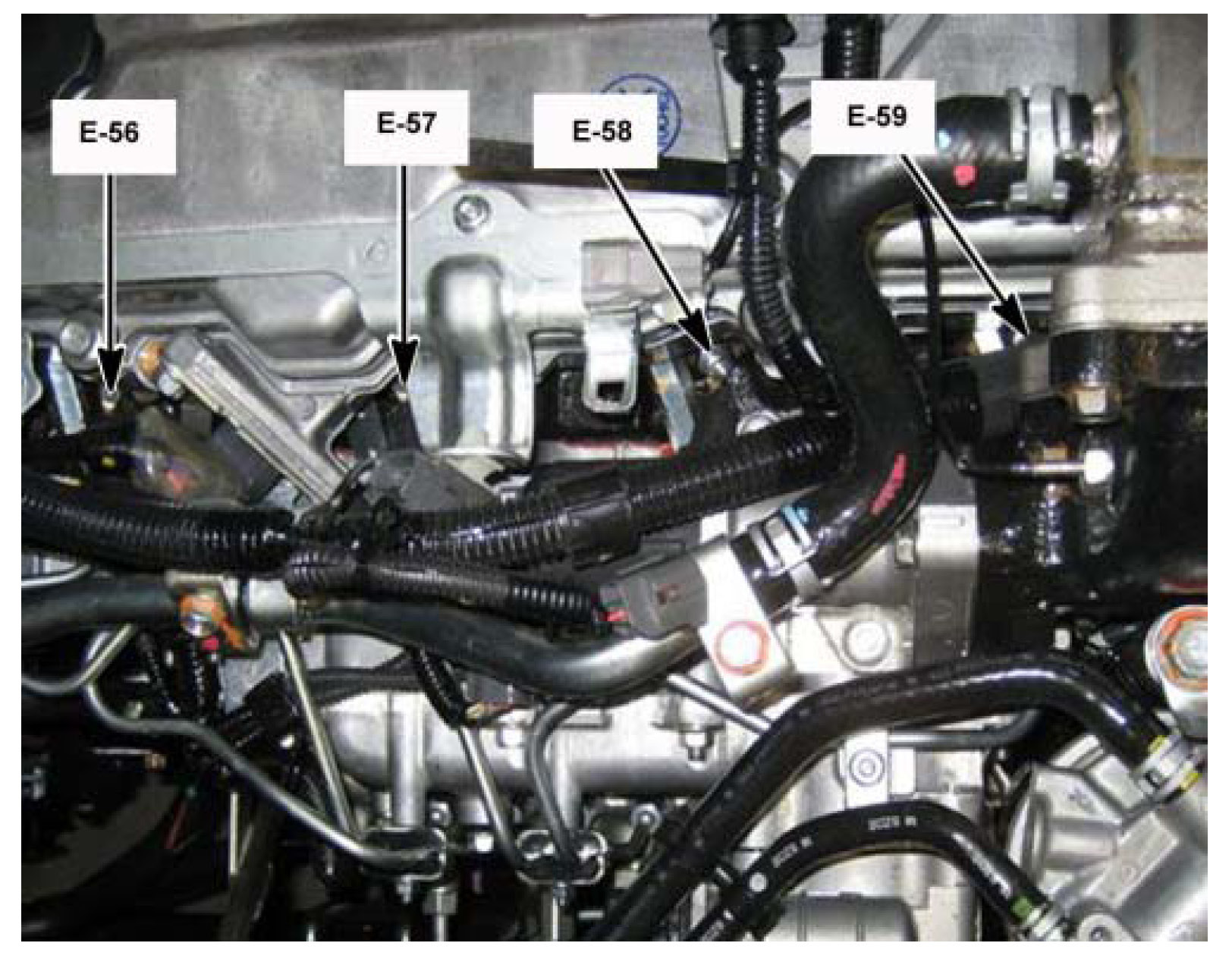

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 1 (5.2L)

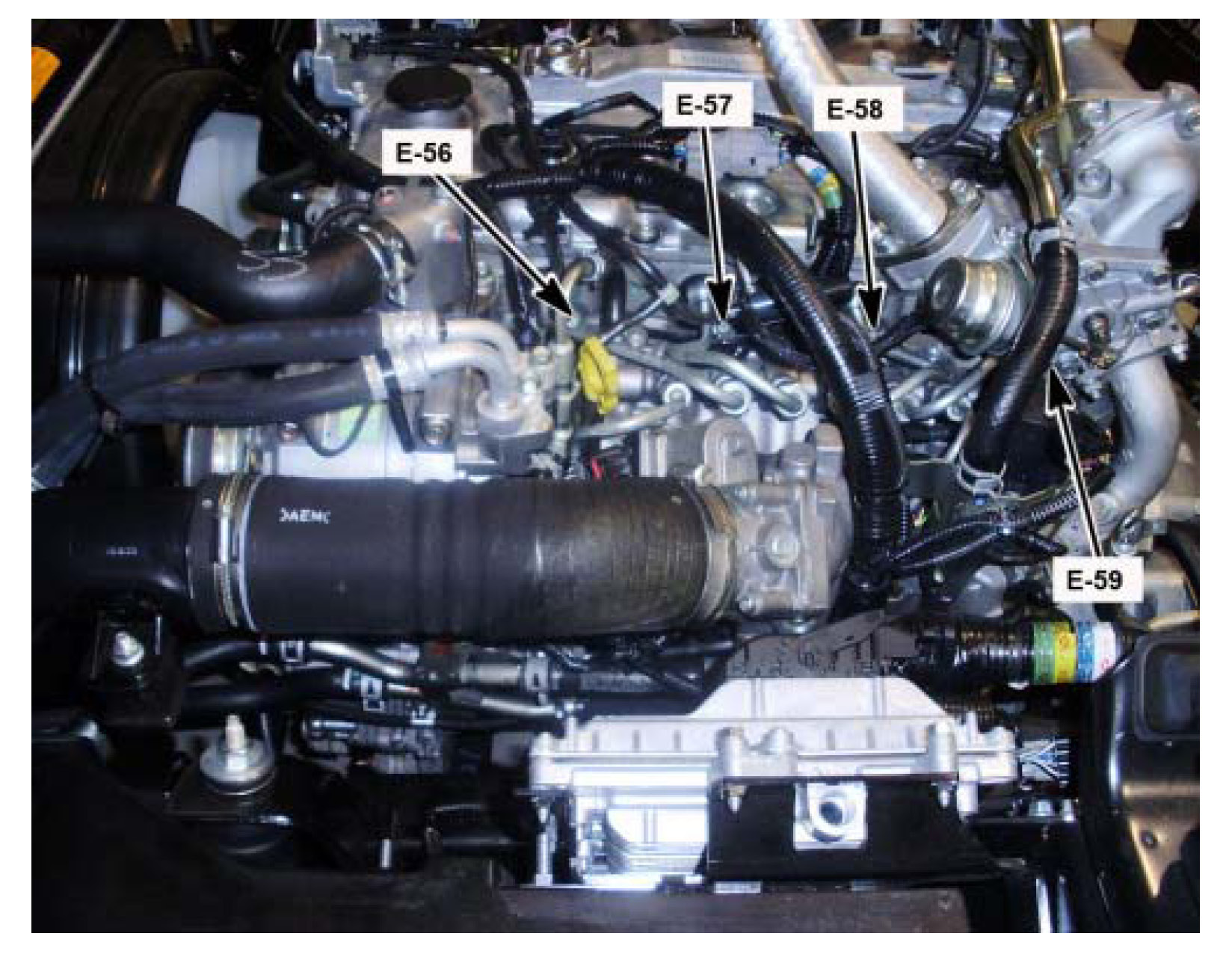

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 1 (3.0L)

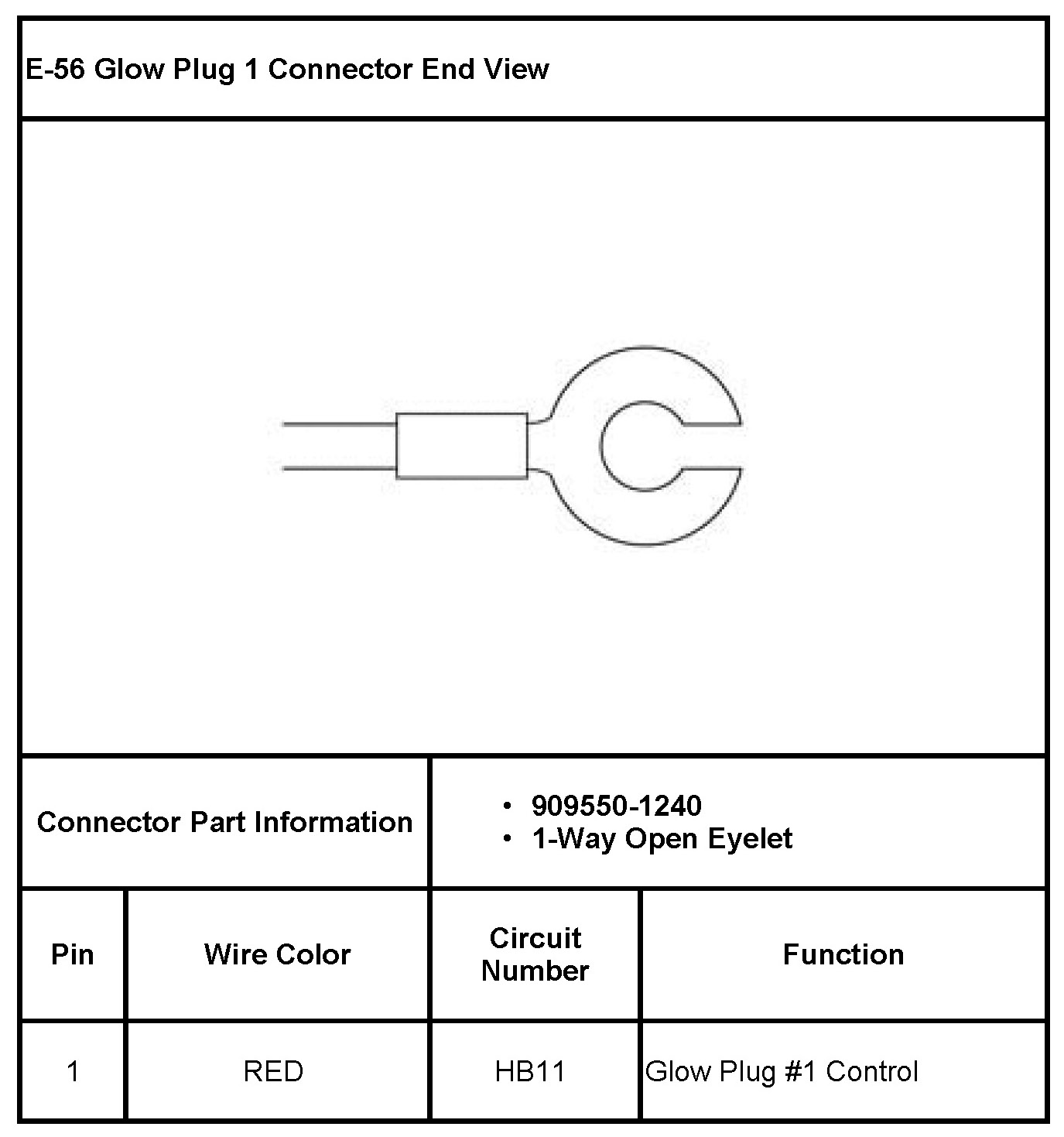

Glow Plug 1 (E-56)

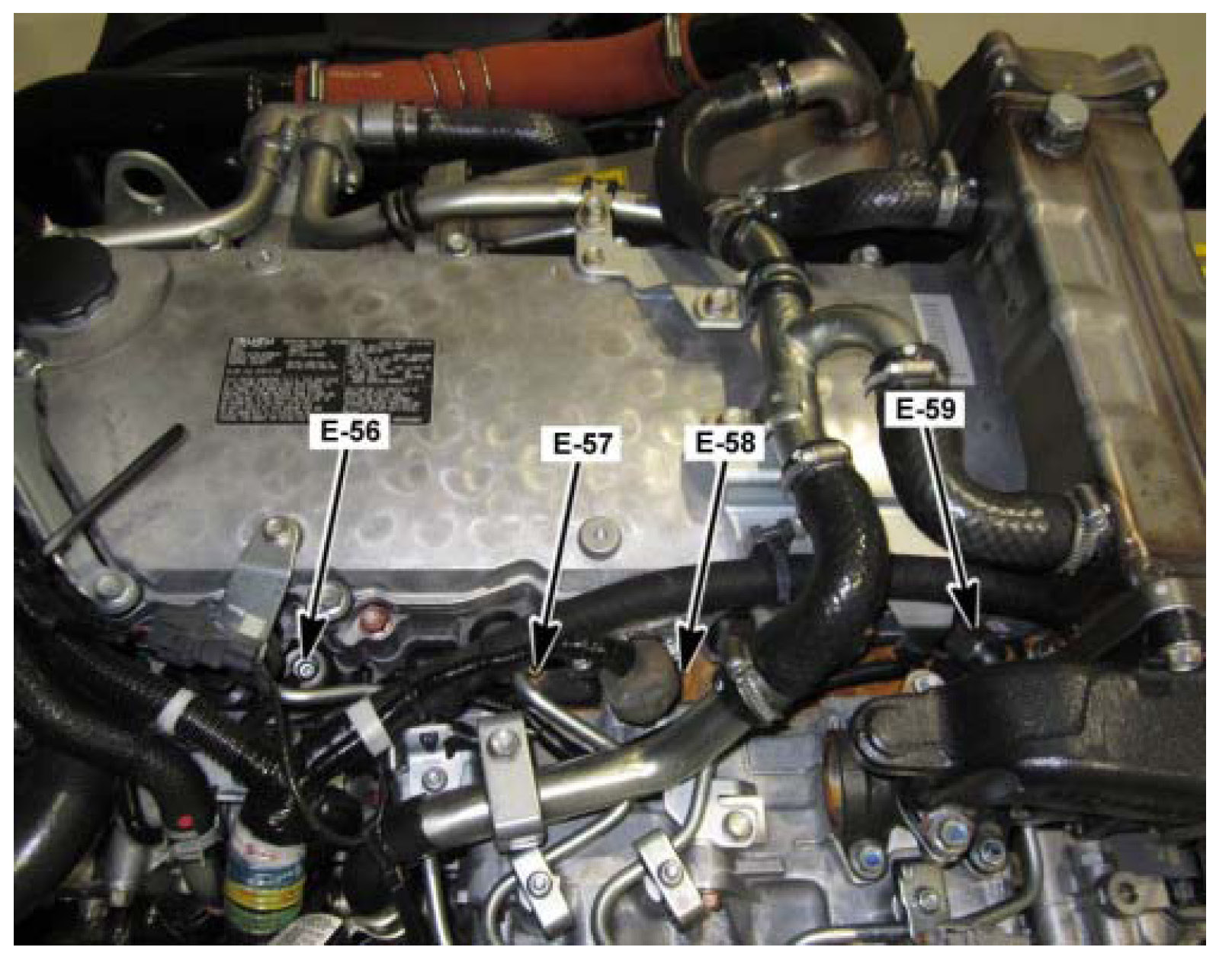

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 1 (5.2L)







On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 1 (3.0L)
