E-59

E-59 Glow Plug 4

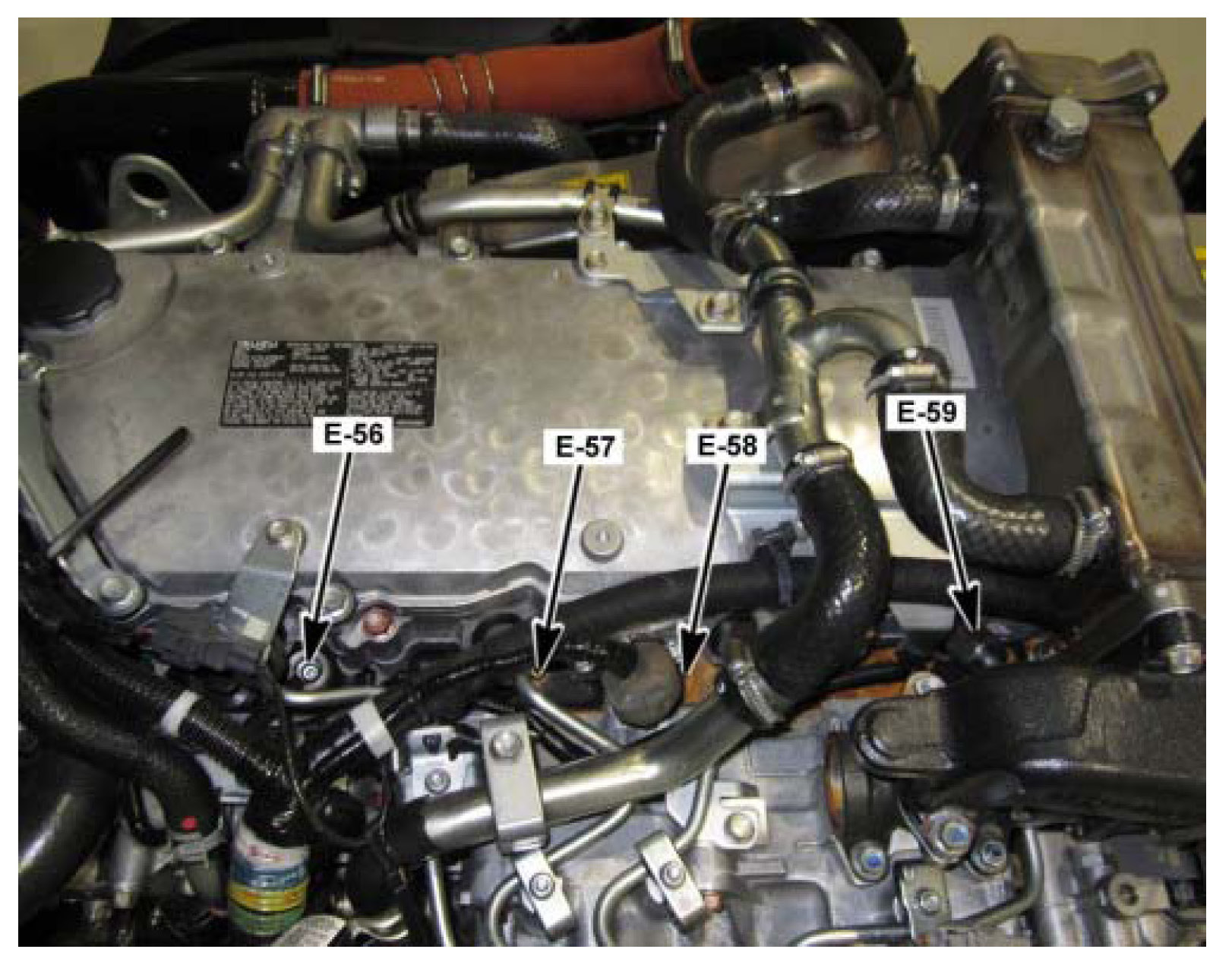

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 4 (5.2L)

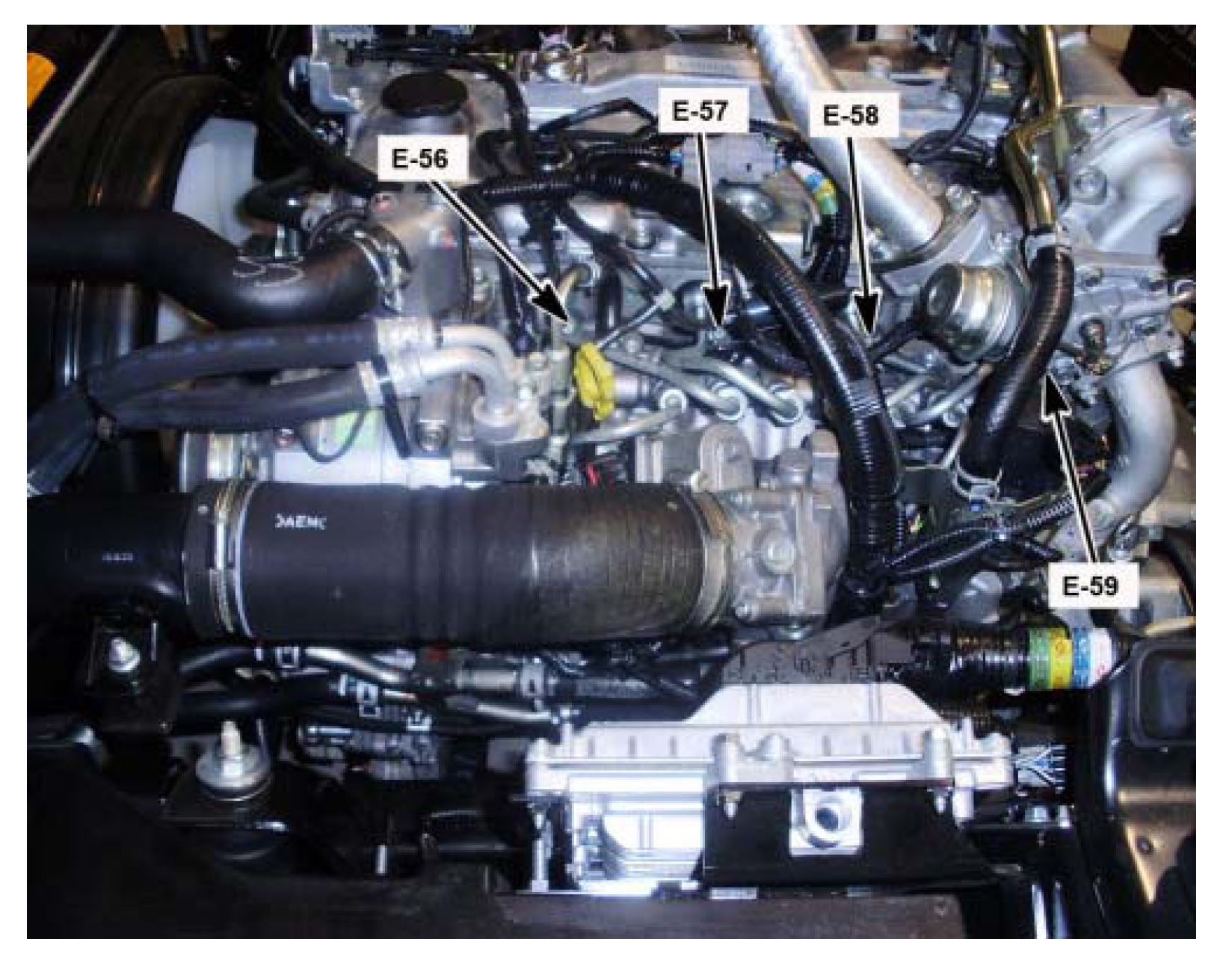

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 4 (3.0L)

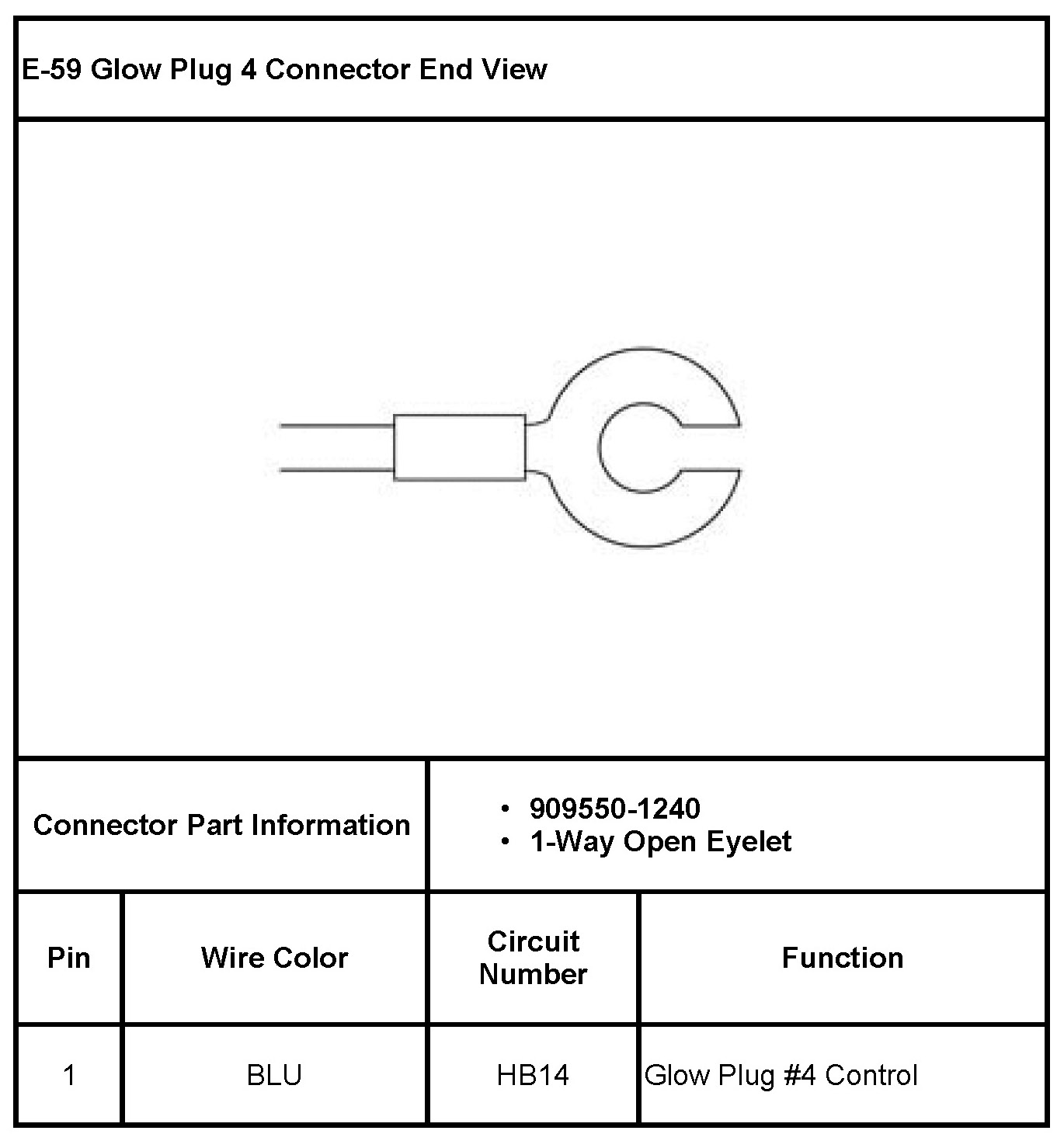

Glow Plug 4 (E-59)

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 4 (5.2L)

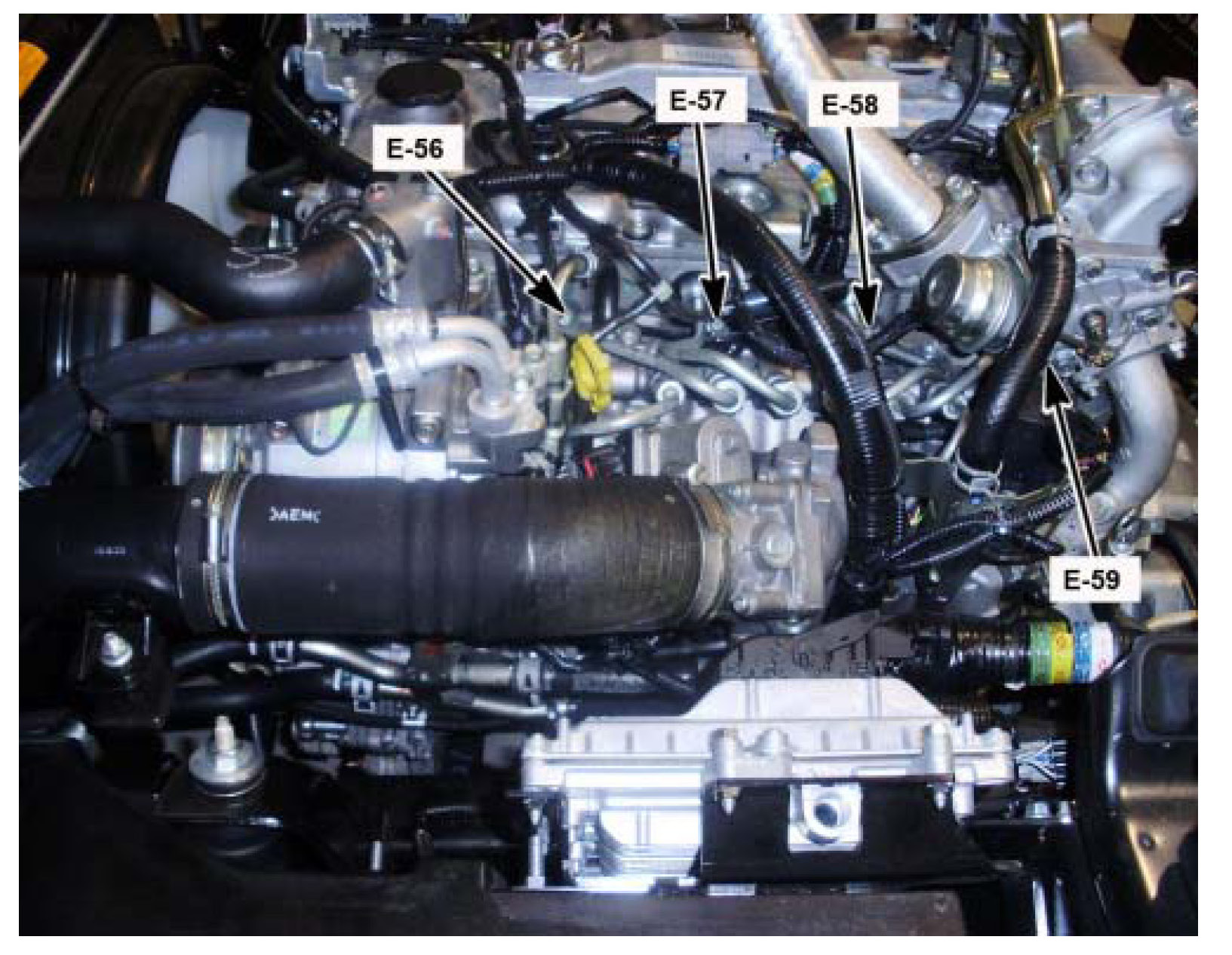

On the Upper Left Side of the Engine, In the Cylinder Head, At Cylinder 4 (3.0L)
