J-112

J-112 Transmission Fluid Temperature (TFT) Sensor

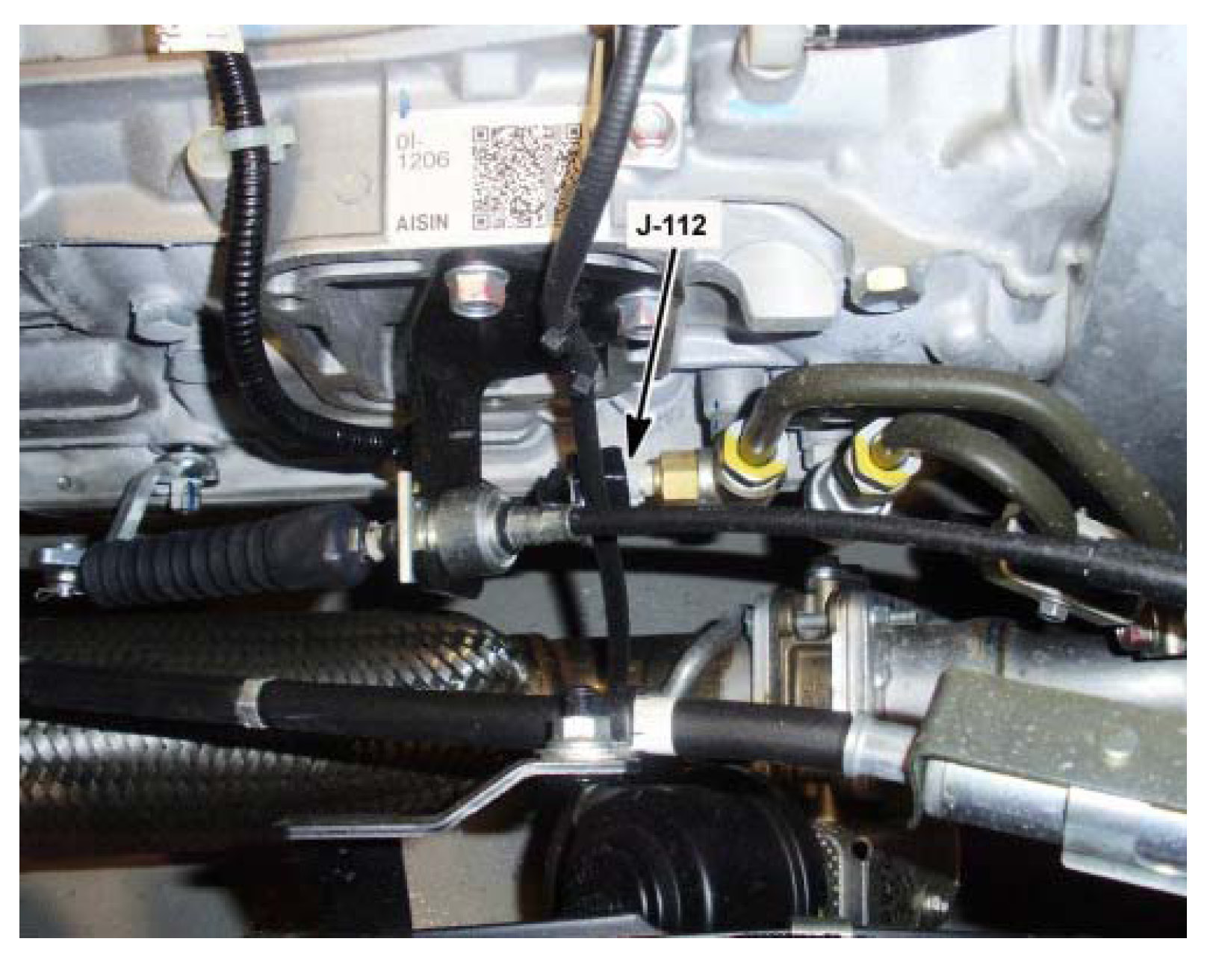

Right Side of the Transmission, In the Cooler Line Connection (5.2L)

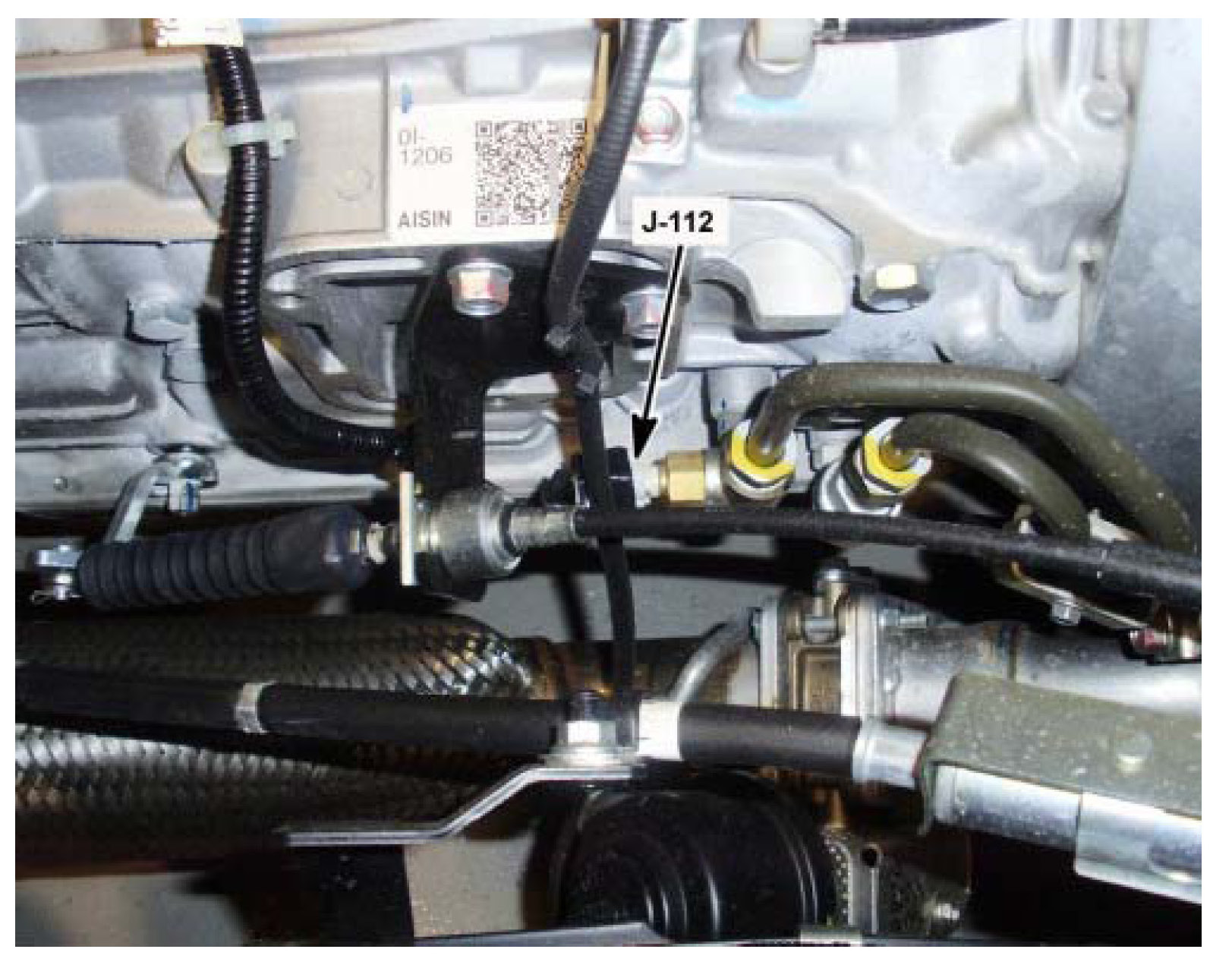

Right Side of the Transmission, In the Cooler Line Connection (3.0L)

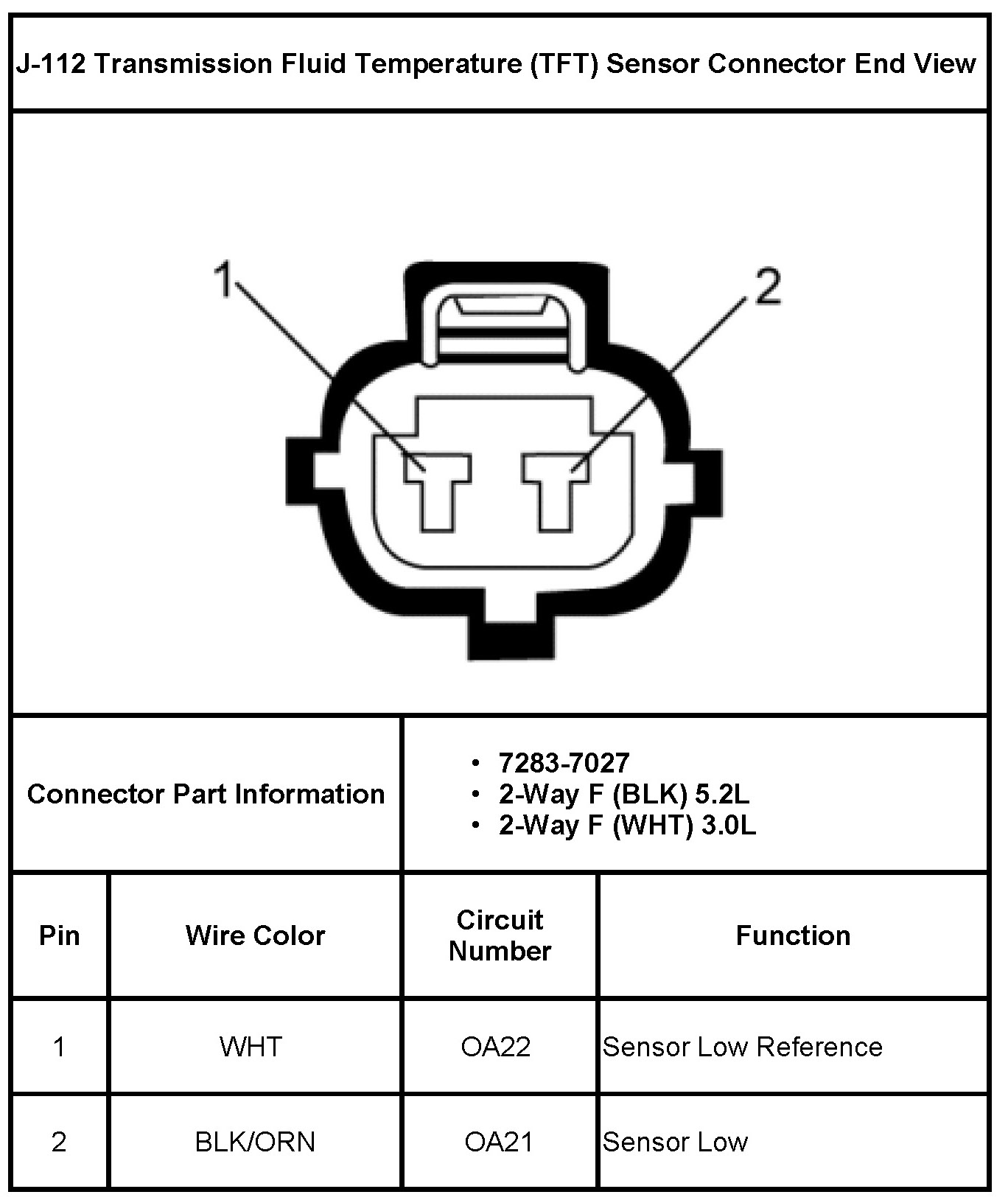

Transmission Fluid Temperature (TFT) Sensor (J-112)

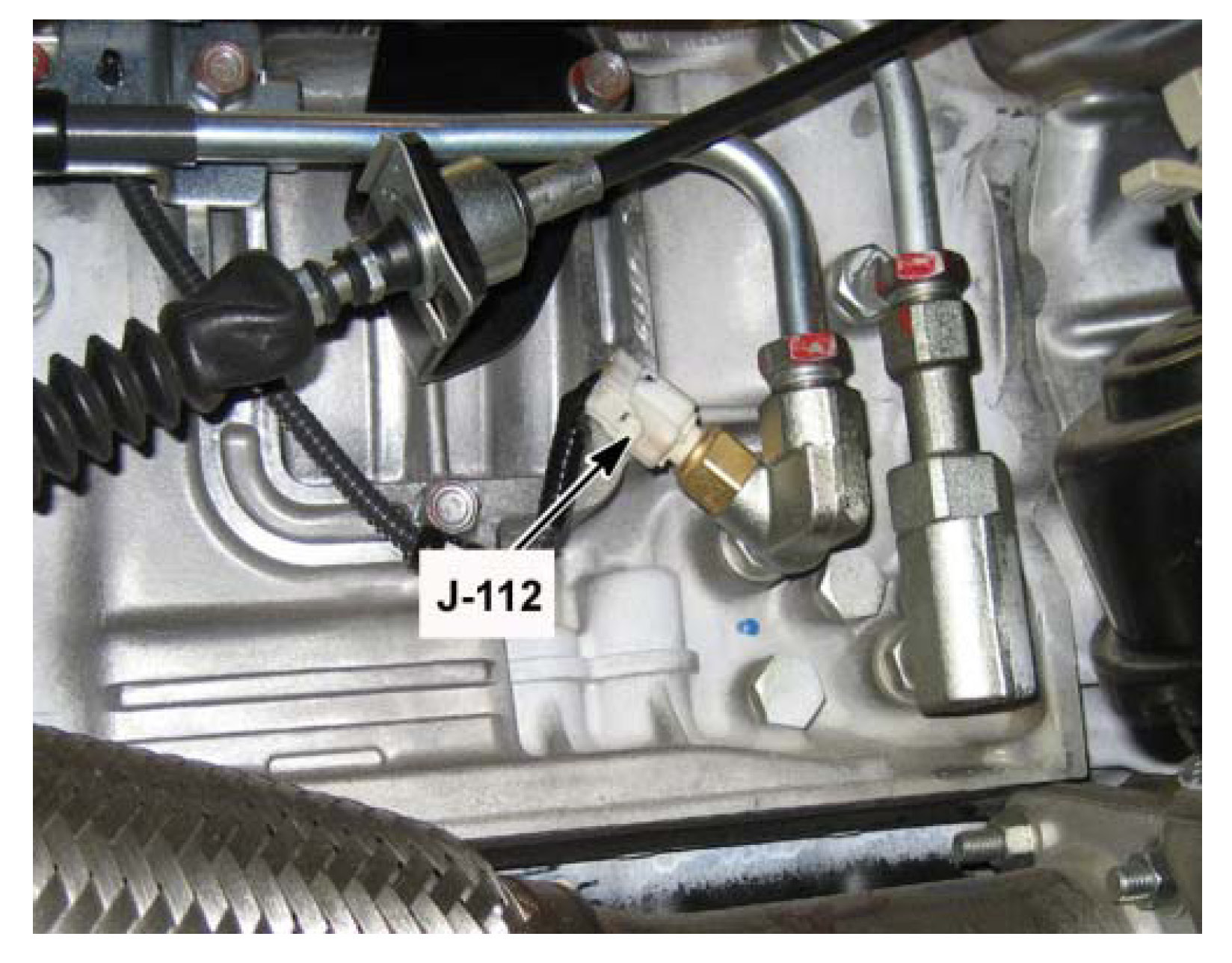

Right Side of the Transmission, In the Cooler Line Connection







Right Side of the Transmission, In the Cooler Line Connection
