Vanden Plas L6-4.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
>>
Test B - High Secondary Voltage
Test B - High Secondary Voltage
Test B:
1.

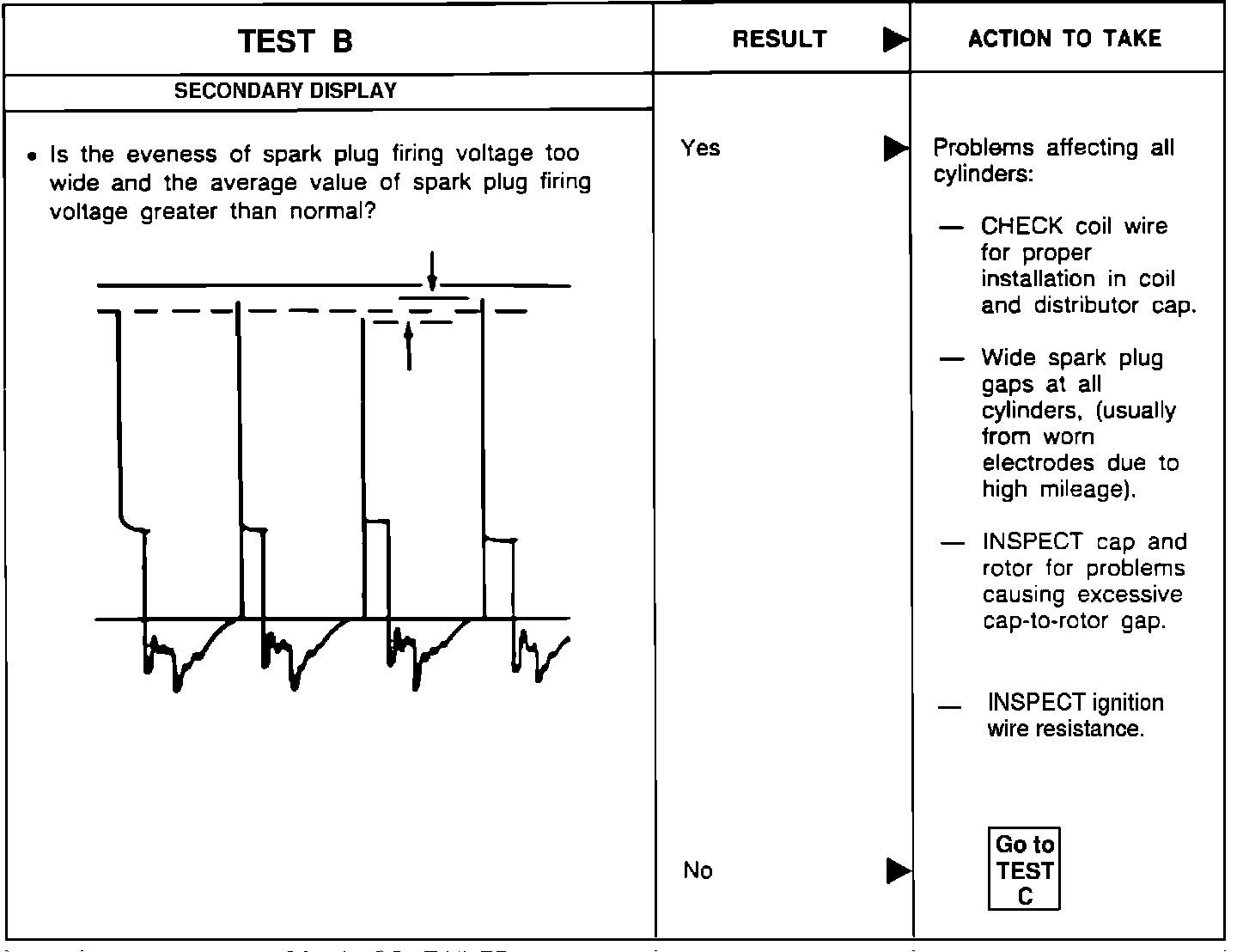

If the the secondary pattern is above 15k volts or there is a great difference between cylinders, check the areas indicated on the chart.
2.
If the pattern is not as indicated above, proceed to
TEST C
.
