PCV Heater: Service and Repair

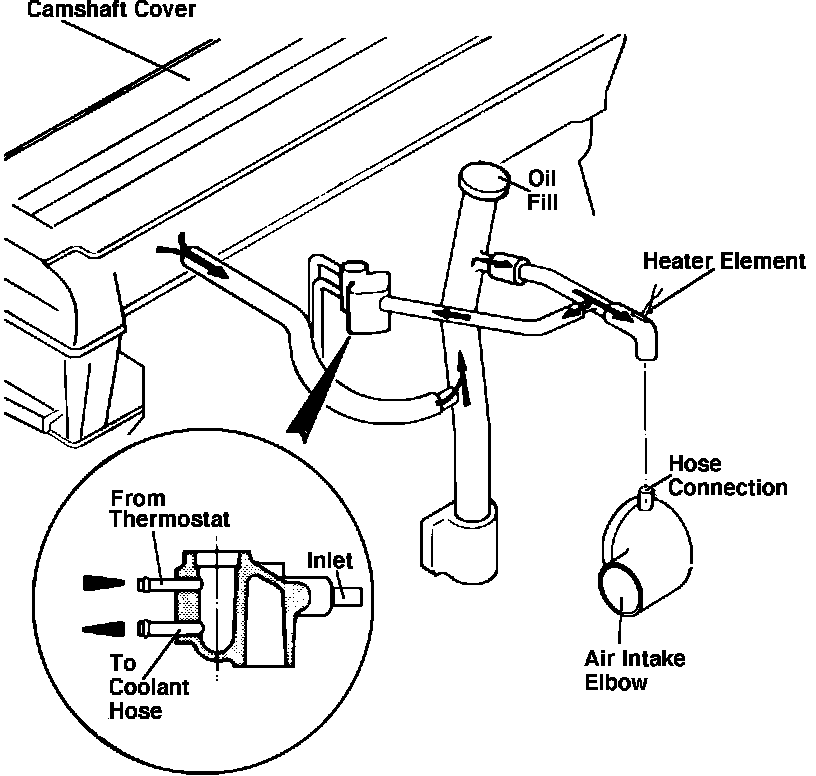

Fig. 11 PCV System:
1.
Disconnect hose from oil filler tube.
2.
Disconnect hose from part throttle control orifice housing.

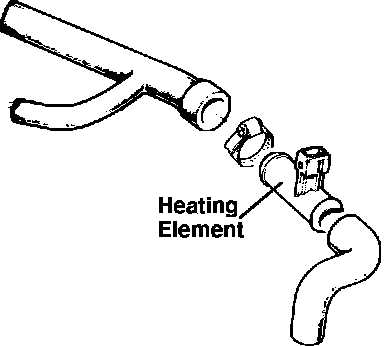

Fig. 14 Engine Heater Breather Element:
3.
Disconnect hose from heater element.
4.
Disconnect clamps from hose and remove hose from vehicle.
5.
Reverse procedure to install.
