Wheel Alignment - Tire Wear/Handling Problems

91jaguar05

57-11


Tire Wear/Handling Problems - Wheel Alignment
MODEL
All DATE 6/91


ISSUE:

Wheel alignment specifications.





ACTION:

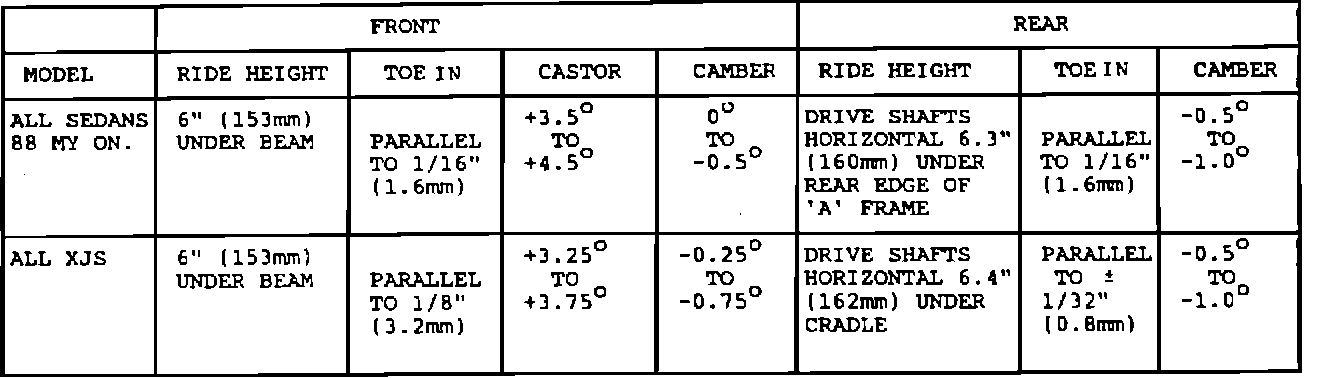

Use the following specifications when adjusting wheel alignment.


^ When adjusting the toe to correct abnormal tire wear or a handling problem, set the toe to the nearest limit. DO NOT set to the mid-limit dimension.

EXAMPLE: 1991 MY Sedan - Measured toe-in 3/16", reset to 1/16" toe-in.

^ When setting the toe after repairing/replacing associated suspension components, set the toe to the mid-limit dimension.

EXAMPLE: 1991 MY Sedan - After front suspension rebuild, set toe-in to 1/32".


NOTE: Do not check and reset front end alignment at PDI or at routine services. Only adjust after repairs or when abnormal wear or vehicle handling problems are present.

When checking/adjusting the front end alignment, ALWAYS use the appropriate special tools to set the ride height.


SPECIAL TOOL INFORMATION:

Sedan 1988 MY Onwards:

JD 133 Camber tie down links (front)
JD 145 Camber tie down links (rear)

XJ-S and XJ6 Series III:

JAG 1505 Camber setting blocks
JD 25B Rear camber setting links
