RADIO FAILURE DUE TO WATER ENTRY


Model: ALL Date: MARCH, 1991

KEY POINTS: INSTALLATION OF CONDENSATION
DEFLECTOR SHIELD


ISSUE:

Radio problems can be caused by condensation dripping off the A/C case and entering the radio through the ventilation holes. Water damage may cause intermittent loss of radio channel(s), no radio operation or static output.

ACTION:

On vehicles prior to VIN 575153 (Sedans) and 163790 (XJ-S), a condensation deflector shield MUST be installed whenever a replacement radio is installed, OR whenever a center console is disassembled (and a deflector shield has not been previously installed).

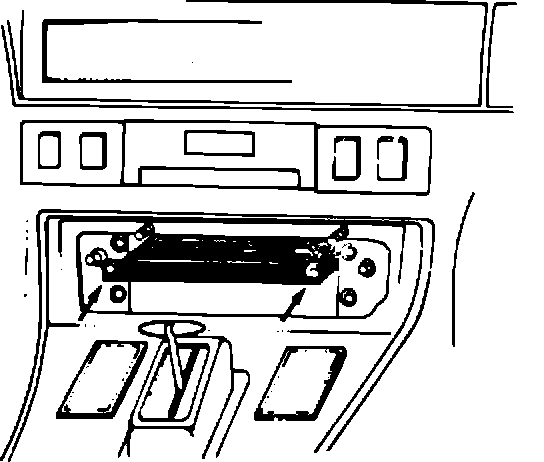

FIG. 1 (Sedan):

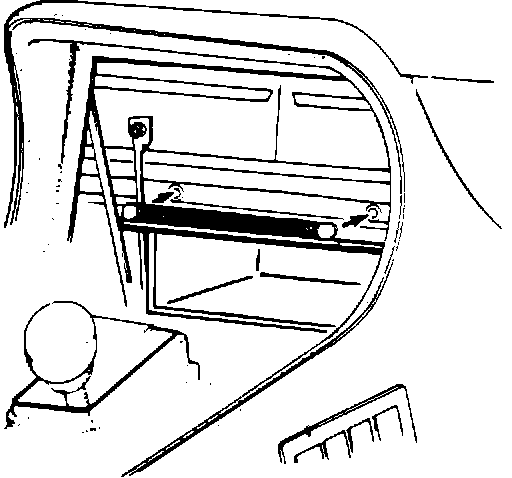

FIG. 2 (XJ-S):

Install the deflector shield as indicated in fig. 1 (Sedan) and fig. 2 (XJ-S).


PARTS INFORMATION:

Part Number: Description: Qty.:

CBC 6921 Deflector Shield (Sedan) 1

CBC 8047 Mounting Stud (Sedan only) 2

CBC 9193 Deflector Shield (XJ-S) 1

WARRANTY INFORMATION:

Fault Code: 7STB
Repair Operation Number: 82.91.08/01
Time Allowance: 0.10 hrs.
