Air Register: Service and Repair

Dash Side Outlets

Removal
Left or Right Side

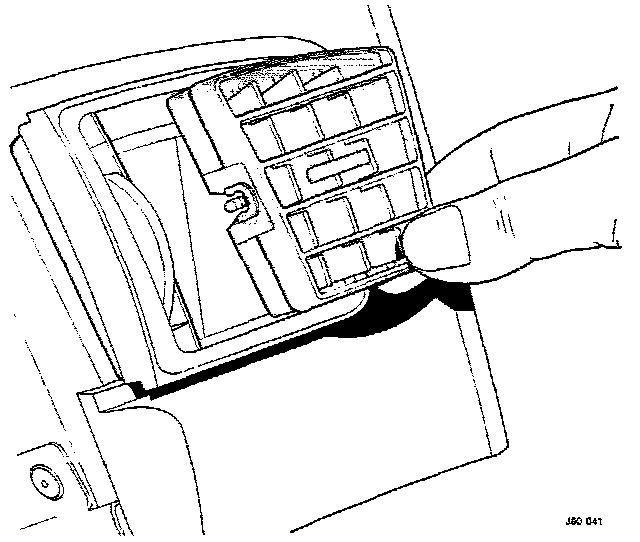

1. Carefully pry the appropriate ventilator outlet direction vent from the housing.
2. Release the housing retaining clips and remove the ventilator from the fascia.

NOTE: Installation is the reverse of the removal procedure.
