ABS Relay - Rattle

86-129

ABS Main/Pump Relay - Rattle - Repair Procedure

MODEL: 94 MY Sedans DATE: 4/94

ISSUE:

An interference condition may occur between the driver's side knee bolster and the ABS Pump Relay, mounted on the left-hand side of the Blower Motor Assembly.

The Pump Relay may become dislodged resulting in a rattling noise coming from the bolster area.

ACTION:

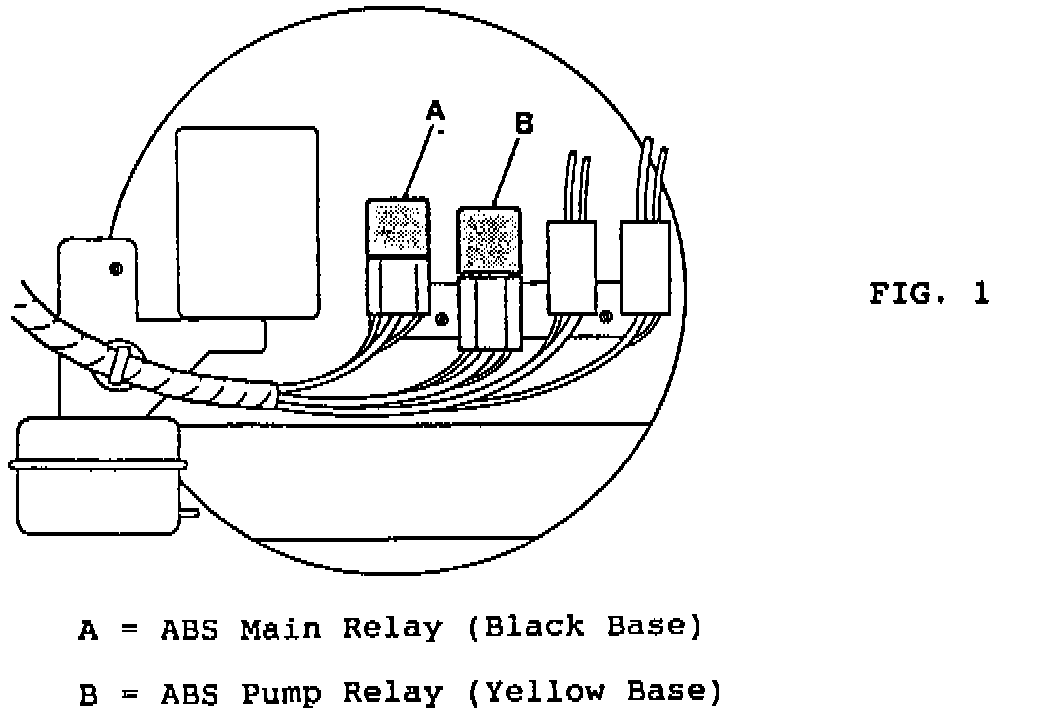

To prevent the above condition, the positions of the ABS Pump Relay and the Main relay have been reversed (Fig. 1) starting with VIN 693069.

If the condition occurs on pre-VIN 693069 vehicles, the relay assemblies should be relocated as indicated in Fig. 1.

WARRANTY INFORMATION:

Fault Code R.O. Number Time Allowance

7UTA 86.91.82 0.10 hrs.
