Home >> Jaguar >> 1994 >> Vanden Plas L6-4.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams

Electrical Diagrams


��:

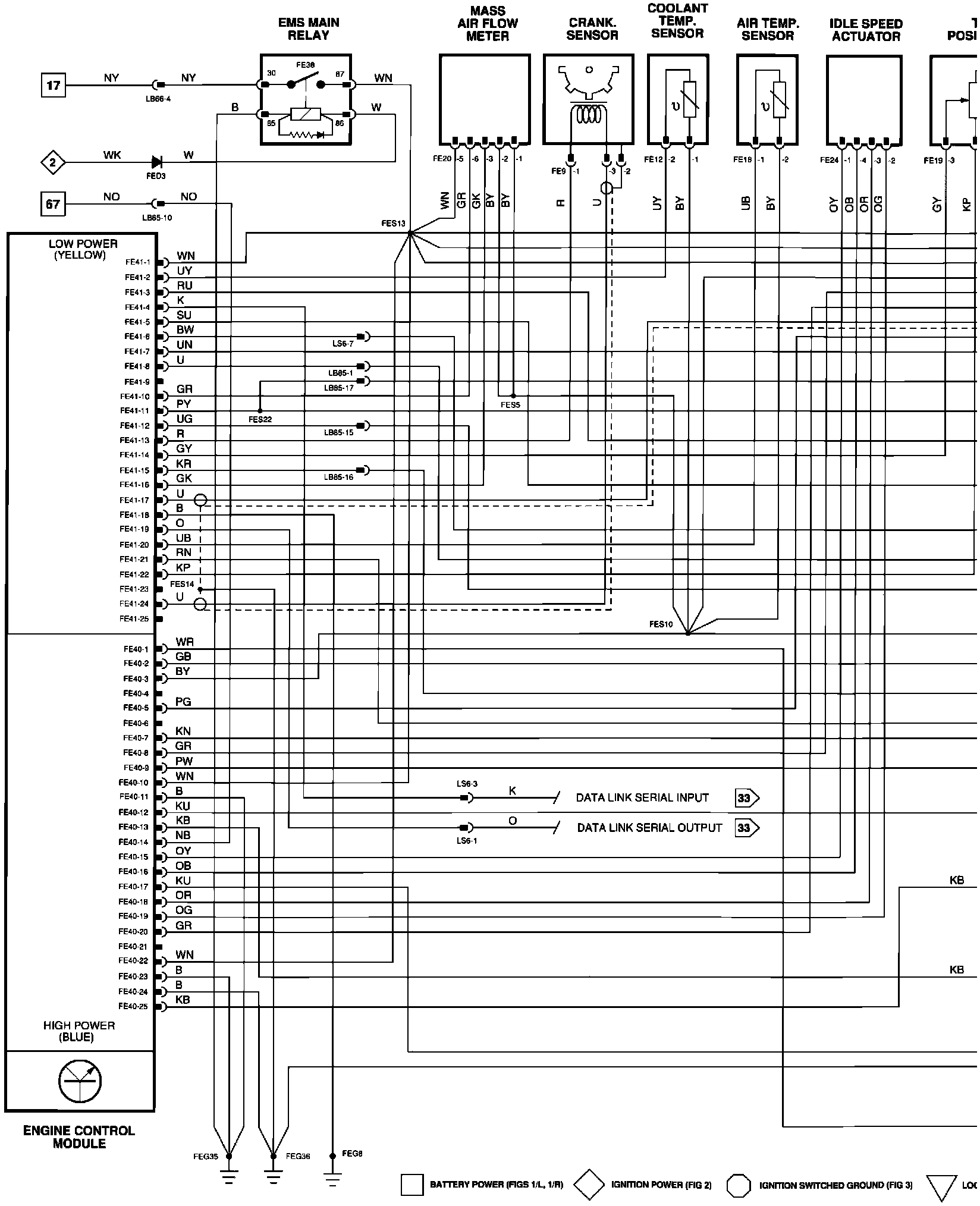

Wiring Diagram

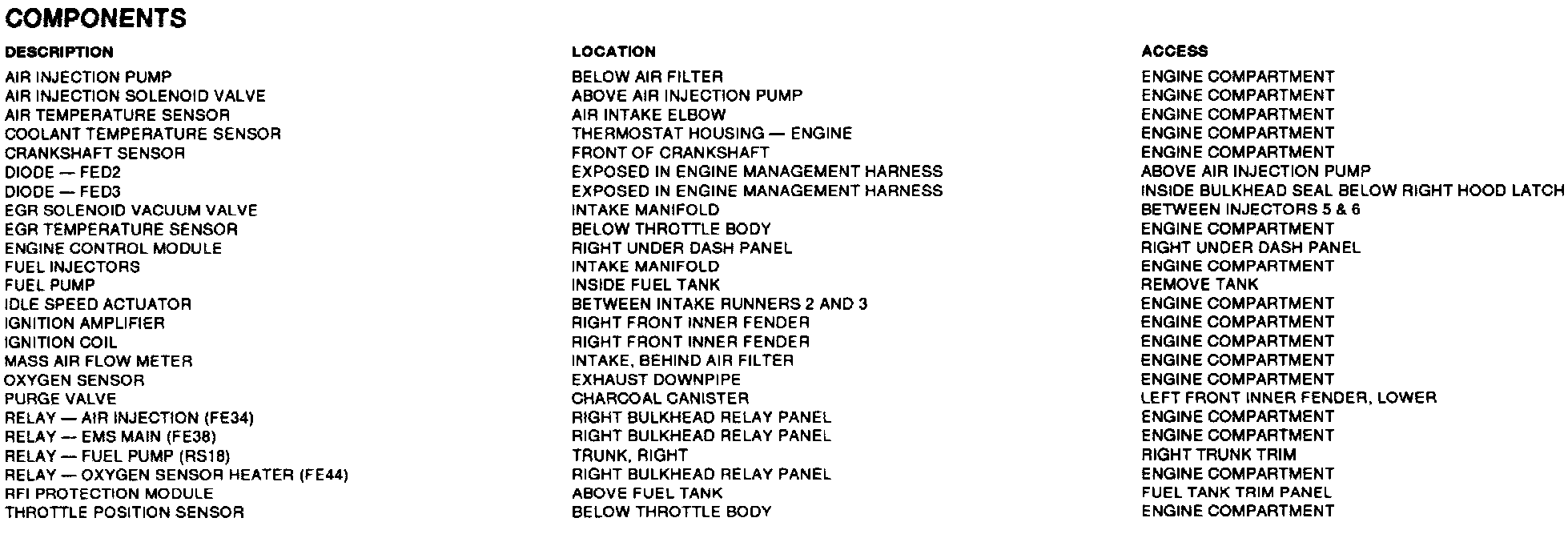

Components

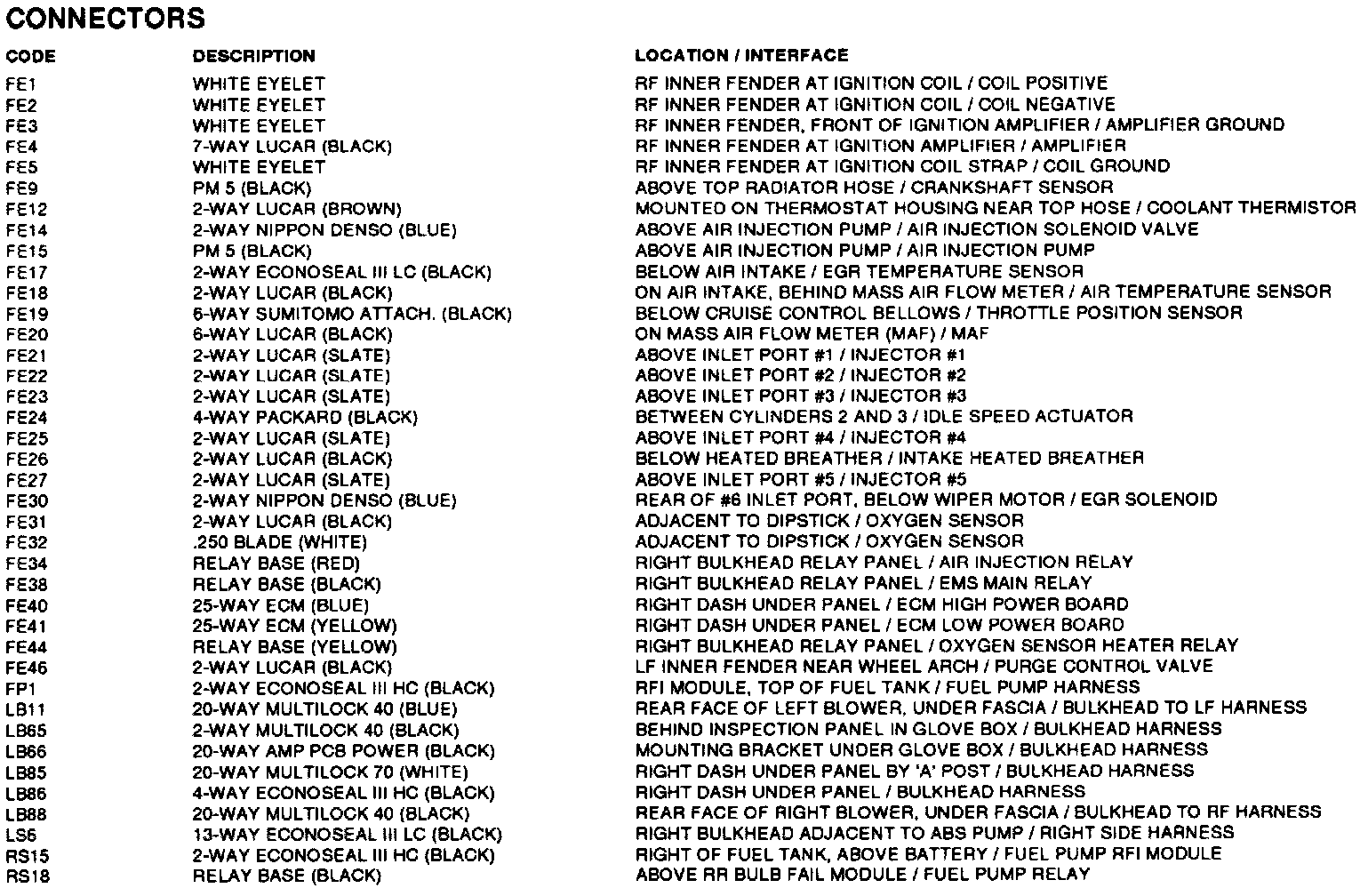

Connectors

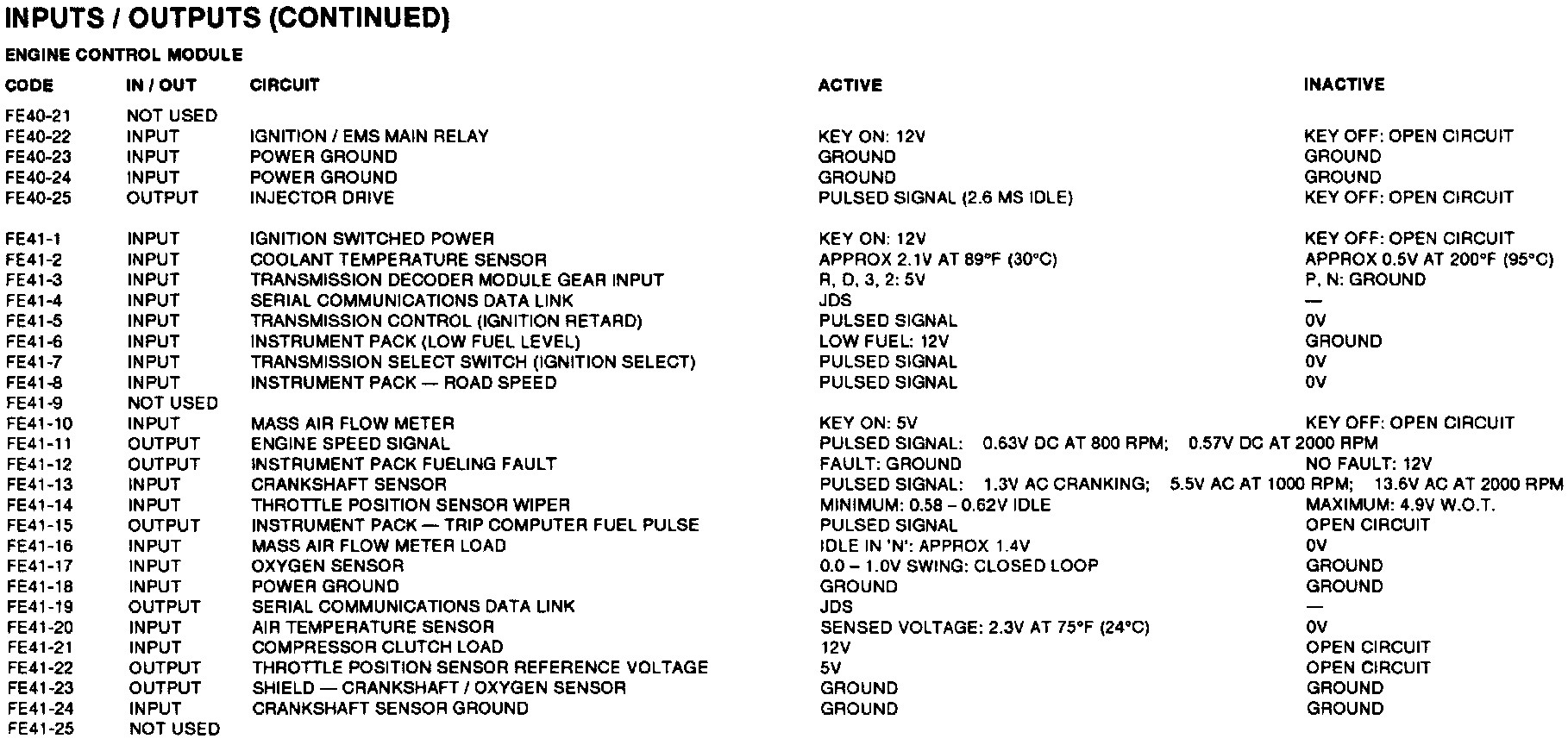

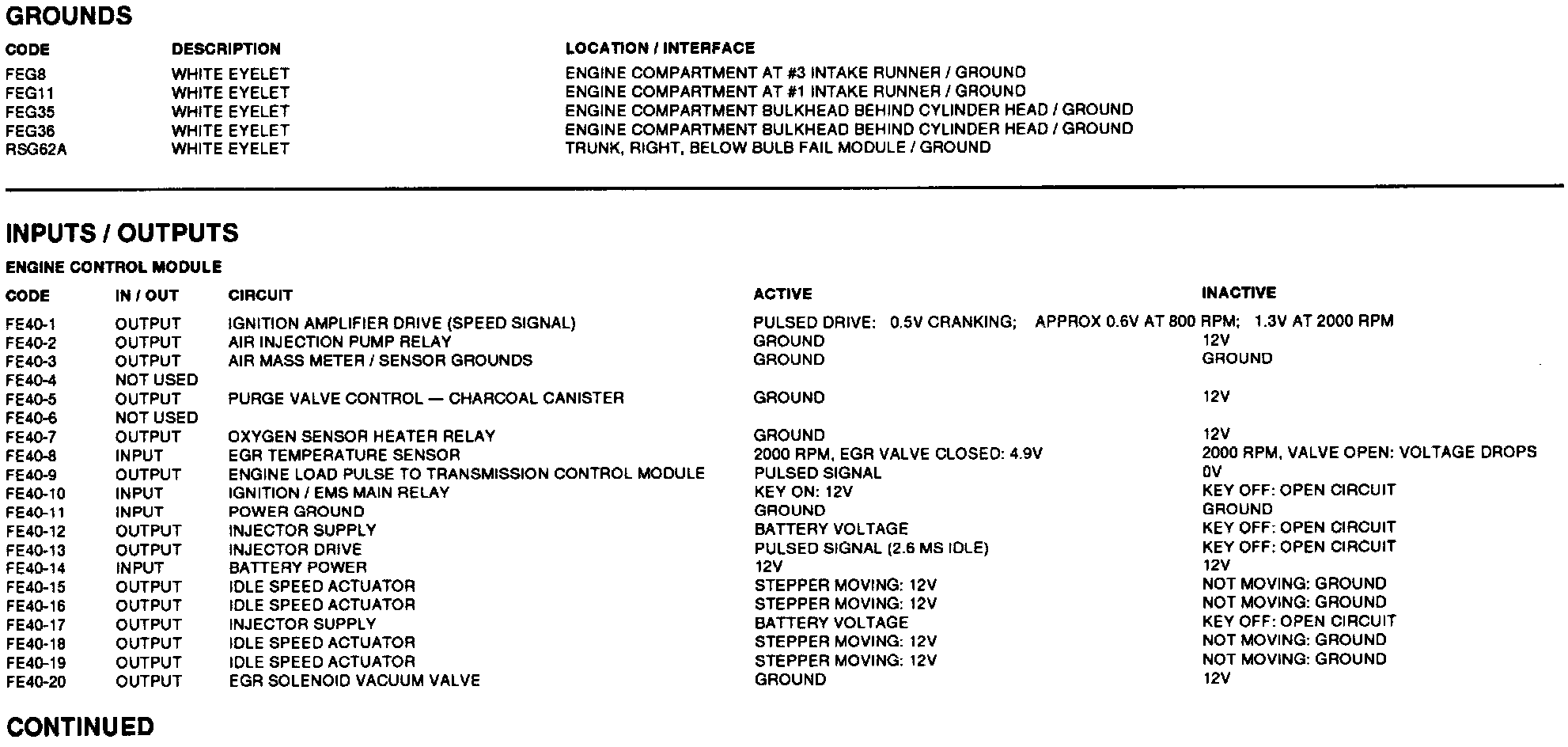

Grounds, inputs/outputs
