I4: Check ABS/TCCM To TCM Link (N/A Vehicles)

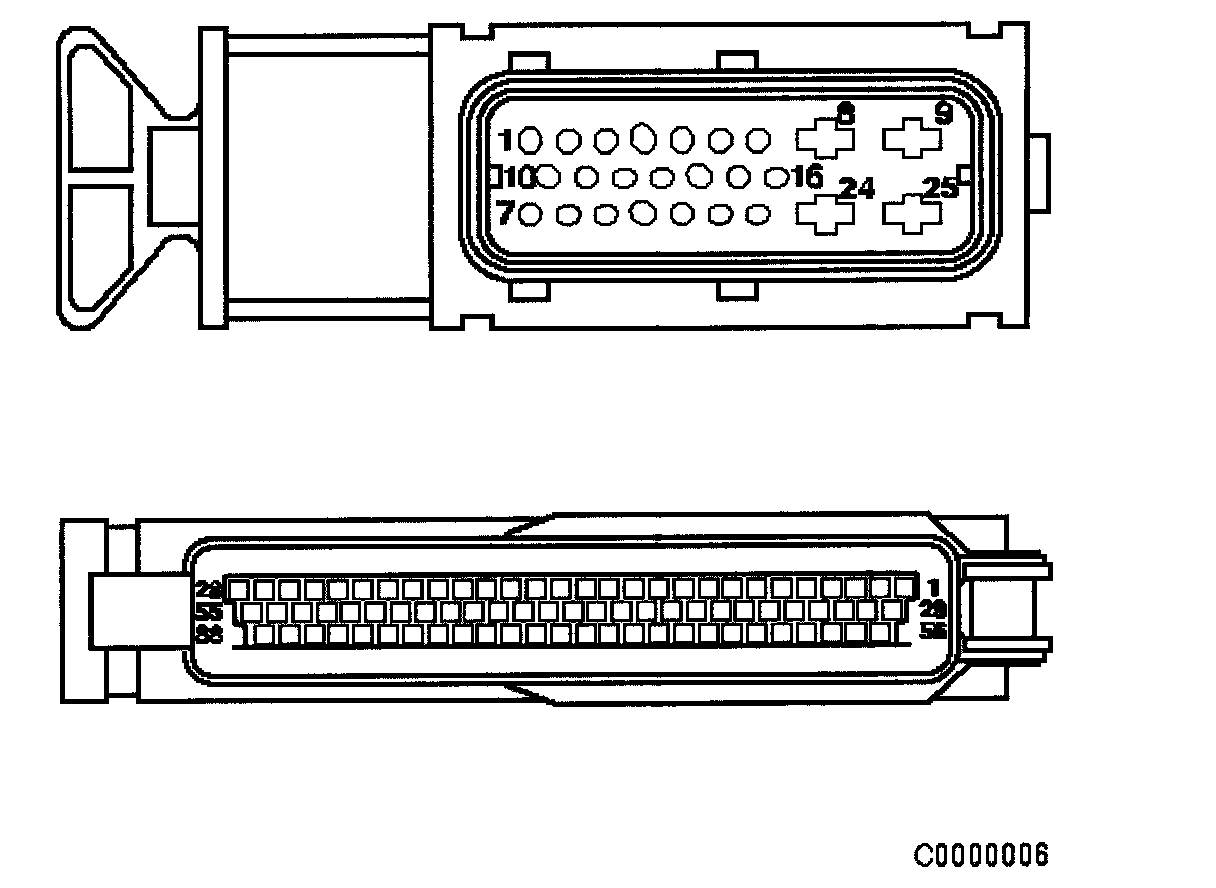

Locate connector LS027 (ABS/TCCM)
Behind headlamp assembly

Locate connector EM001
Adjacent to blower motor assembly

Locate connector EM007 (TCM)
Inside ECM housing

- Are pins LS027/005, LS027/015, EM001/006, EM001/007, EM007/082 or EM007/083 backed out or bent?
No
GO to I6 I6: Check ABS/TCCM To TCM Continuity (N/A Vehicles)
Yes
Repair pin fault and test the system for normal operation.
