Fig 04.2

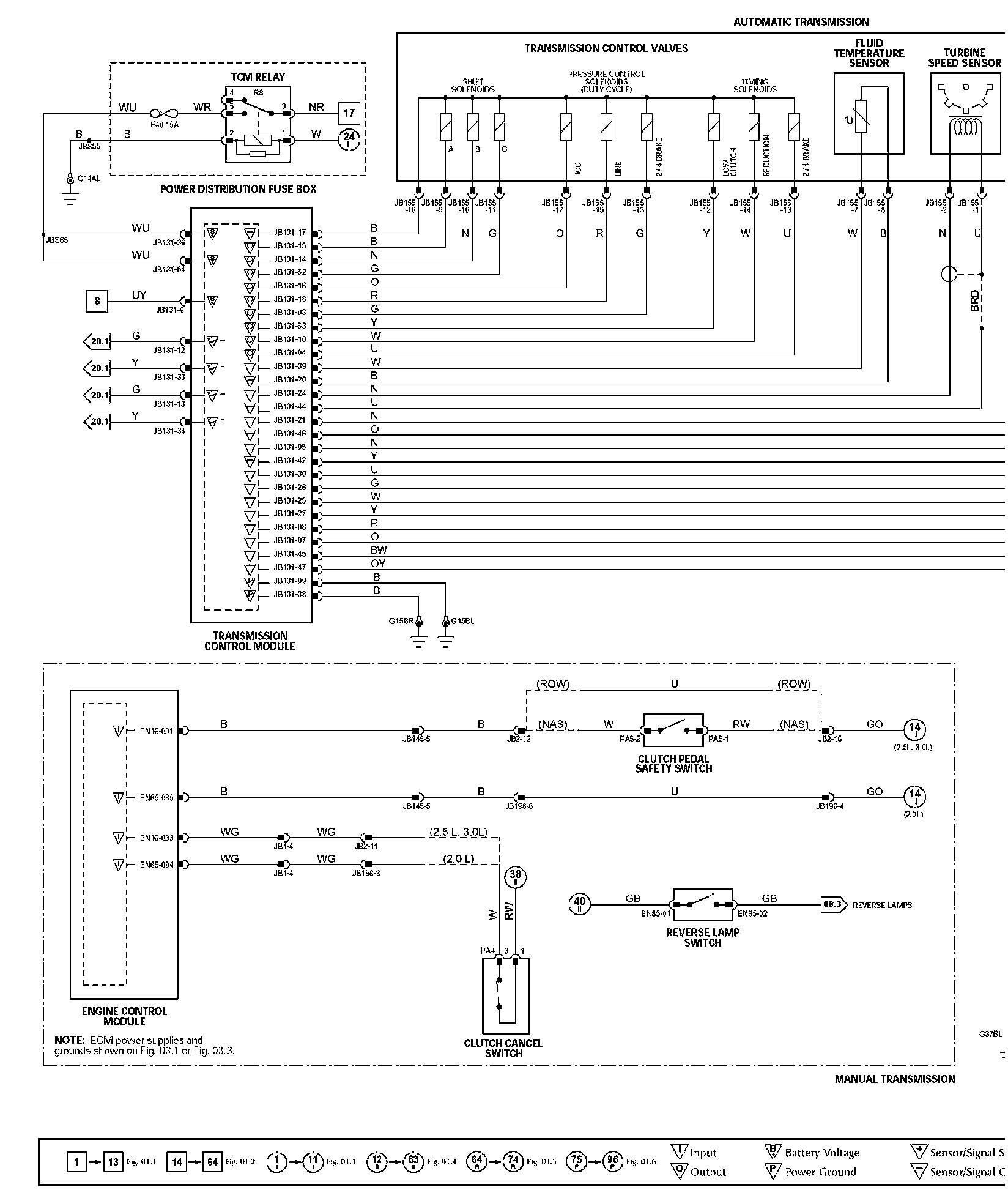

Automatic and Manual Transmissions: Later Production


4�eWiring Diagram:






Control Module Pin-Out Information:






Components: Automatic Transmission:






Components: Manual Transmission:






Harness In-line Connectors:






Grounds:
